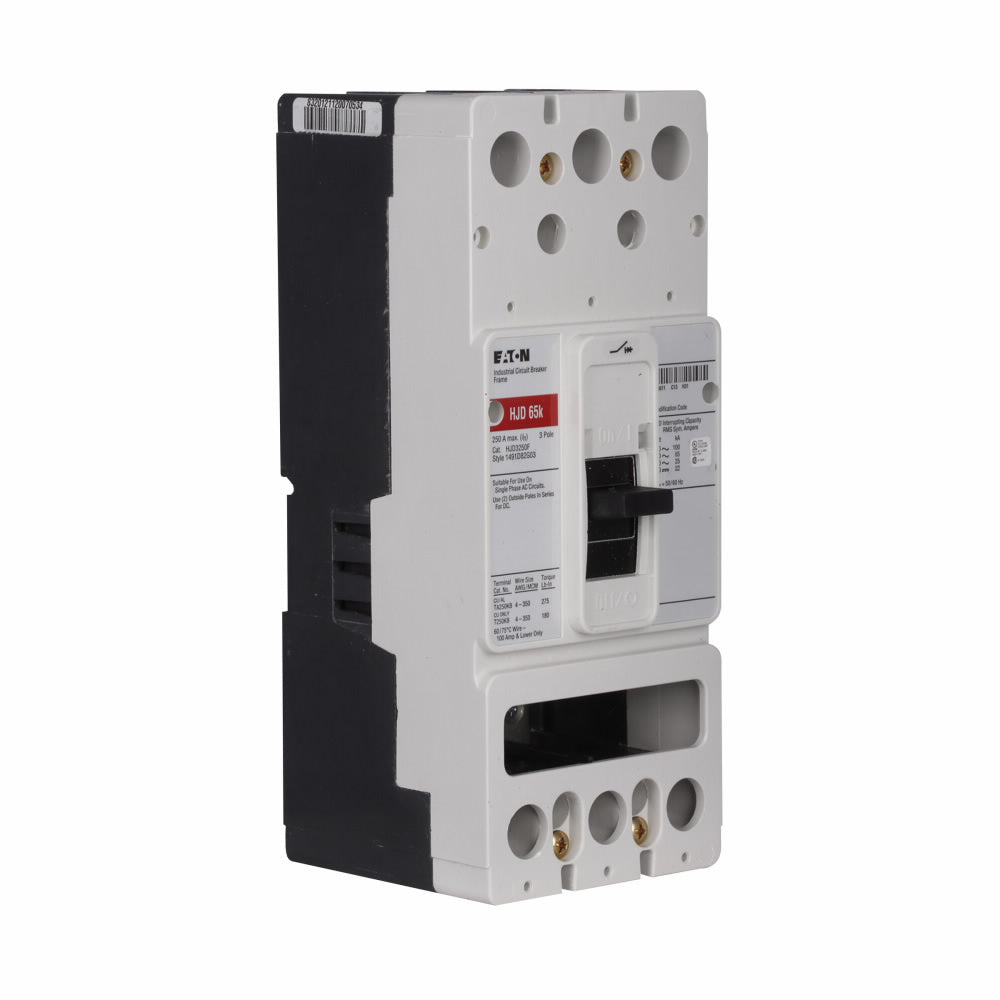

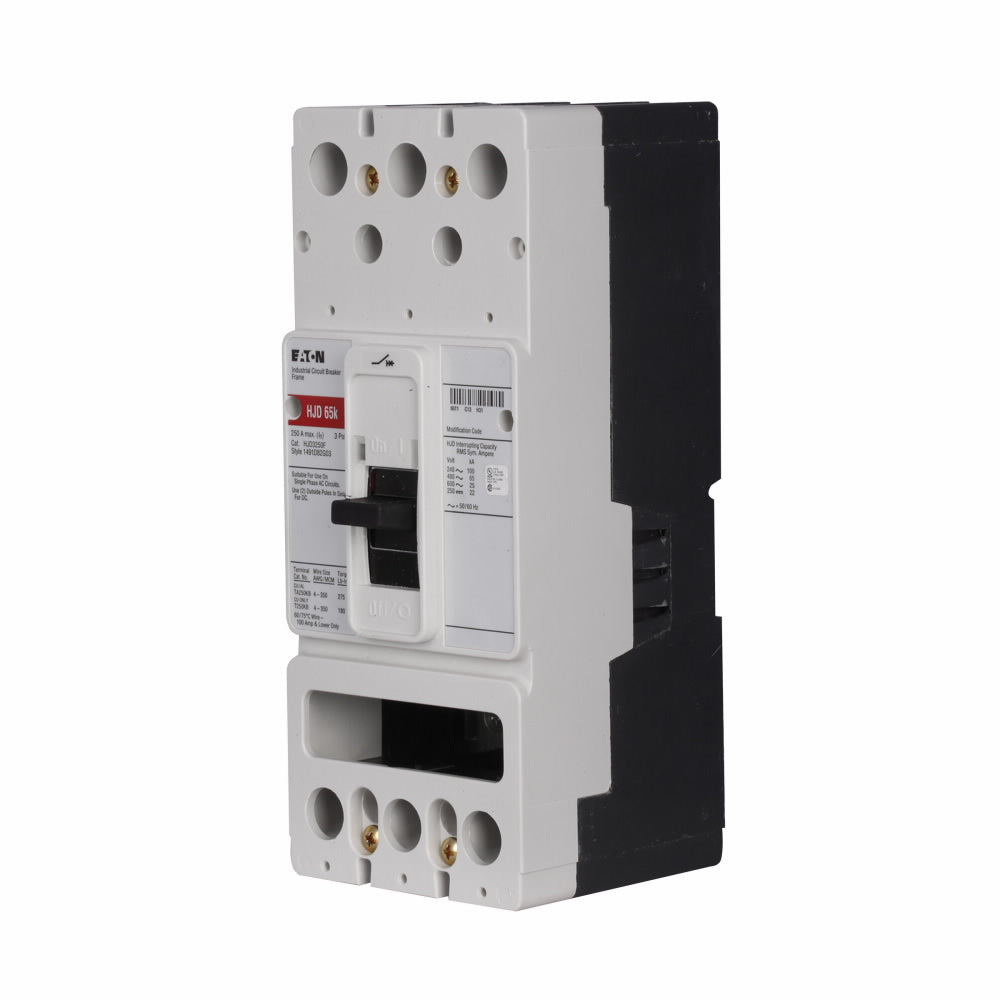

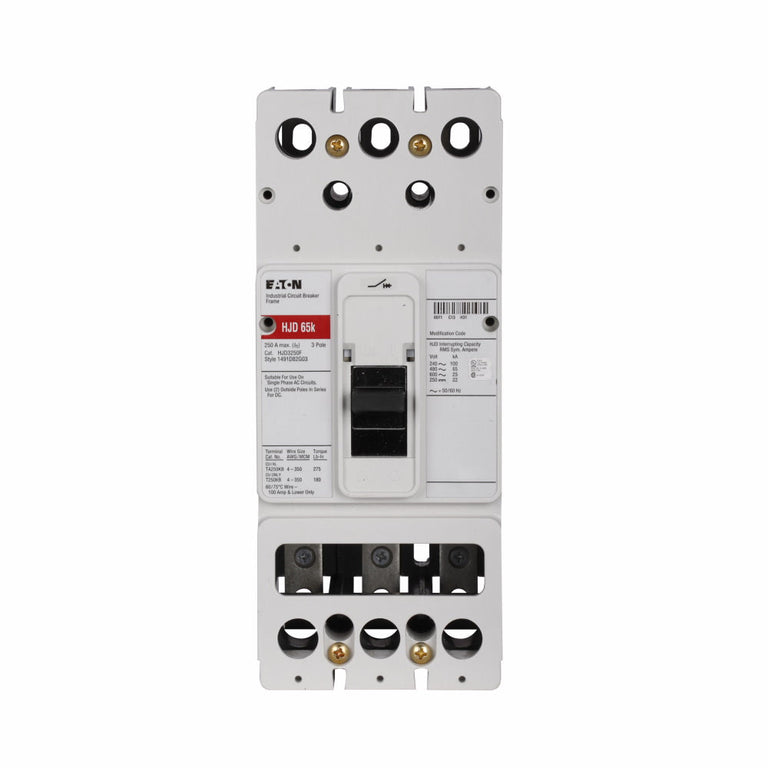

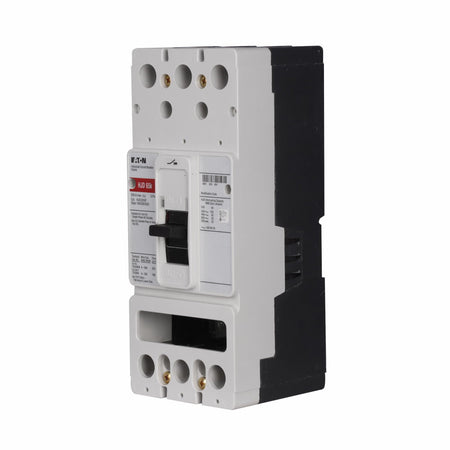

Eaton HJD3250F Molded Case Circuit Breaker Frame – 250A – 3-Pole – 600V – 65kA @ 480V – Bolt-On – Series C HJD

The Eaton HJD3250F is a 250A, 3-pole, 3-phase molded case circuit breaker frame from the Eaton / Cutler-Hammer Series C HJD family. This product is supplied as a frame only, rather than a complete circuit breaker.

The HJD3250F is rated for 600V with a 65kA interrupting rating at 480V and features a high interrupting capacity design. It uses a bolt-on configuration and is intended for compatible electrical distribution applications.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Series C
• Series: HJD
• Type: HJD
• Catalog No.: HJD3250F
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Mounting / Connection: Bolt-On
• Calibration Temperature: 40°C
• Product Configuration: Frame Only
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer
• Authenticity: Authentic Eaton Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJD3250F
• Catalog Number: HJD3250F
• Product Family: Eaton Series C Molded Case Circuit Breaker Frames
• Series: HJD
• Type: HJD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Model: HJD3250F
• Configuration: 3-Pole, 250A
• Product Status: Frame Only
• upc:786679512067

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C HJD electrical distribution equipment and applicable breaker components. The HJD3250F is supplied as a frame only and should not be treated as a complete circuit breaker assembly.

Always verify the required trip unit, terminals/lugs, accessories, panelboard or electrical equipment model, approved component combinations, system voltage, available fault current, pole configuration, mounting arrangement, and installation requirements before assembly or installation.

Certifications:

• Series C HJD
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Frame
• Bolt-On Configuration
• 40°C Calibration
• Frame Only
• Genuine Eaton / Cutler-Hammer Product
