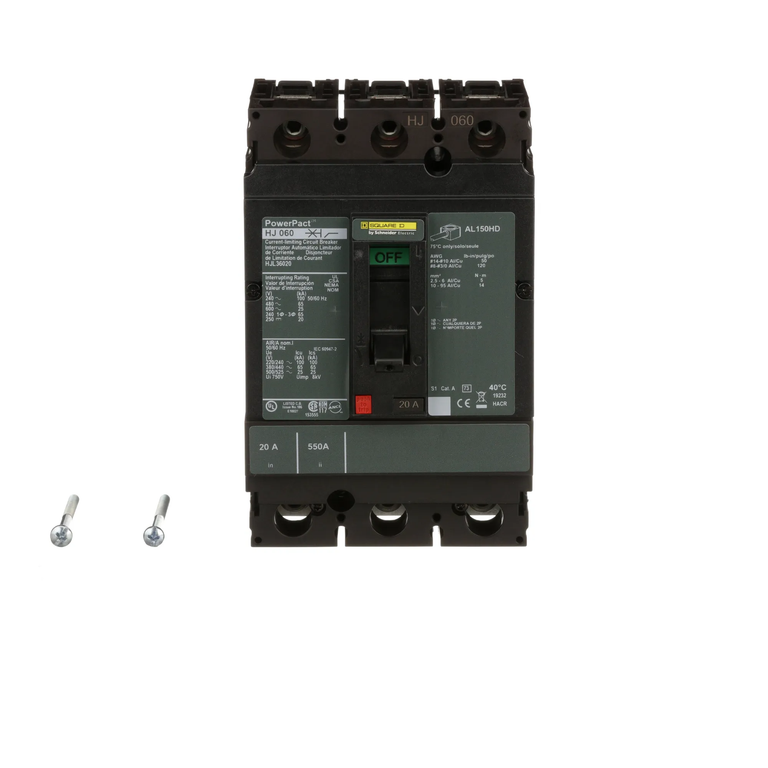

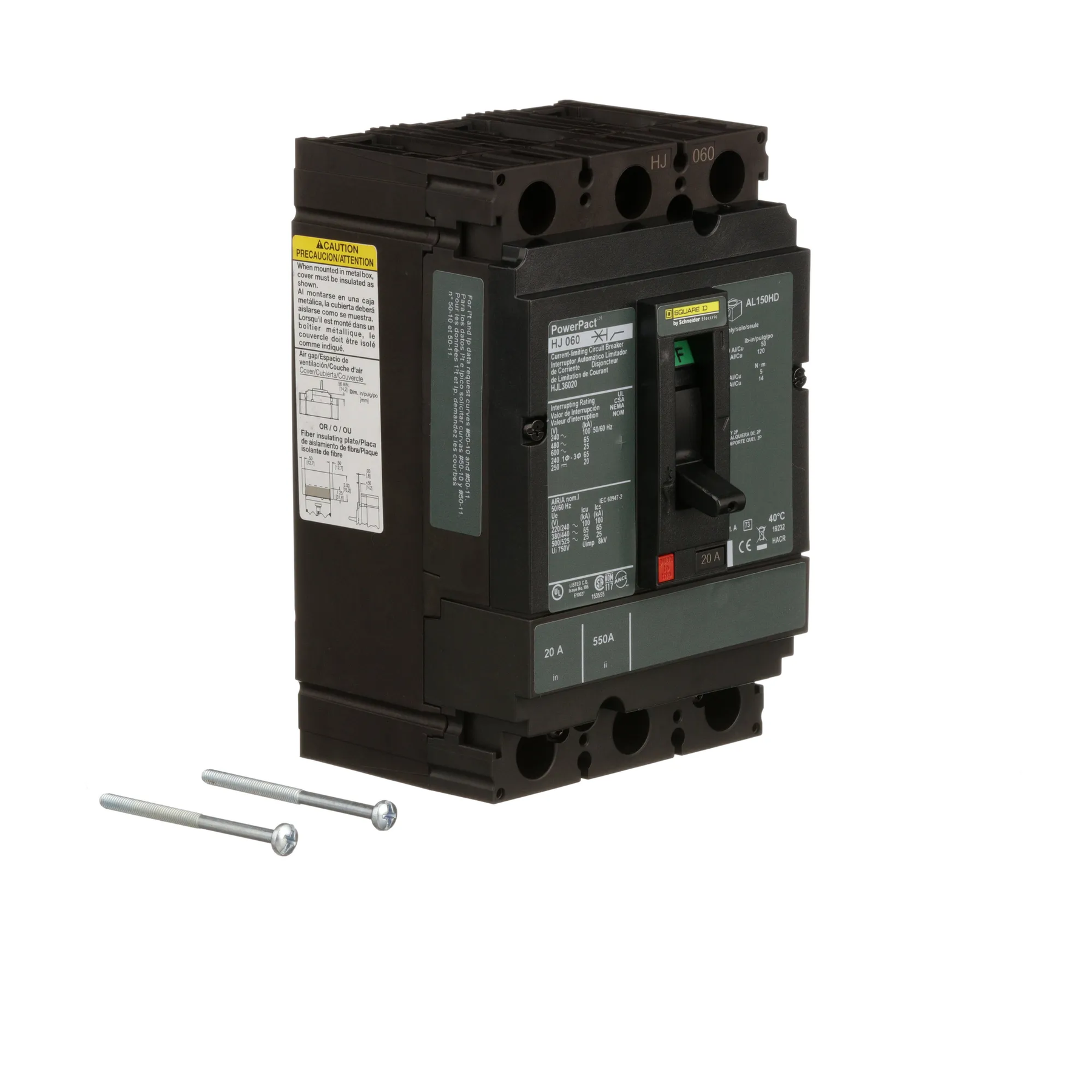

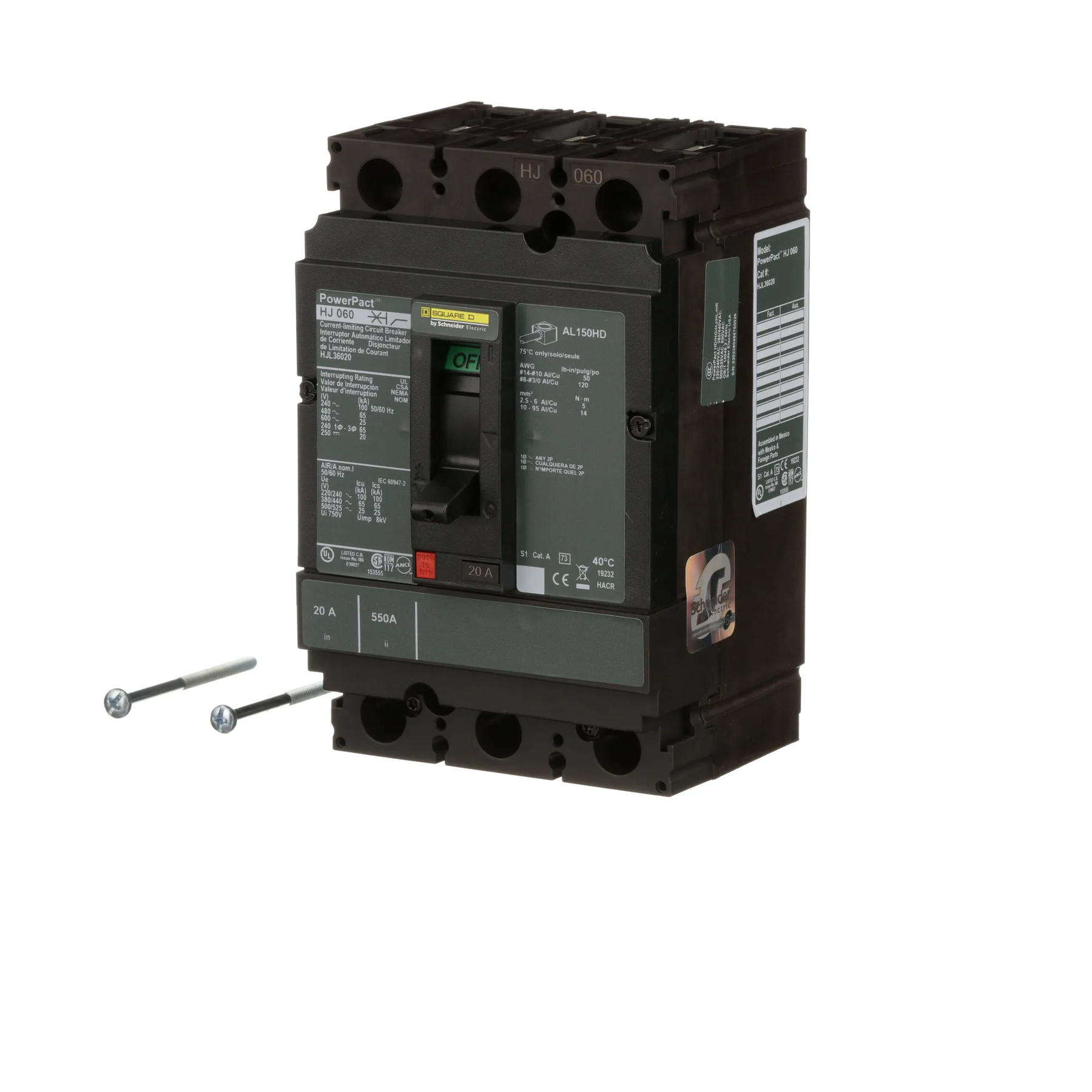

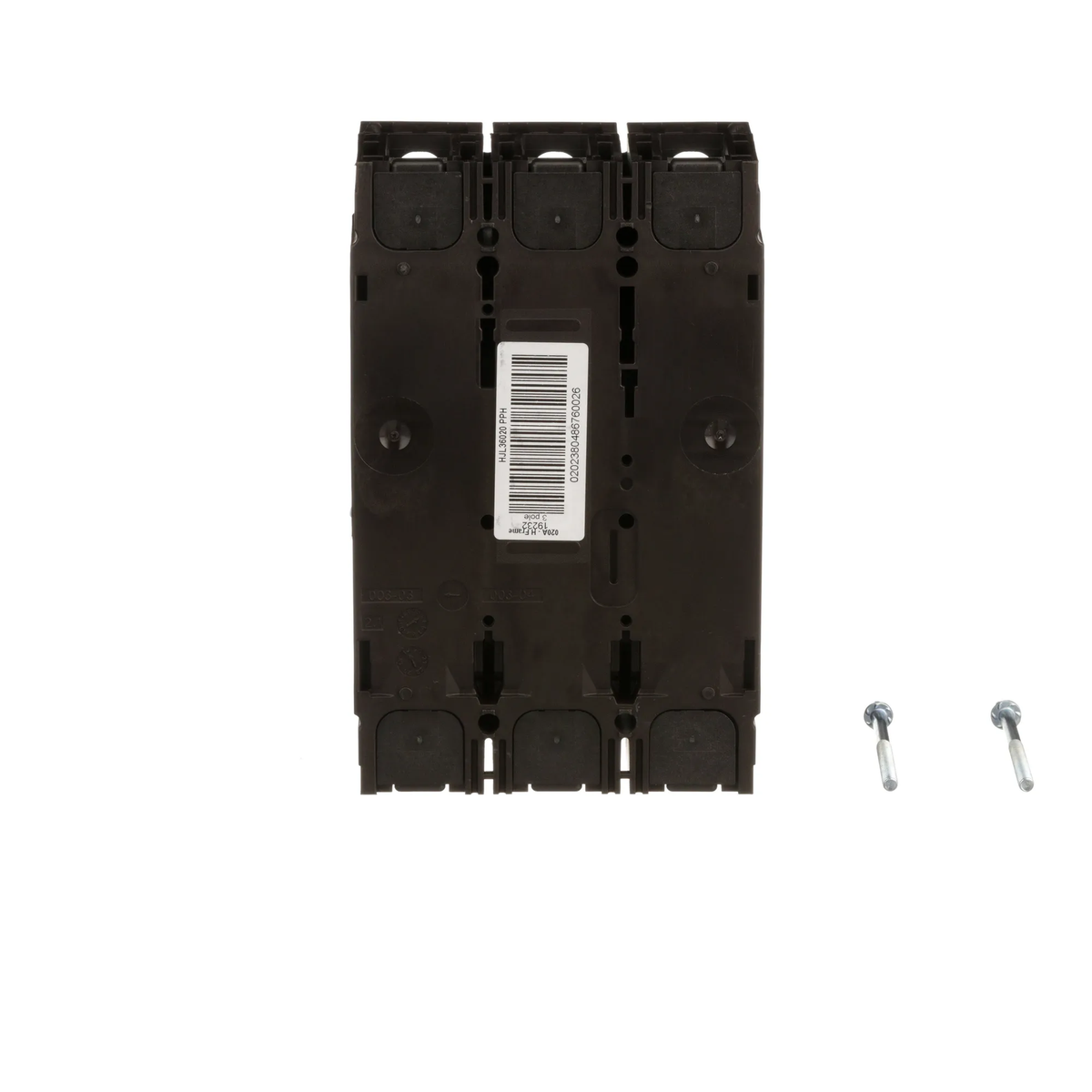

Square D HJL36020 Molded Case Circuit Breaker – 20A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – PowerPact HJL Series

The Square D HJL36020 is a 20A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type HJL Series. It is designed for compatible electrical distribution applications and features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The HJL36020 is rated for 600V and provides a 65kA interrupting rating at 480V. It features current-limiting construction, a feed-thru configuration, and line- and load-side lug terminals. The breaker is supplied as a complete breaker with a non-interchangeable trip and is suitable for reverse-fed applications. It is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric

• Product Type: Molded Case Circuit Breaker

• Product Family: PowerPact

• Series: HJL

• Type: HJL

• Catalog No.: HJL36020

• Current Rating: 20A

• Number of Poles: 3-Pole

• Phase: 3-Phase

• Voltage Rating: 600V

• Interrupting Rating: 65kA @ 480V

• Protection Type: Thermal-Magnetic

• Trip Type: Non-Interchangeable

• Trip Functions: Long-Time and Instantaneous (LI)

• Current Limiting: Current Limiting

• Breaker Configuration: Complete Breaker

• Mounting / Connection: Feed-Thru

• Terminal Type: Line-Side and Load-Side Lug Terminals

• Reverse Feed: Suitable for Reverse-Fed Applications

• Application: Electrical Distribution and Overcurrent Protection

• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJL36020

• Catalog Number: HJL36020

• Model: HJL36020

• Product Family: Square D PowerPact Molded Case Circuit Breakers

• Series: HJL

• Type: HJL

• Brand: Square D

• Manufacturer: Schneider Electric

• Product Type: Molded Case Circuit Breaker

• Breaker Configuration: 3-Pole, 20A

• Trip Configuration: Non-Interchangeable LI

• Current Rating: 20A

• UPC: 785901955955

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact HJL Series electrical distribution equipment that accepts HJL Series molded case circuit breakers. The HJL36020 provides 20A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features current-limiting construction, a 65kA interrupting rating at 480V, feed-thru configuration, line- and load-side lug terminals, and a non-interchangeable LI trip. It is also suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, reverse-feed requirements, and installation requirements before installation.

Certifications:

• UL Listed

• PowerPact HJL Series

• 20A Rated

• 3-Pole / 3-Phase

• 600V Rated

• 65kA @ 480V Interrupting Rating

• Current Limiting

• Thermal-Magnetic Protection

• Long-Time and Instantaneous (LI) Trip Functions

• Non-Interchangeable Trip

• Feed-Thru Configuration

• Line- and Load-Side Lug Terminals

• Suitable for Reverse-Fed Applications

• Complete Breaker
