Square D HJL36050M72 Molded Case Circuit Breaker – 50A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – PowerPact HJL Series

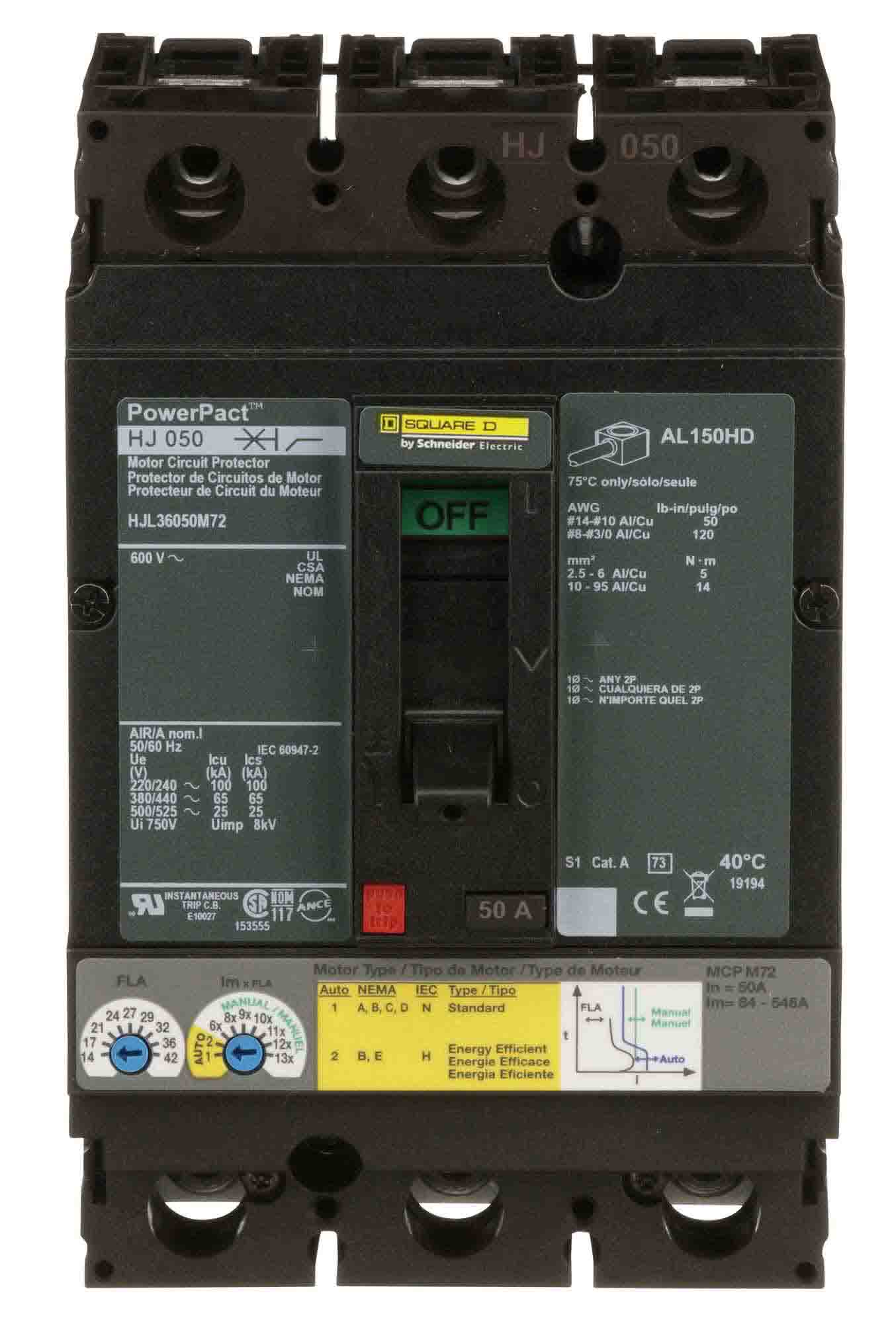

The Square D HJL36050M72 is a 50A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Square D PowerPact HJL Series. It provides magnetic-only, instantaneous protection for compatible motor circuit applications.

The breaker is rated for 600V and provides a 65kA interrupting rating at 480V. It features a current-limiting design, feed-thru configuration, and line-side and load-side lug terminals. The magnetic trip range is 84–546A.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker / Motor Circuit Protector
• Product Family: PowerPact
• Series: HJL
• Type: HJL
• Catalog No.: HJL36050M72
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I)
• Trip Type: Magnetic-Only
• Current Limiting: Current Limiting
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Magnetic Range: 84–546A
• Product Type: Motor Circuit Protector (MCP)
• Application: Motor Circuit Protection
• Reverse Feed: Suitable for Reverse-Fed Applications
• Brand: Square D

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJL36050M72
• Catalog Number: HJL36050M72
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HJL
• Type: HJL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Model: HJL36050M72
• Breaker Configuration: 3-Pole, 50A
• Trip Configuration: Instantaneous Protection Only
• UPC:785901591146

Compatibility:

Designed for use with compatible Square D PowerPact HJL Series electrical distribution equipment that accepts this type of molded case motor circuit protector.

The HJL36050M72 provides 50A, 3-pole magnetic-only protection with an 84–546A magnetic range and is suitable for compatible 600V motor circuit applications. It includes feed-thru connections and line-side and load-side lug terminals and is suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker/MCP type, motor application, system voltage, available fault current, magnetic trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
