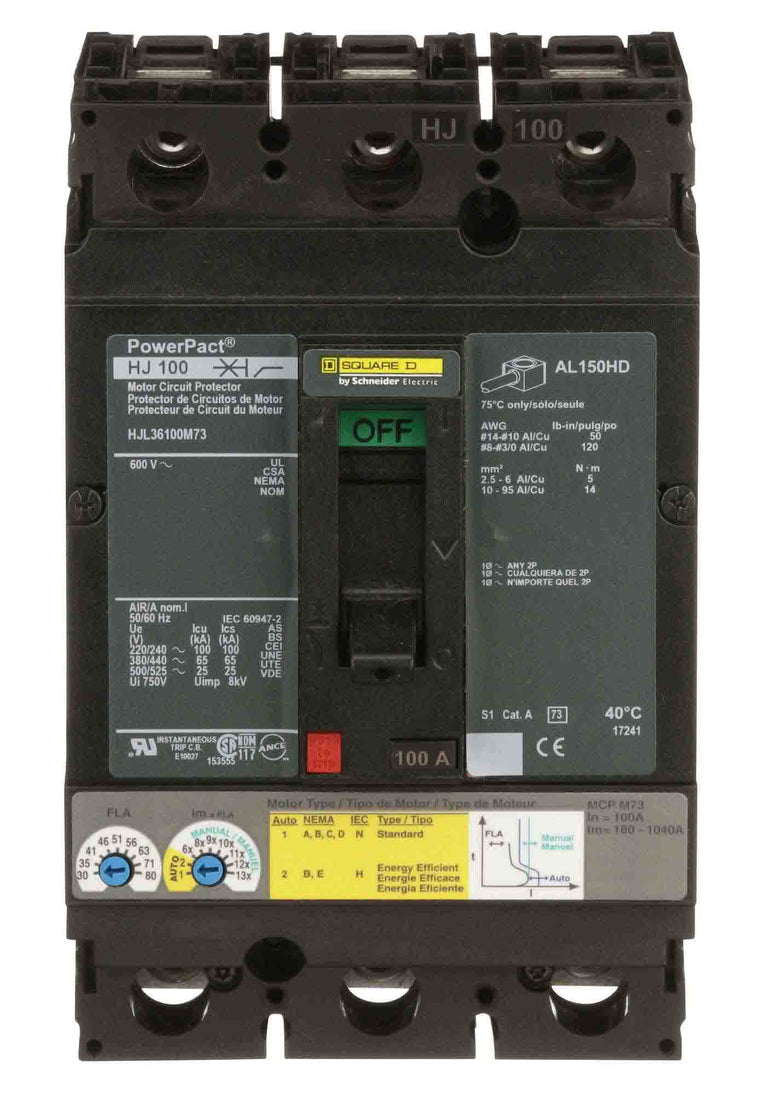

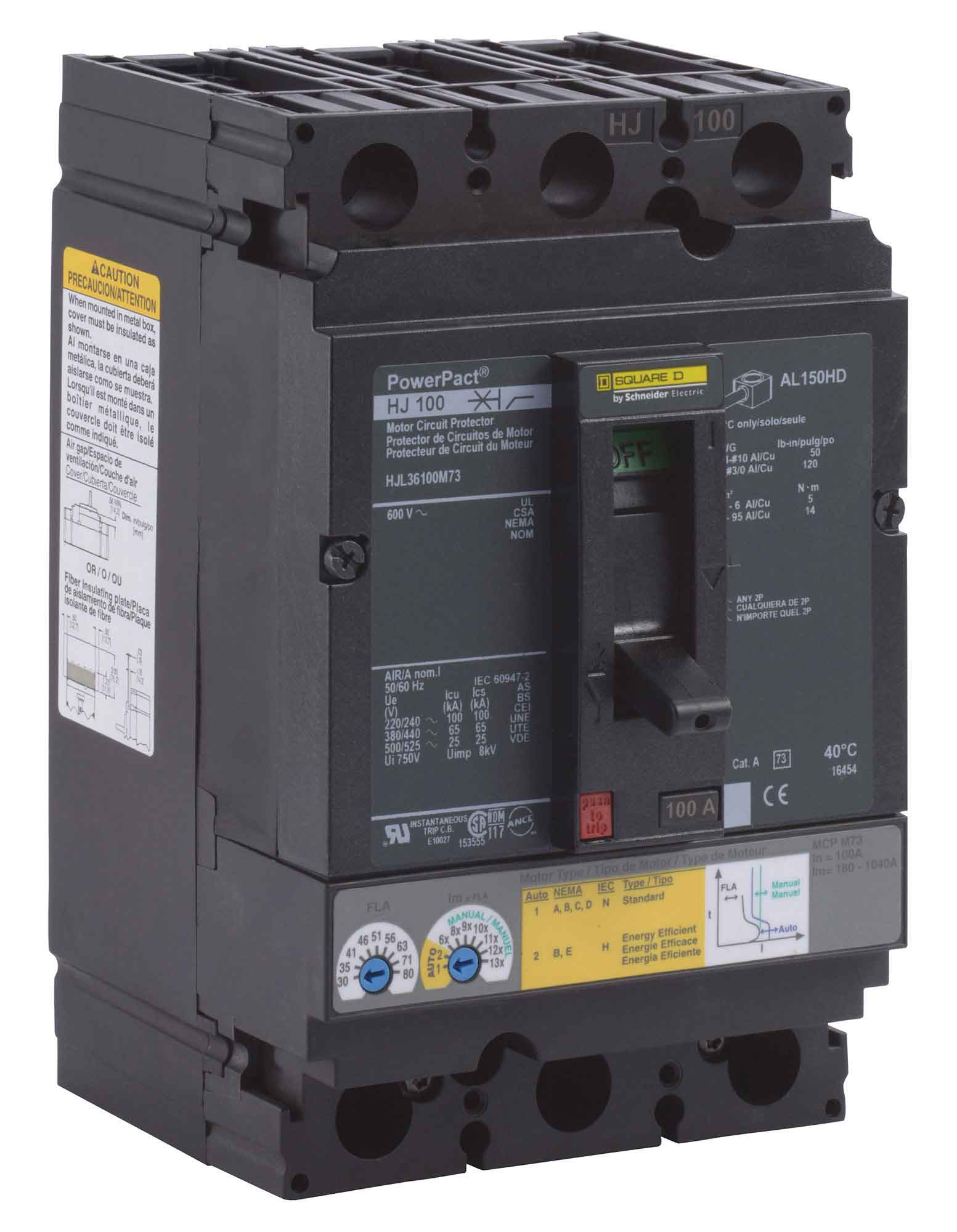

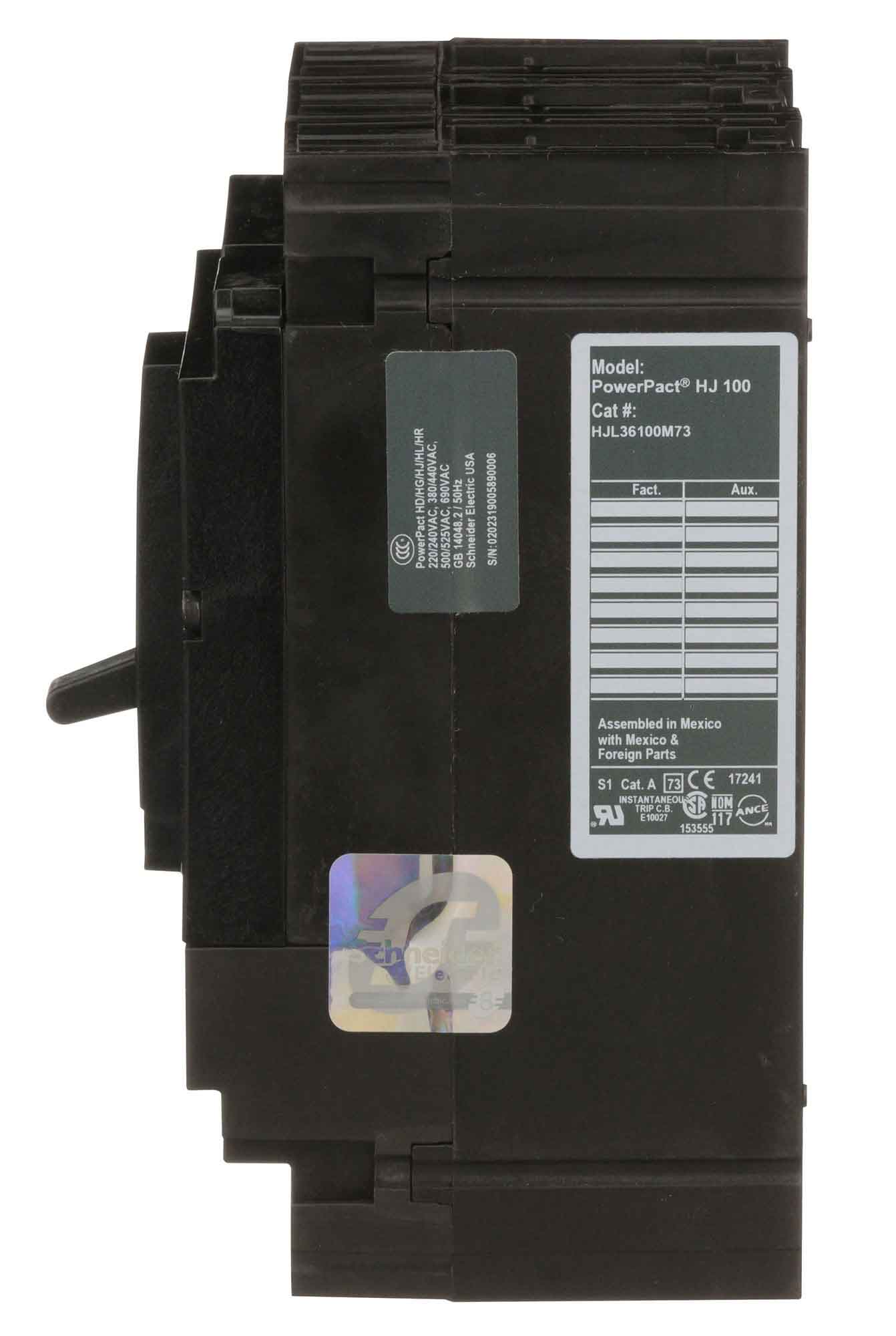

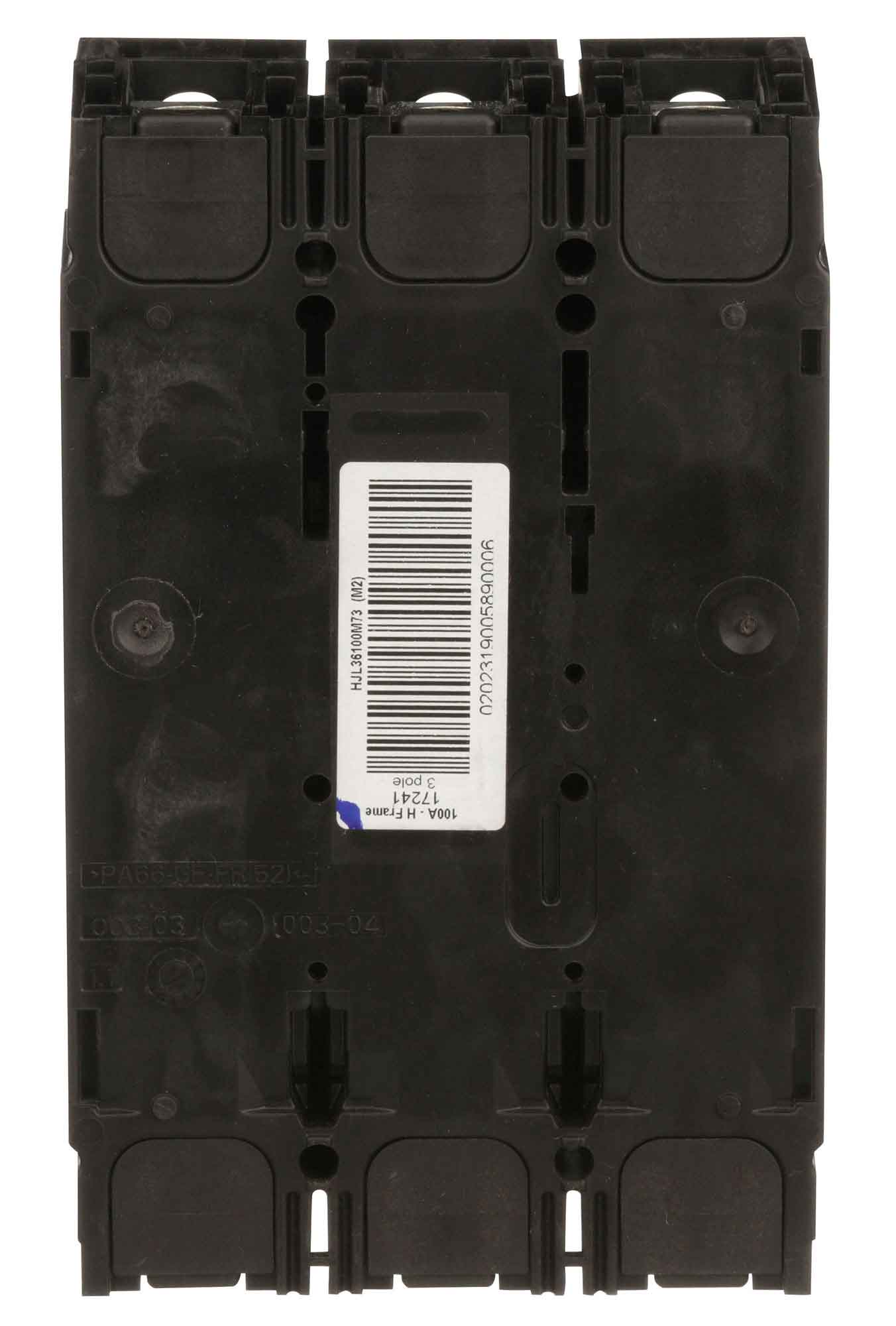

Square D HJL36100M73 Molded Case Circuit Protector – 100A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – PowerPact HJL

The Square D HJL36100M73 is a 100A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Square D / Schneider Electric PowerPact Type HJL Series. It is designed for motor circuit protection applications and features magnetic-only, instantaneous protection.

The HJL36100M73 is rated for 600V and provides a 65kA interrupting rating at 480V with current-limiting construction. It features a feed-thru configuration, line- and load-side lug terminals, and is suitable for reverse-fed applications. The MCP has a magnetic range of 180–1040A.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Motor Circuit Protector (MCP)
• Product Family: PowerPact
• Series: HJL
• Type: HJL
• Catalog No.: HJL36100M73
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: Not specified
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Only
• Trip Type: Not specified
• Magnetic Range: 180–1040A
• Current Limiting: Current Limiting
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Motor Circuit Protection
• Breaker Type: Motor Circuit Protector (MCP)
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJL36100M73
• Catalog Number: HJL36100M73
• Model: HJL36100M73
• Product Family: Square D PowerPact Molded Case Circuit Protectors
• Series: HJL
• Type: HJL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Motor Circuit Protector
• Breaker Configuration: 3-Pole, 100A
• Trip Function: Instantaneous Only
• Protection Type: Magnetic Only
• Magnetic Range: 180–1040A
• UPC:785901647706

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact HJL Series motor circuit protection and electrical distribution equipment that accepts HJL Series MCP devices. The HJL36100M73 provides 100A, 3-pole magnetic-only motor circuit protection for compatible 600V applications.

The MCP features current-limiting construction, a 180–1040A magnetic range, feed-thru configuration, and line- and load-side lug terminals. It is also identified as suitable for reverse-fed applications. Always verify the specific panelboard or electrical equipment model, approved MCP type, motor application, system voltage, available fault current, magnetic trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact HJL Series
• 100A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• Current Limiting
• Magnetic-Only Protection
• Instantaneous (I) Protection Only
• 180–1040A Magnetic Range
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• Suitable for Reverse-Fed Applications
• Motor Circuit Protector (MCP)
