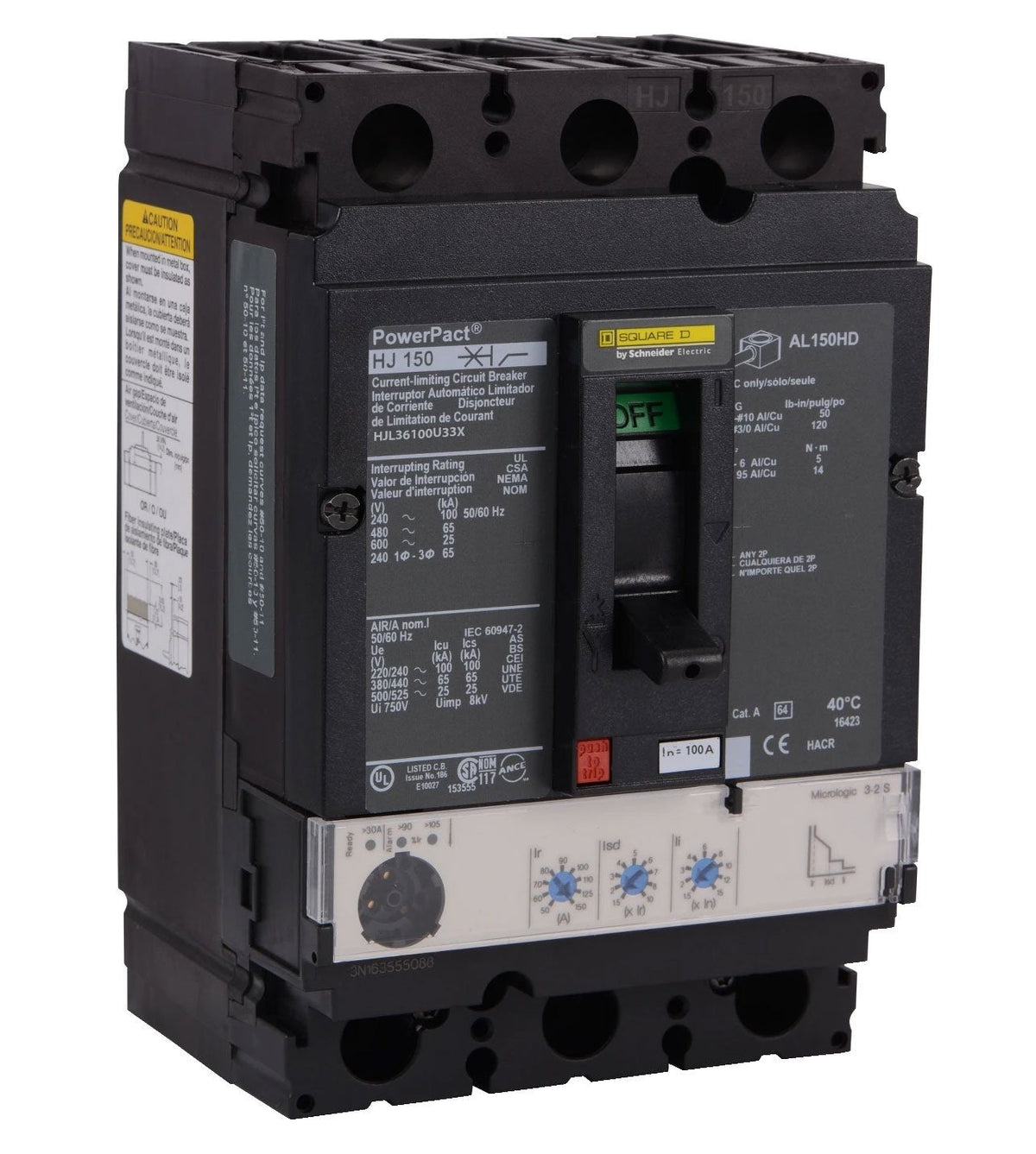

Square D HJL36100U33X 100 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Electronic LSI Trip – PowerPact HJL

The Square D HJL36100U33X is a 100 Amp, 3-pole, 3-phase molded case circuit breaker from the Schneider Electric / Square D PowerPact Series, Type HJL. It is rated for 600 V and provides interrupting ratings of 100 kA at 240 V, 65 kA at 480 V, and 25 kA at 600 V, with current-limiting protection.

The breaker features a solid-state electronic Micrologic trip unit with a standard non-interchangeable configuration and LSI (Long-Time, Short-Time, and Instantaneous) trip functions. It includes feed-thru connections and line- and load-side lug terminals. The breaker is UL listed, suitable for reverse-fed applications, and can also be used in 2-pole applications.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact
• Type: HJL
• Catalog Number / MPN: HJL36100U33X
• Primary Rating: 100 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating at 240 V: 100 kA
• Interrupting Rating at 480 V: 65 kA
• Interrupting Rating at 600 V: 25 kA
• Interrupting Capacity: Current Limiting
• Trip Type: Solid-State Electronic
• Trip Unit: Micrologic Standard, Non-Interchangeable
• Trip Functions: LSI – Long-Time, Short-Time, and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Reverse-Feed Suitability: Suitable for Reverse-Fed Applications
• Additional Configuration: Can Be Used for 2-Pole Applications
• UL Listing: UL Listed

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: HJL36100U33X
• Series: PowerPact
• Type: HJL
• Current Rating: 100 A
• Pole Count: 3 Pole
• Product Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Micrologic Standard, Non-Interchangeable
• Trip Functions: LSI – Long-Time, Short-Time, and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:785901852476

Compatibility

The Square D HJL36100U33X is intended for compatible Schneider Electric / Square D PowerPact HJL electrical distribution applications, including suitable reverse-fed installations and supported 2-pole applications.

Certifications

• UL Listed
• Reverse-Feed Suitability: UL listed and suitable for reverse-fed applications.
