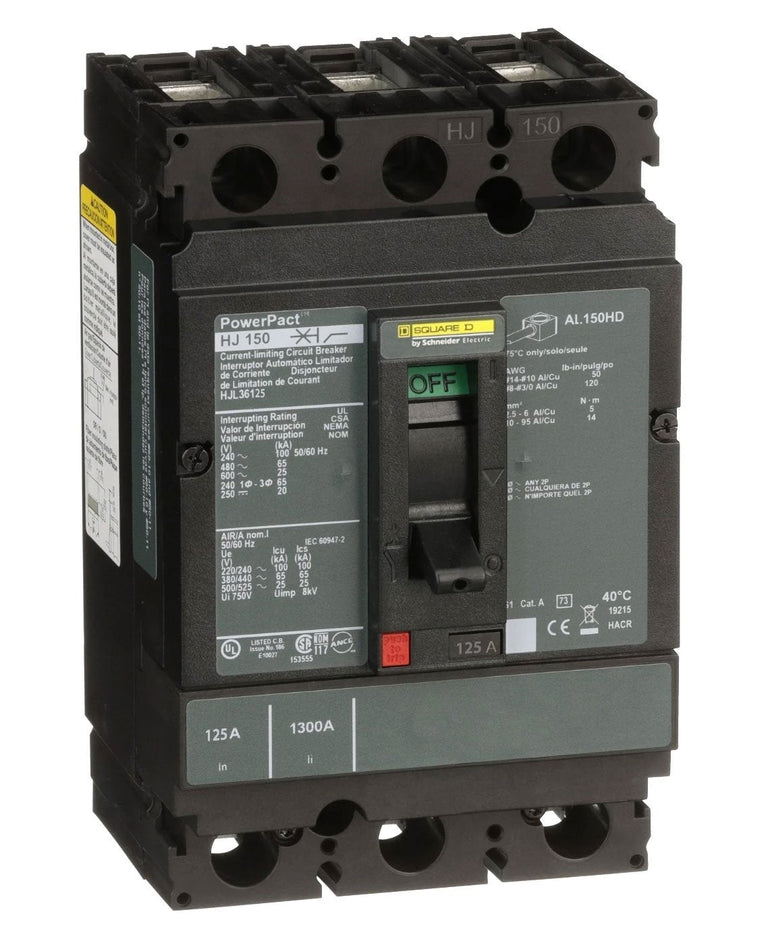

Square D HJL36125 Molded Case Circuit Breaker – 125A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – PowerPact HJL Series

The Square D HJL36125 is a 125A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type HJL Series. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 600V and provides a 65kA interrupting rating at 480V with current-limiting construction. It features a feed-thru configuration, line- and load-side lug terminals, and is suitable for reverse-fed applications. The breaker is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HJL
• Type: HJL
• Catalog No.: HJL36125
• Current Rating: 125A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Current Limiting: Current Limiting
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJL36125
• Catalog Number: HJL36125
• Model: HJL36125
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HJL
• Type: HJL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 125A
• UPC:785901955795

Compatibility:

Designed for use with compatible Square D PowerPact HJL Series electrical distribution equipment that accepts HJL Series molded case circuit breakers. The HJL36125 provides 125A, 3-pole thermal-magnetic protection for compatible 600V electrical distribution applications.

The breaker features current-limiting construction, non-interchangeable LI trip functions, feed-thru configuration, and line- and load-side lug terminals. It is also suitable for reverse-fed applications as specified.

Certifications:

• UL Listed
