Square D HJL36150U33X 150 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 25 kA@600 V – Feed-Thru – PowerPact HJL Series

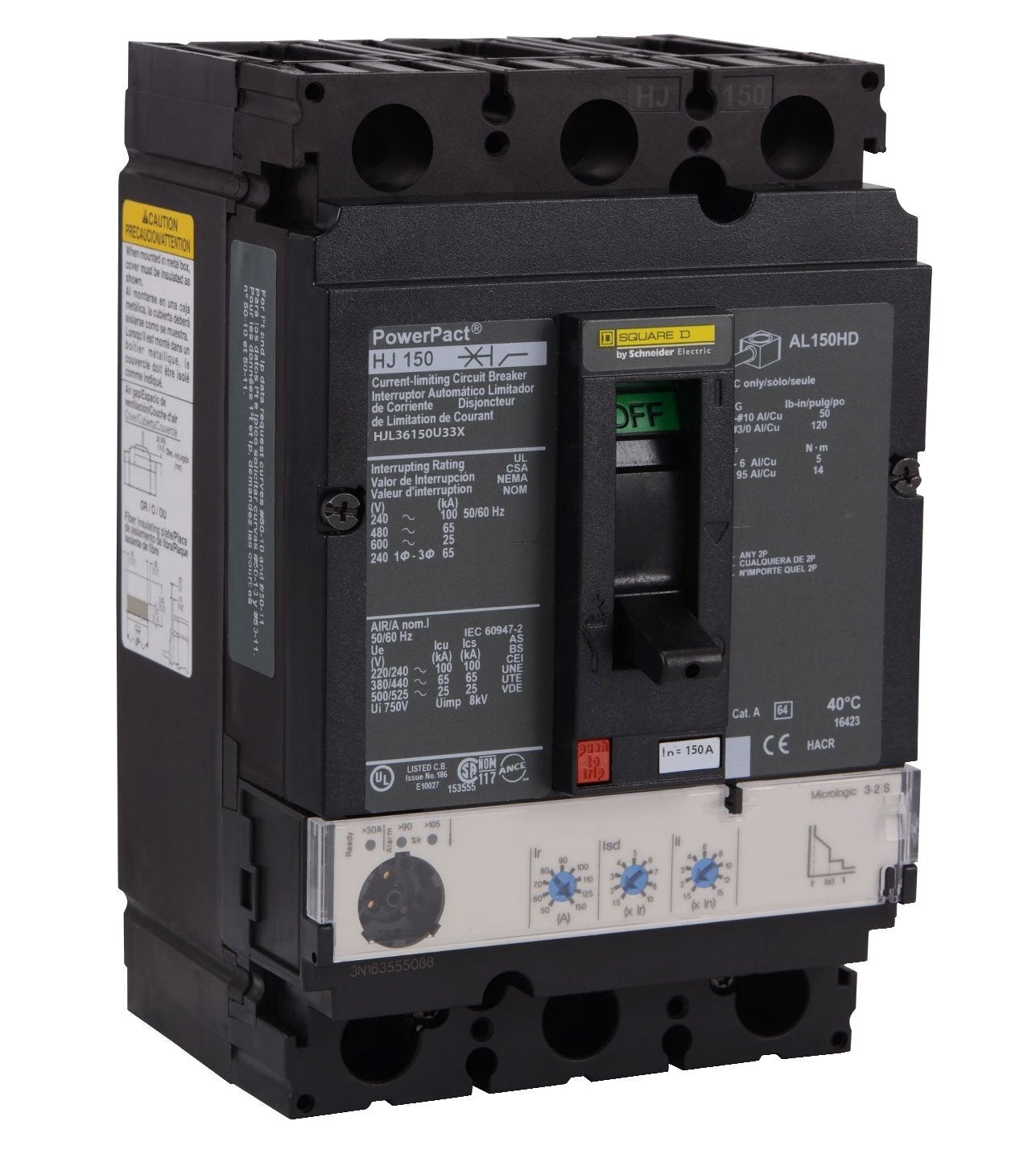

The Square D HJL36150U33X is a 150 Amp, 3-pole molded case circuit breaker from Schneider Electric / Square D PowerPact Type HJL. It is rated for 600 V and features current-limiting protection with interrupting ratings of 100 kA at 240 V, 65 kA at 480 V, and 25 kA at 600 V. The breaker is designed for feed-thru applications and is suitable for reverse-fed applications. It includes a non-interchangeable Micrologic Standard solid-state electronic trip unit with LSI protection functions and line and load-side lug terminals.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact
• Type: HJL
• Catalog Number / MPN: HJL36150U33X
• Primary Rating: 150 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 100 kA @ 240 V; 65 kA @ 480 V; 25 kA @ 600 V
• Interrupting Capacity: Current Limiting
• Trip Type: Solid-State Electronic
• Trip Unit: Non-Interchangeable Micrologic Standard
• Trip Functions: LSI – Long-Time, Short-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Application: Suitable for Reverse-Fed Applications
• Additional Application: Can Be Used for 2 Pole Applications

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: HJL36150U33X
• Series: PowerPact
• Type: HJL
• Current Rating: 150 A
• Pole Count: 3 Pole
• Product Type: Solid-State Electronic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable Micrologic Standard
• Trip Functions: LSI – Long-Time, Short-Time and Instantaneous
• Terminals: Line & Load-Side Lug Terminals
• UPC: 785901324508

Compatibility

The Square D HJL36150U33X is designed for compatible Schneider Electric / Square D PowerPact Type HJL applications. It is suitable for reverse-fed applications and can be used for 2-pole applications as specified. Verify the specific panelboard or switchboard, system voltage, mounting configuration, and breaker compatibility before installation.

Certifications

• UL Listed
