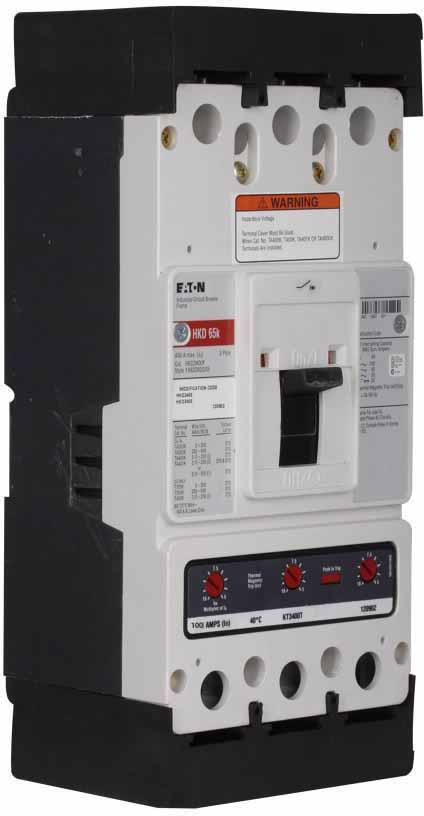

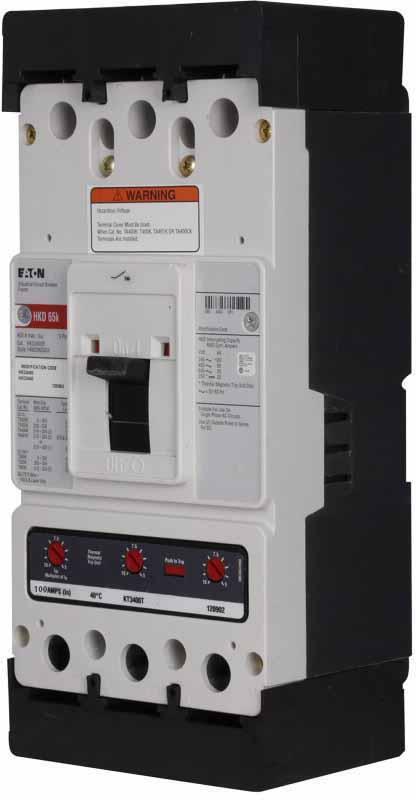

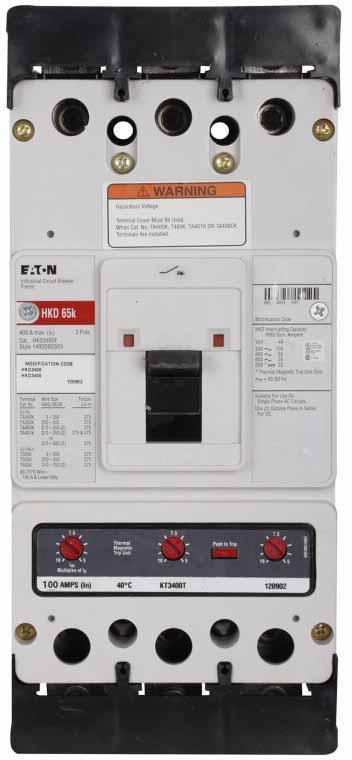

Eaton HKD3100W 100 Amp Molded Case Circuit Breaker – 3 Pole – 600 V AC / 250 V DC – 65 kA@480 V AC – OPTIM Trip Unit – Series C

The Eaton HKD3100W is a 100 Amp, 3-pole molded case circuit breaker from the Eaton Series C, Type HKD, K-Frame product range. This complete breaker features an OPTIM trip unit with fixed thermal and fixed magnetic trip settings. It is rated for 600 V AC and 250 V DC, with interrupting ratings of 100 kA at 240 V AC and 65 kA at 480 V AC. The breaker supports line- and load-side connections.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: HKD
• Frame: K-Frame
• Catalog Number / MPN: HKD3100W
• Assembly: Complete Breaker
• Primary Rating: 100 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600 V AC / 250 V DC
• Interrupting Rating: 100 kA @ 240 V AC; 65 kA @ 480 V AC
• Trip Type: Fixed Thermal / Fixed Magnetic
• Trip Unit: OPTIM
• Connection: Line and Load

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: HKD3100W
• Series: Series C
• Type: HKD
• Frame: K-Frame
• Current Rating: 100 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker
• Trip Unit: OPTIM
• Trip Configuration: Fixed Thermal / Fixed Magnetic
• UPC:786679342763

Compatibility

The Eaton HKD3100W is intended for compatible Eaton Series C K-Frame Type HKD electrical distribution applications.
