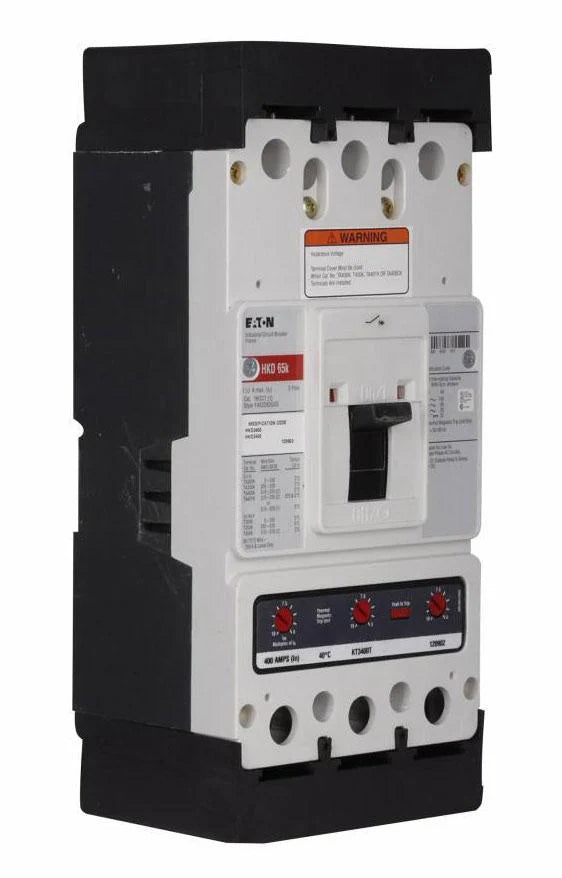

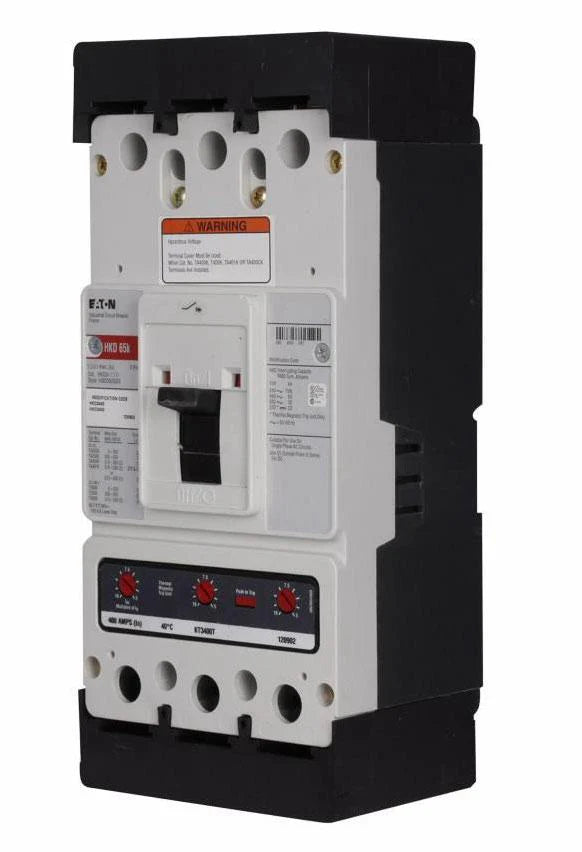

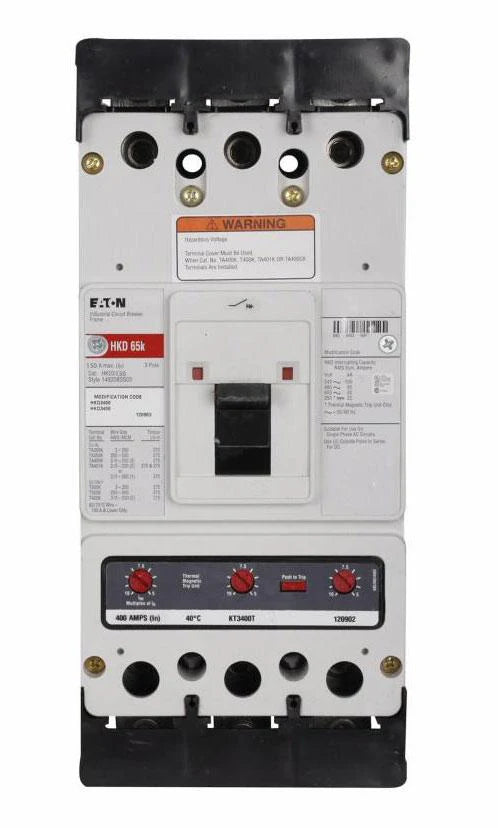

Eaton HKD3150W 150 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Feed-Thru – Series C

The Eaton HKD3150W is a 150 Amp, 3-pole, 3-phase molded case circuit breaker from the Eaton Cutler-Hammer Series C, Type HKD. It is rated for 600 V with a 65 kA interrupting rating at 480 V and features high interrupting capacity. The breaker uses thermal-magnetic protection with a non-interchangeable trip unit and LI (Long-Time and Instantaneous) trip functions. It is designed for feed-thru mounting and includes line and load-side lug terminals. It is calibrated for 40°C applications.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: HKD
• Catalog Number / MPN: HKD3150W
• Primary Rating: 150 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Interrupting Capacity: High
• Calibration Temperature: 40°C
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: HKD3150W
• Series: Series C
• Type: HKD
• Current Rating: 150 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:786679342800

Compatibility

The Eaton HKD3150W is intended for compatible Eaton / Cutler-Hammer Series C Type HKD electrical distribution applications.
