Eaton HKD3200 Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 600V AC – 100kAIC @ 240V / 65kAIC @ 480V – Line & Load – Series C HKD

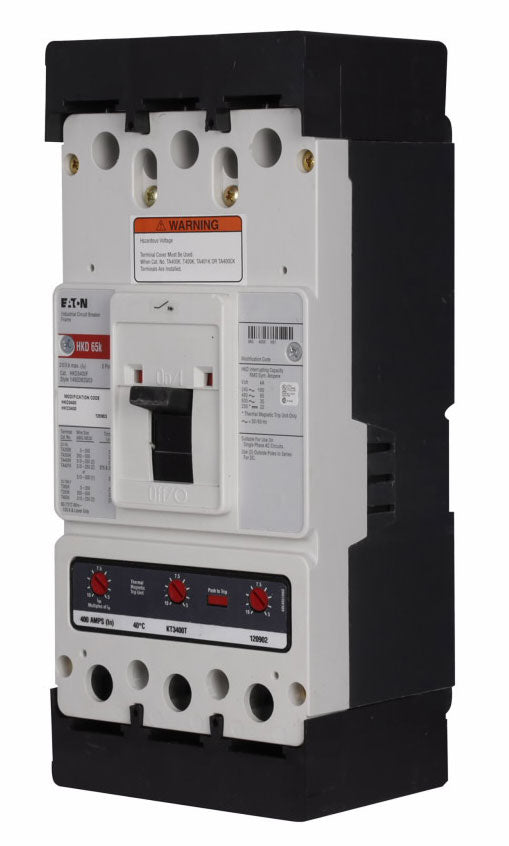

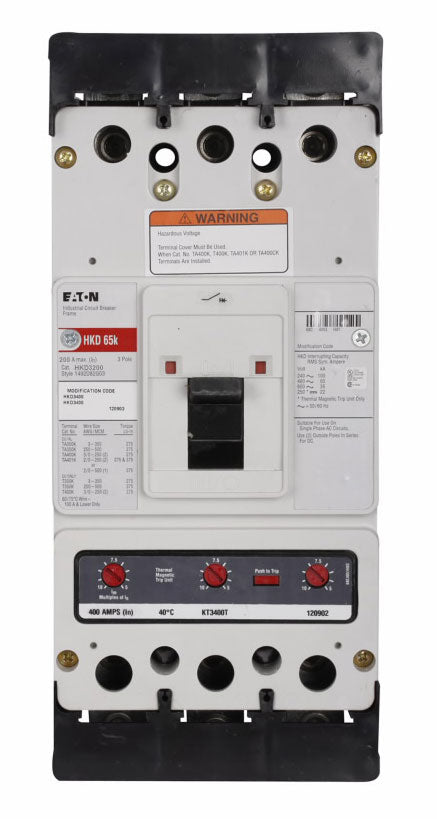

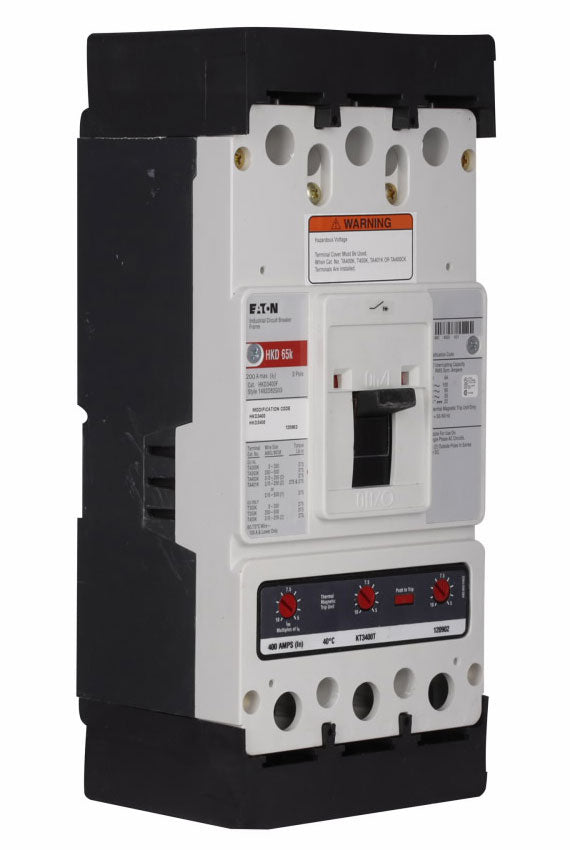

The Eaton HKD3200 is a 200A, 3-pole, 3-phase molded case circuit breaker from the Eaton Series C Type HKD. It is a complete K-frame circuit breaker featuring fixed thermal and fixed magnetic trip protection for compatible electrical distribution applications.

The HKD3200 is rated for 600V AC and 250V DC and provides interrupting ratings of 100kAIC at 240V AC and 65kAIC at 480V AC. It features line- and load-side aluminum connections and operates at 50/60Hz.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Name: Series C Complete Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: HKD
• Frame: K-Frame
• Catalog No.: HKD3200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Interrupting Rating: 100kAIC @ 240V AC; 65kAIC @ 480V AC
• Trip Type: Fixed Thermal, Fixed Magnetic
• Connection: Line and Load
• Terminal Material: Aluminum
• Frequency: 50/60Hz
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HKD3200
• Catalog Number: HKD3200
• Model: HKD3200
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HKD
• Frame: K-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• Trip Configuration: Fixed Thermal / Fixed Magnetic
• UPC:786679010006

Compatibility:

Designed for use with compatible Eaton Series C Type HKD K-frame electrical distribution equipment that accepts HKD Series molded case circuit breakers. The HKD3200 provides 200A, 3-pole thermal-magnetic overcurrent protection for compatible 600V AC electrical distribution applications.

The breaker features fixed thermal and fixed magnetic trips, with line- and load-side aluminum connections. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal material, and installation requirements before installation.
