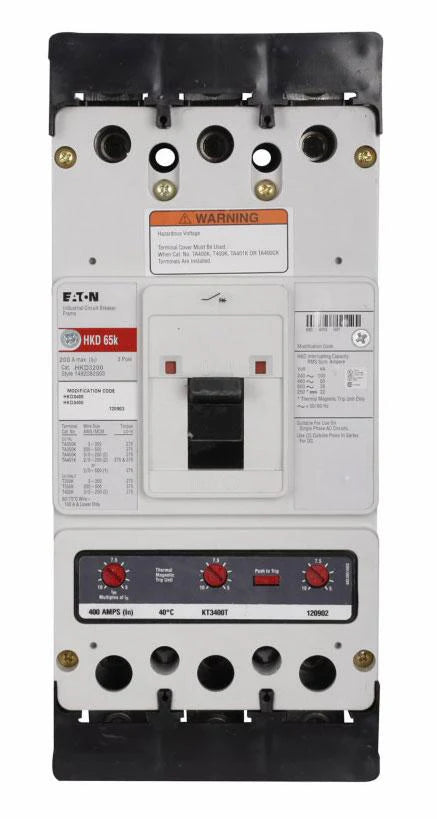

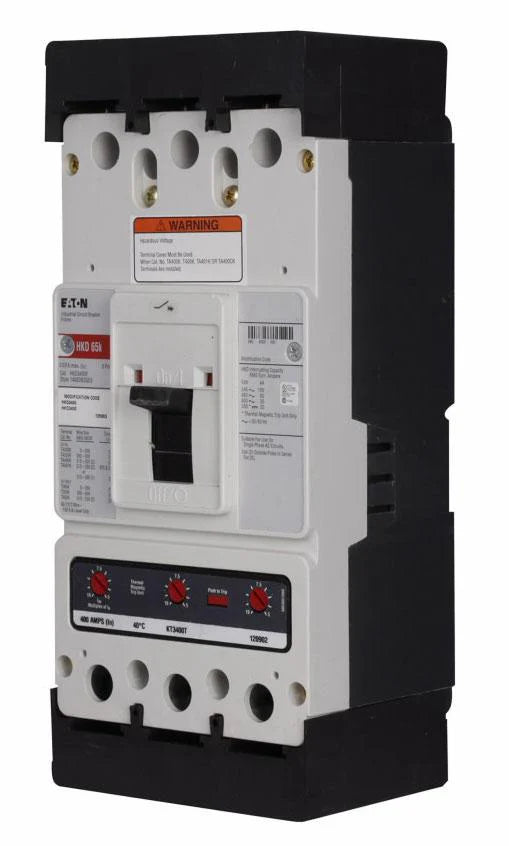

Eaton Cutler-Hammer HKD3200C 200 Amp Molded Case Circuit Breaker – 3 Pole – 600V AC – 100 kAIC @ 240V / 65 kAIC @ 480V – K Frame

The Eaton Series C HKD3200C is a 200A, three-pole molded case circuit breaker designed for industrial and commercial power distribution systems. It features fixed thermal and fixed magnetic trip protection, providing overload and short-circuit protection. Its high interrupting capacity supports applications with substantial fault-current requirements.

Specifications

• Brand: Eaton
• Series: Series C
• Type: HKD
• Catalog Number / MPN: HKD3200C
• Frame: K Frame
• Rated Current: 200A
• Poles: 3 Pole
• Rated Voltage (AC): 600V
• Rated Voltage (DC): 250V
• Interrupting Capacity: 100 kAIC @ 240V AC; 65 kAIC @ 480V AC
• Trip Type: Fixed thermal, fixed magnetic
• Frequency: 50/60 Hz
• Terminals: Aluminum, line and load
• Configuration: Complete molded case circuit breaker

Part Numbers & Identification

• Manufacturer: Eaton
• Product Family: Cutler-Hammer Series C
• Catalog Number: HKD3200C
• Frame Designation: K Frame
• Product Type: Molded Case Circuit Breaker (MCCB)
• UPC:782114206812

Compatibility

Suitable for Eaton Series C K-frame applications requiring a 200A, three-pole MCCB with fixed thermal and magnetic trip protection. Supports compatible systems rated up to 600V AC or 250V DC, with line- and load-side aluminum terminals.
