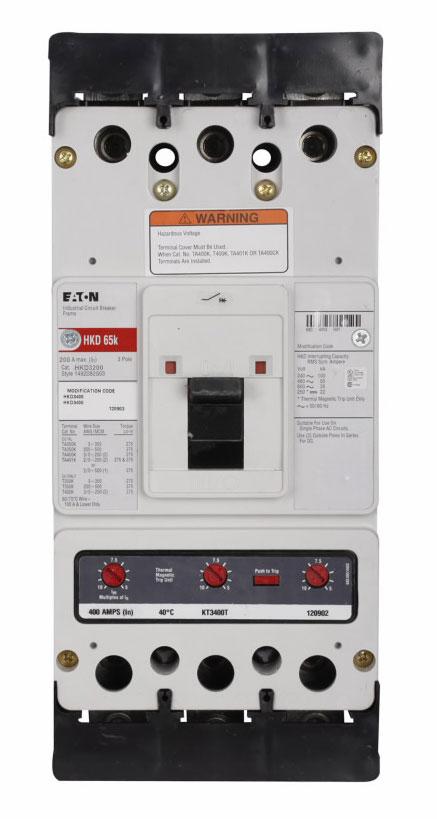

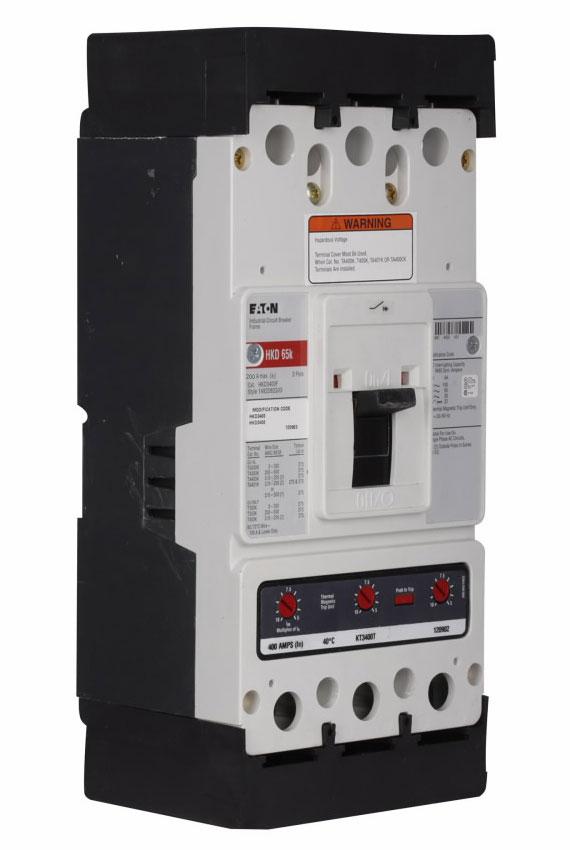

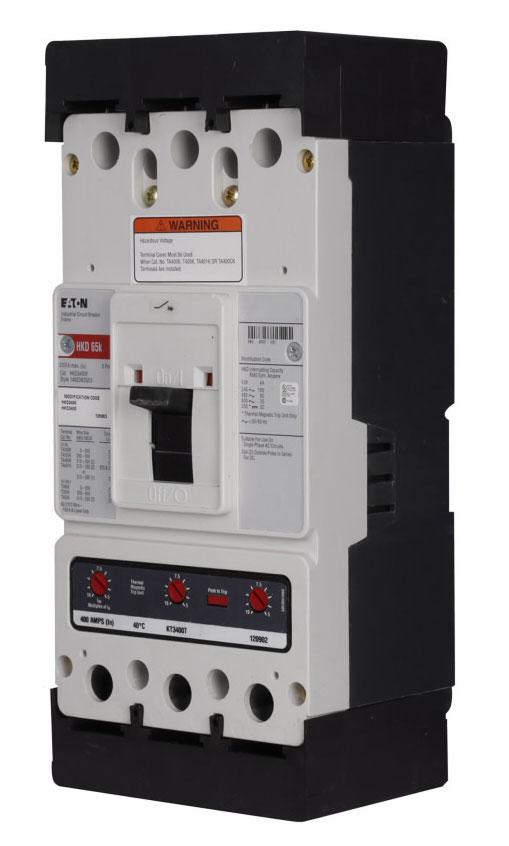

Eaton HKD3200X Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 600V AC – 100kAIC @ 240V / 65kAIC @ 480V – Feed-Thru Not Specified – Series C HKD

The Eaton HKD3200X is a 200A, 3-pole molded case circuit breaker from the Eaton Series C Type HKD K-Frame. It is supplied as a complete breaker and features fixed thermal and fixed magnetic trip protection.

The HKD3200X is rated for 600V AC and 250V DC and provides interrupting ratings of 100kAIC at 240V AC and 65kAIC at 480V AC. It operates at 50/60Hz and includes aluminum line- and load-side connections.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: HKD
• Frame: K-Frame
• Catalog No.: HKD3200X
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: Not specified
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Interrupting Rating: 100kAIC @ 240V AC; 65kAIC @ 480V AC
• Trip Type: Fixed Thermal, Fixed Magnetic
• Breaker Configuration: Complete Breaker
• Terminal Material: Aluminum
• Line-Side Connection: Aluminum
• Load-Side Connection: Aluminum
• Frequency: 50/60Hz
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HKD3200X
• Catalog Number: HKD3200X
• Model: HKD3200X
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HKD
• Frame: K-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• Trip Configuration: Fixed Thermal and Fixed Magnetic

Compatibility:

Designed for use with compatible Eaton Series C Type HKD K-Frame electrical distribution equipment that accepts HKD Series molded case circuit breakers. The HKD3200X provides 200A, 3-pole protection for compatible 600V AC and 250V DC electrical distribution applications.

The breaker is supplied complete with aluminum line- and load-side connections and fixed thermal and fixed magnetic trip protection. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal material, and installation requirements before installation.

Certifications:

• Series C HKD
• K-Frame
• 200A Rated
• 3-Pole
• 600V AC Rated
• 250V DC Rated
• 100kAIC @ 240V AC
• 65kAIC @ 480V AC
• Fixed Thermal Trip
• Fixed Magnetic Trip
• Complete Breaker
• Aluminum Line and Load Connections
• 50/60Hz
