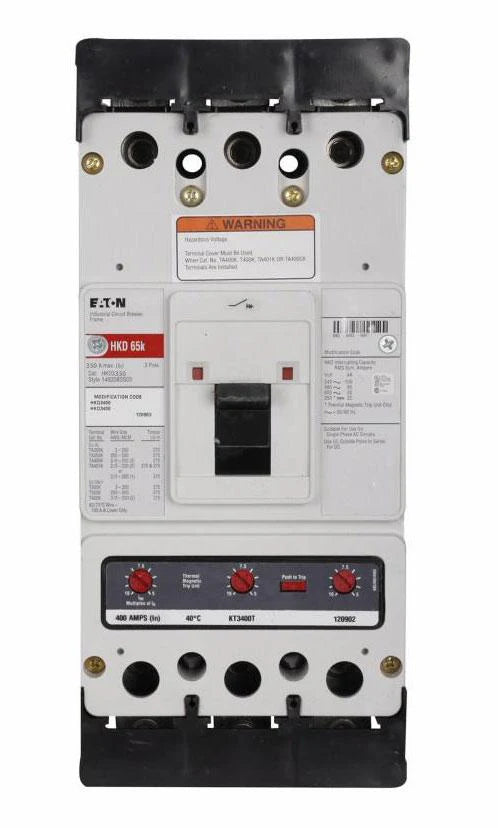

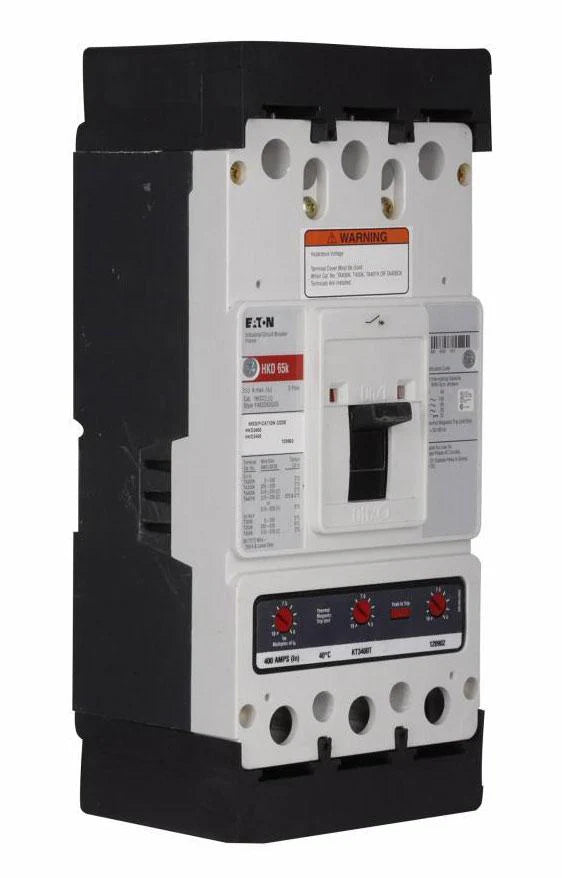

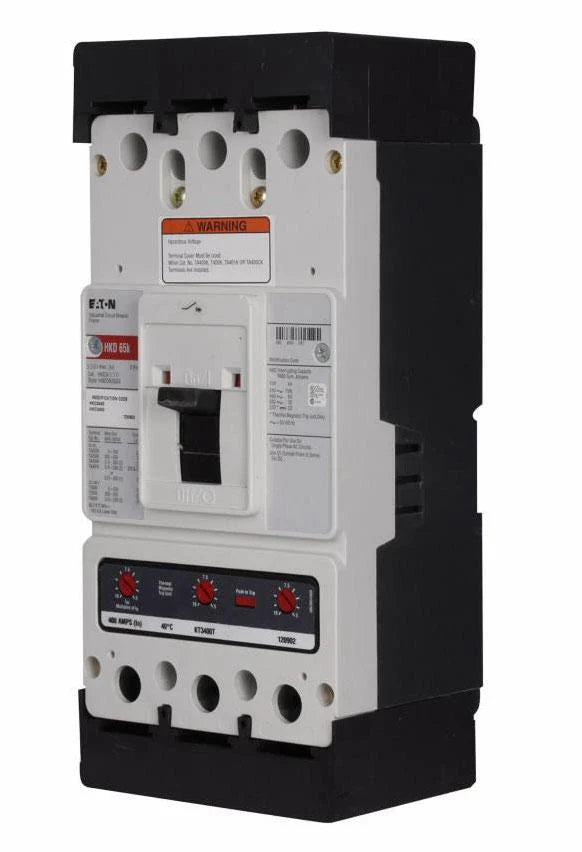

Eaton Cutler-Hammer HKD3350X 350 Amp Molded Case Circuit Breaker – 3 Pole – 600V – 65 kA @ 480V – Series C

The Eaton Cutler-Hammer HKD3350X is a Series C, Type HKD, 350A, three-pole thermal-magnetic molded case circuit breaker. It features a 600V voltage rating, 65 kA interrupting capacity at 480V, and non-interchangeable LI (Long-Time and Instantaneous) trip functions. Designed for feed-through applications, it includes line- and load-side lug terminals.

Specifications

• Brand: Eaton / Cutler-Hammer
• Model: HKD3350X
• Series: Series C
• Type: HKD
• Frame: KD
• Current Rating: 350A
• Poles: 3
• Phase: 3-phase
• Voltage Rating: 600V
• Interrupting Capacity: 65 kA @ 480V
• Interrupting Class: High interrupting capacity
• Trip Function: Non-interchangeable LI (Long-Time and Instantaneous)
• Trip Unit: Thermal-magnetic
• Mounting / Connection: Feed-through
• Terminal Type: Line- and load-side lug terminals
• Temperature Rating: 40°C

Part Numbers & Identification

• Catalog Number: HKD3350X
• Manufacturer: Eaton
• Product Family: Series C
• Circuit Breaker Type: Molded Case Circuit Breaker (MCCB)
• UPC:786679319406

Compatibility

Suitable for Eaton Series C Type HKD applications requiring a 350A, three-pole molded case circuit breaker with non-interchangeable LI trip functions and feed-through line- and load-side connections.
