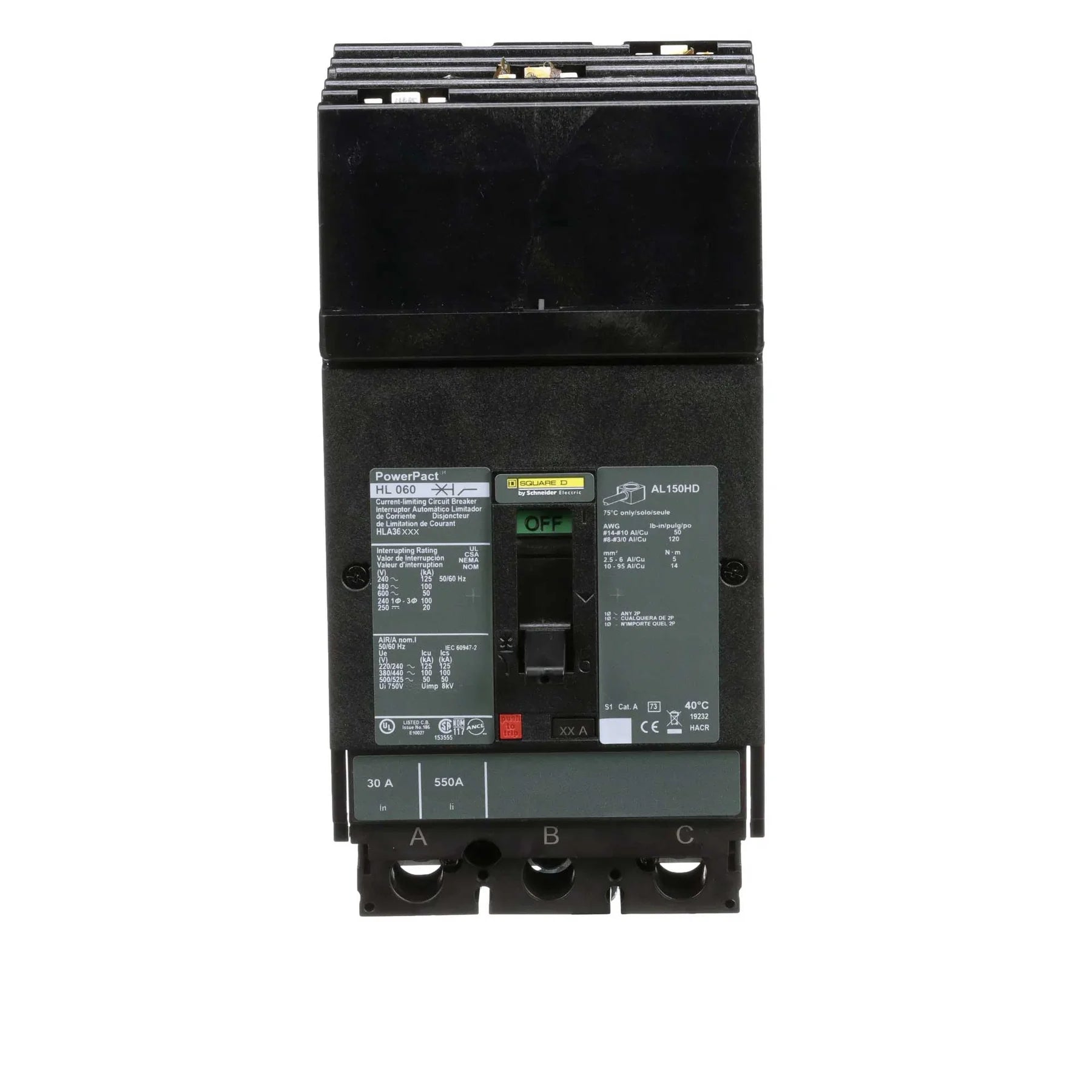

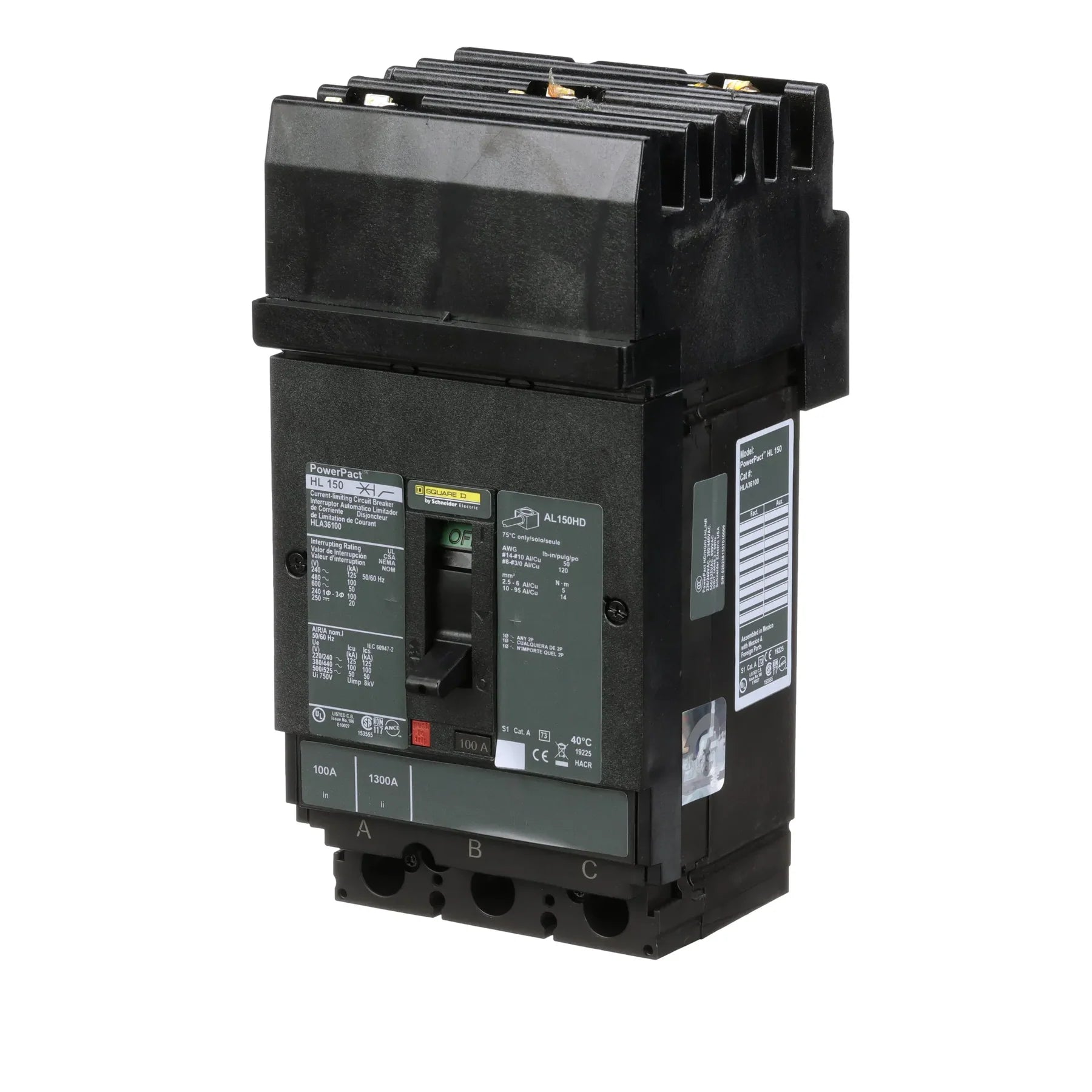

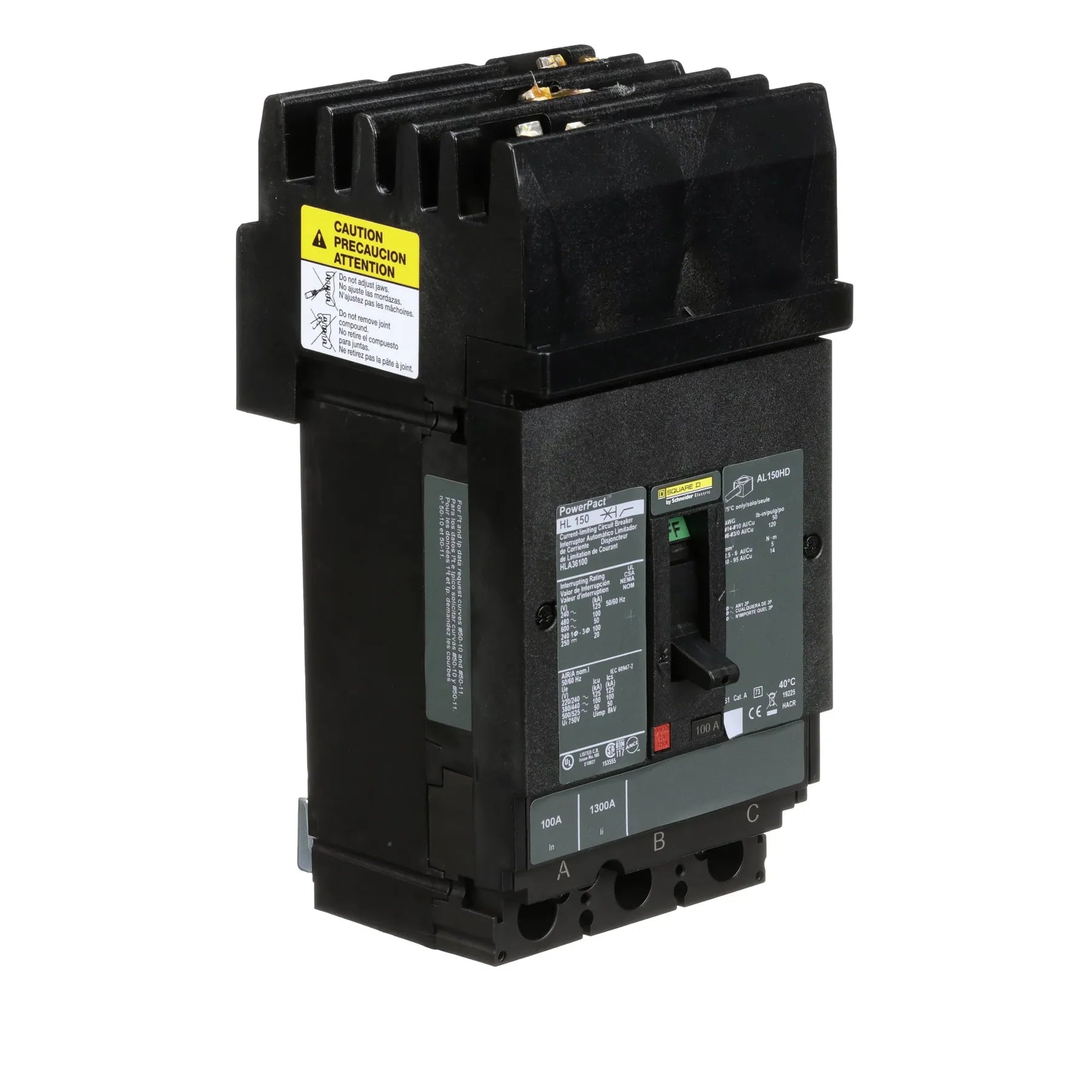

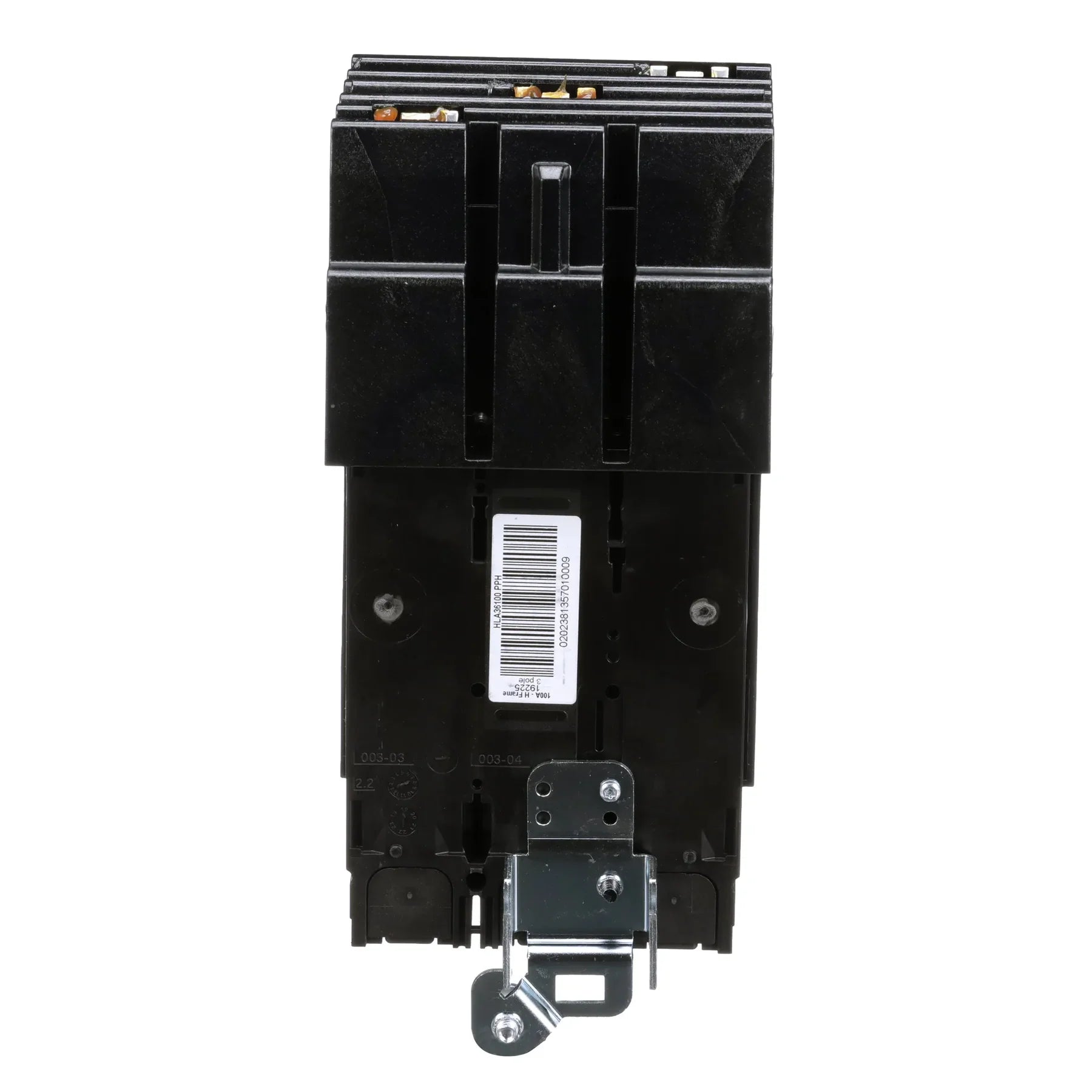

Square D HLA36080 Molded Case Circuit Breaker – 80A – 3-Pole / 3-Phase – 600V – 100kA @ 480V – I-Line Style Plug-In – PowerPact HLA Series

The Square D HLA36080 is an 80A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type HLA Series. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 600V and provides a 100kA interrupting rating at 480V. It features current-limiting construction, an I-Line style plug-in connection, and an ABC phase connection. The breaker is UL Listed and suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HLA
• Type: HLA
• Catalog No.: HLA36080
• Current Rating: 80A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Current Limiting: Current Limiting
• Mounting / Connection: I-Line Style Plug-In
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HLA36080
• Catalog Number: HLA36080
• Model: HLA36080
• Product Family: Square D PowerPact Circuit Breakers
• Series: HLA
• Type: HLA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 80A
• Trip Configuration: Non-Interchangeable LI Trip
• UPC:785901700609

Compatibility:

Designed for use with compatible Square D PowerPact HLA Series electrical distribution equipment that accepts HLA Series molded case circuit breakers. The HLA36080 provides 80A, 3-pole thermal-magnetic protection for compatible 600V electrical distribution applications.

The breaker features current-limiting construction, an ABC phase connection, I-Line style plug-in mounting, and a non-interchangeable LI trip. It is also suitable for reverse-fed applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, phase connection, trip requirements, and mounting arrangement before installation.

Certifications:

• UL Listed
• 80A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kA @ 480V Interrupting Rating
• Current Limiting
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• ABC Phase Connection
• I-Line Style Plug-In
• Suitable for Reverse-Fed Applications
• Square D PowerPact HLA Series
