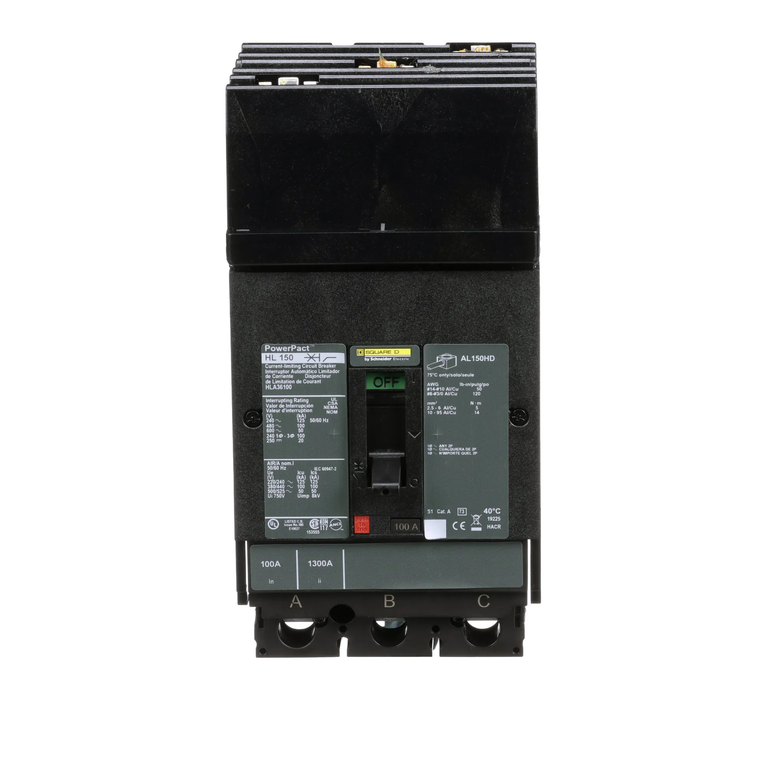

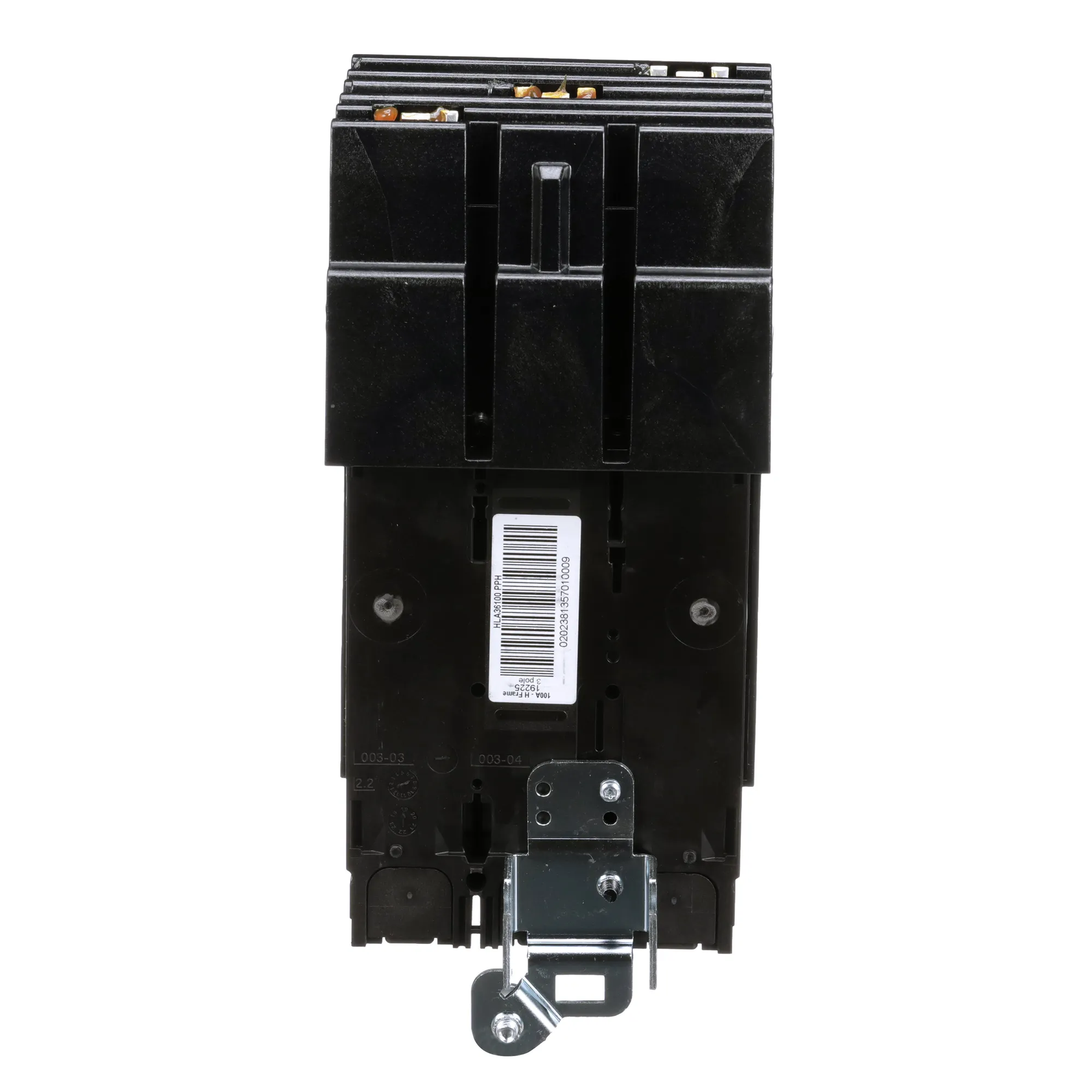

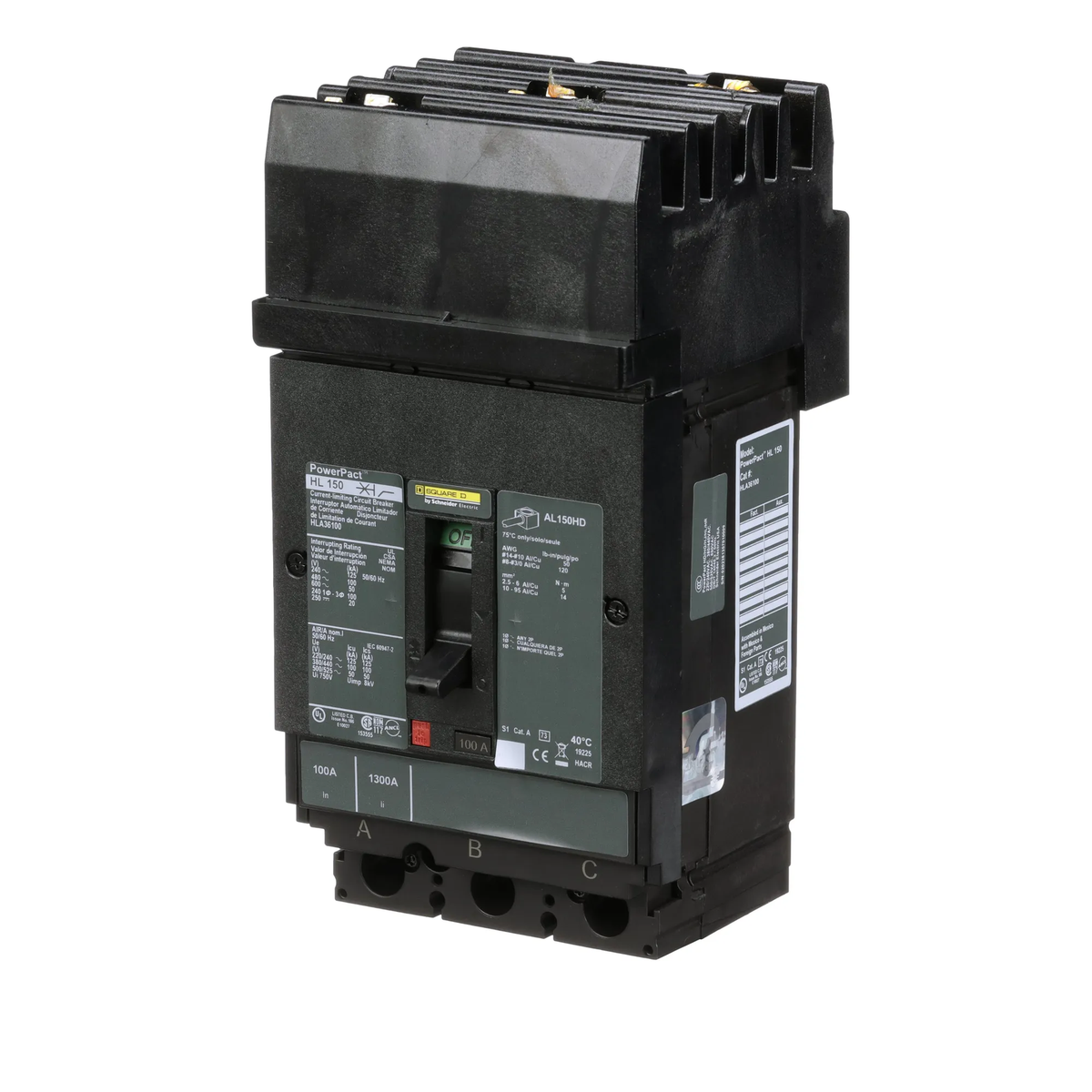

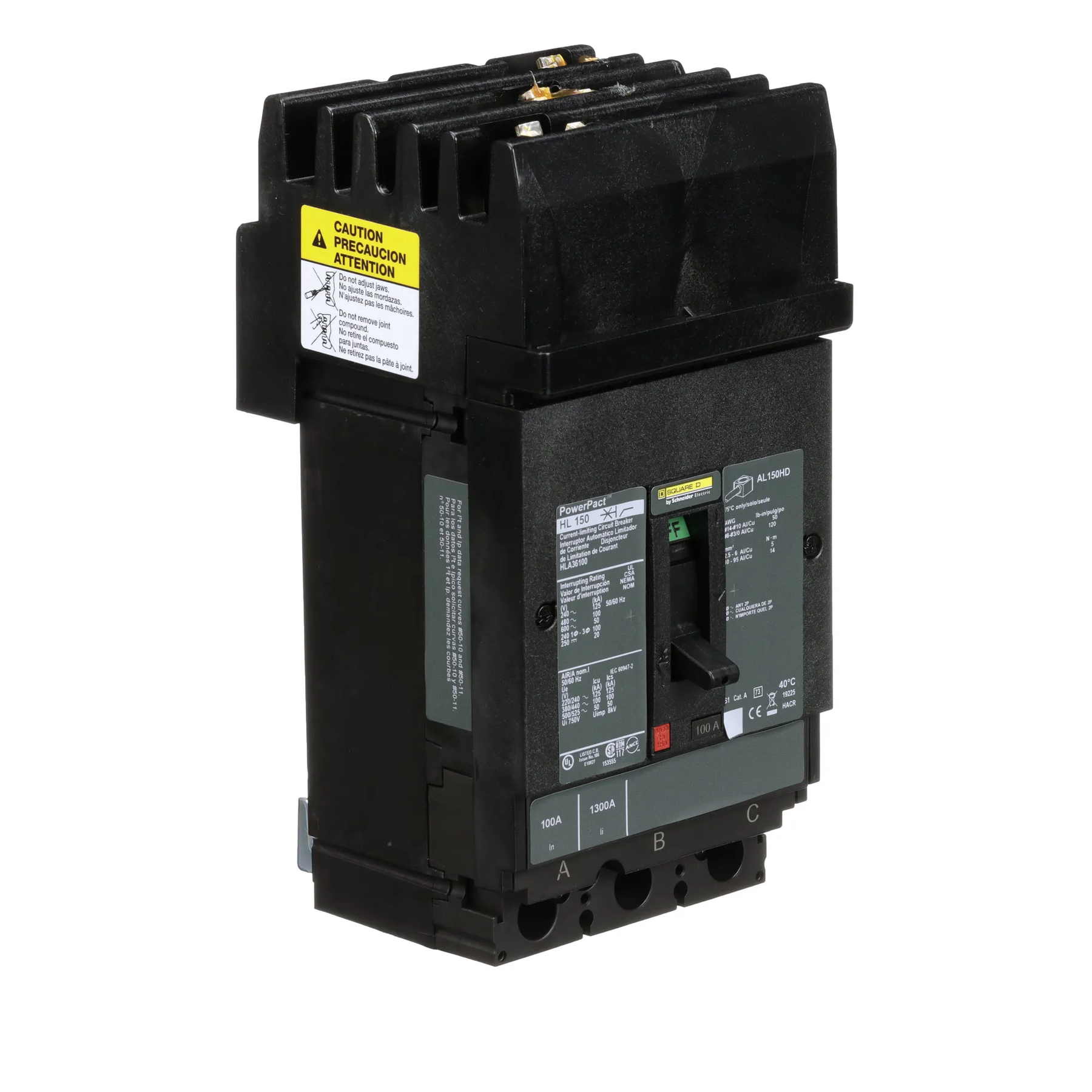

Square D HLA36100 Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 600V – 100kA @ 480V – I-Line Style Plug-In – PowerPact HLA Series

The Square D HLA36100 is a 100A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Square D PowerPact HLA Series. It features current-limiting construction, an ABC phase connection, and is designed for compatible electrical distribution applications.

The HLA36100 is rated for 600V and provides a 100kA interrupting rating at 480V. It features an I-Line style plug-in connection, a non-interchangeable trip, and Long-Time and Instantaneous (LI) trip functions. The breaker is UL Listed, suitable for reverse-fed applications, and supplied as a complete breaker.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HLA
• Type: HLA
• Catalog No.: HLA36100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Current Limiting: Current Limiting
• Mounting / Connection: I-Line Style Plug-In
• Breaker Configuration: Complete Breaker
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HLA36100
• Catalog Number: HLA36100
• Model: HLA36100
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HLA
• Type: HLA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• Rated Current: 100A
• Rated Voltage: 600V
• Trip Configuration: Non-Interchangeable LI
• Phase Connection: ABC
• UPC:785901700630

Compatibility:

Designed for use with compatible Square D PowerPact HLA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The HLA36100 provides 100A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features current-limiting construction, an ABC phase connection, I-Line style plug-in mounting, and a non-interchangeable LI trip. It is also suitable for reverse-fed applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, phase connection, trip-unit requirements, and mounting arrangement before installation.

Certifications:

• UL Listed
• PowerPact HLA Series
• 100A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kA @ 480V Interrupting Rating
• Current Limiting
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• I-Line Style Plug-In
• ABC Phase Connection
• Suitable for Reverse-Fed Applications
• Complete Breaker
