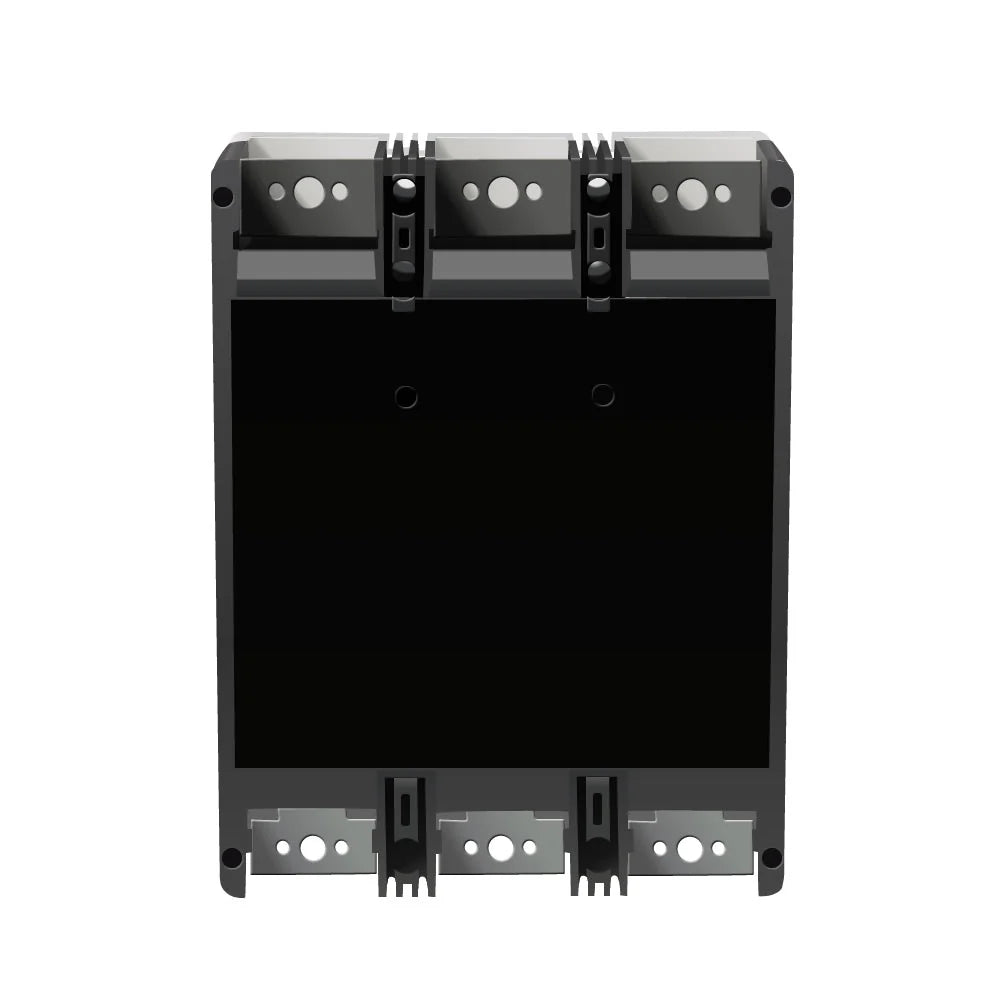

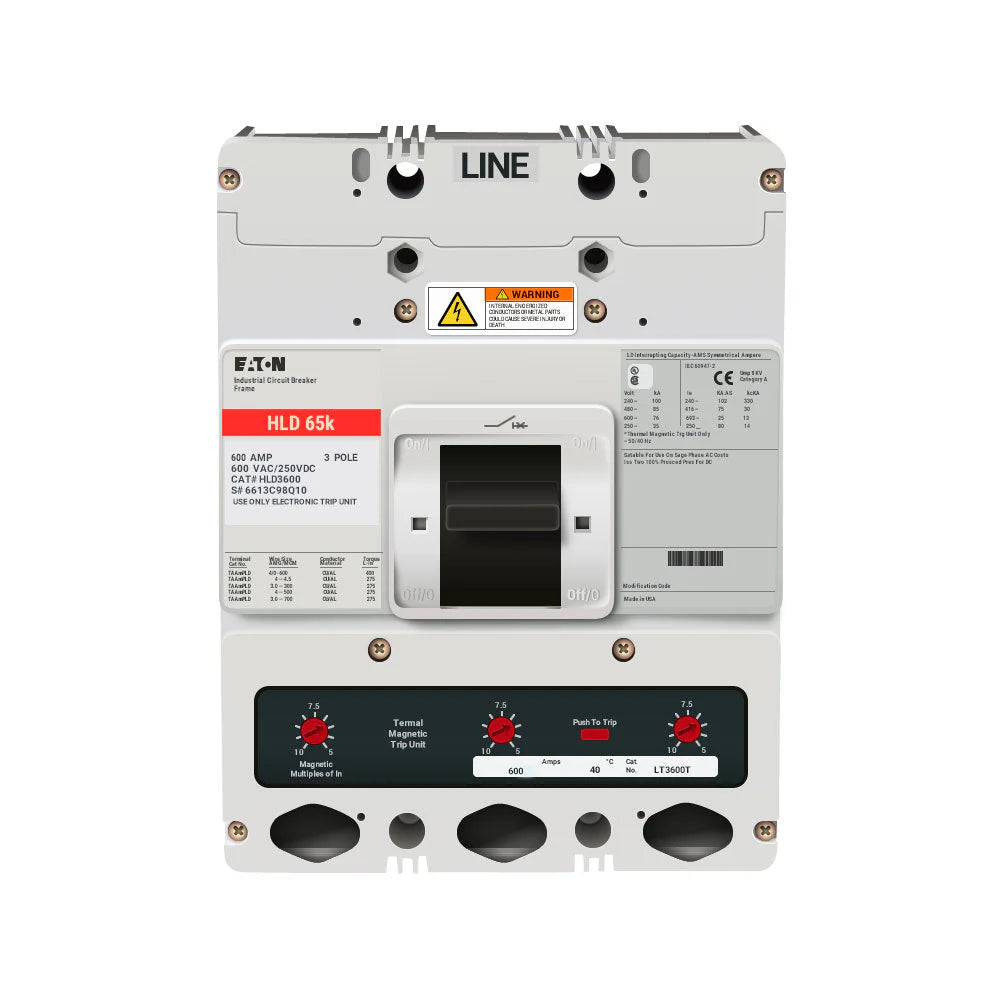

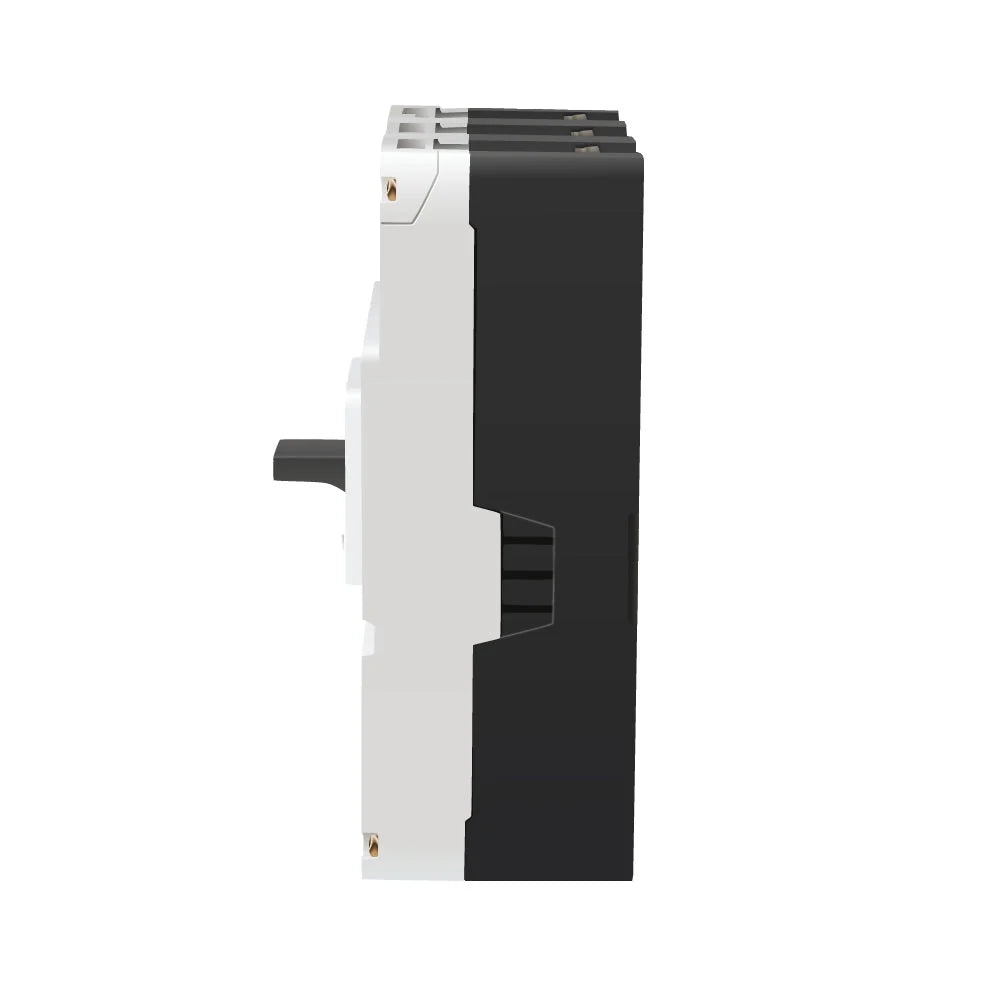

Eaton Cutler-Hammer HLD3600X 600 Amp Molded Case Circuit Breaker – 3 Pole – 600V – 65 kA @ 480V – Series C

The Eaton Cutler-Hammer HLD3600X is a Series C Type HLD, 600A, three-pole molded case circuit breaker designed for high-interrupting-capacity electrical protection. It features a thermal-magnetic trip mechanism with interchangeable Long-Time and Instantaneous (LI) trip functions. The breaker has a 600V rating, 65 kA interrupting capacity at 480V, and feed-through construction with line- and load-side lug terminals.

Specifications

• Brand: Eaton / Cutler-Hammer / Westinghouse
• Series: Series C
• Type: HLD
• Frame: LD
• Amperage Rating: 600A
• Number of Poles: 3
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Capacity: 65 kA @ 480V
• Interrupting Rating: High
• Temperature Rating: 40°C
• Connection Type: Feed-through
• Trip Unit: Interchangeable LI (Long-Time and Instantaneous)
• Trip Mechanism: Thermal-Magnetic
• Terminals: Line- and load-side lug terminals

Part Numbers & Identification

• MPN: HLD3600X
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Frame Type: LD
• Series: C
• UPC:782114421925

Compatibility

Suitable for Eaton Series C Type HLD applications requiring a 600A, three-pole molded case circuit breaker with interchangeable LI trip functions and feed-through line- and load-side connections.
