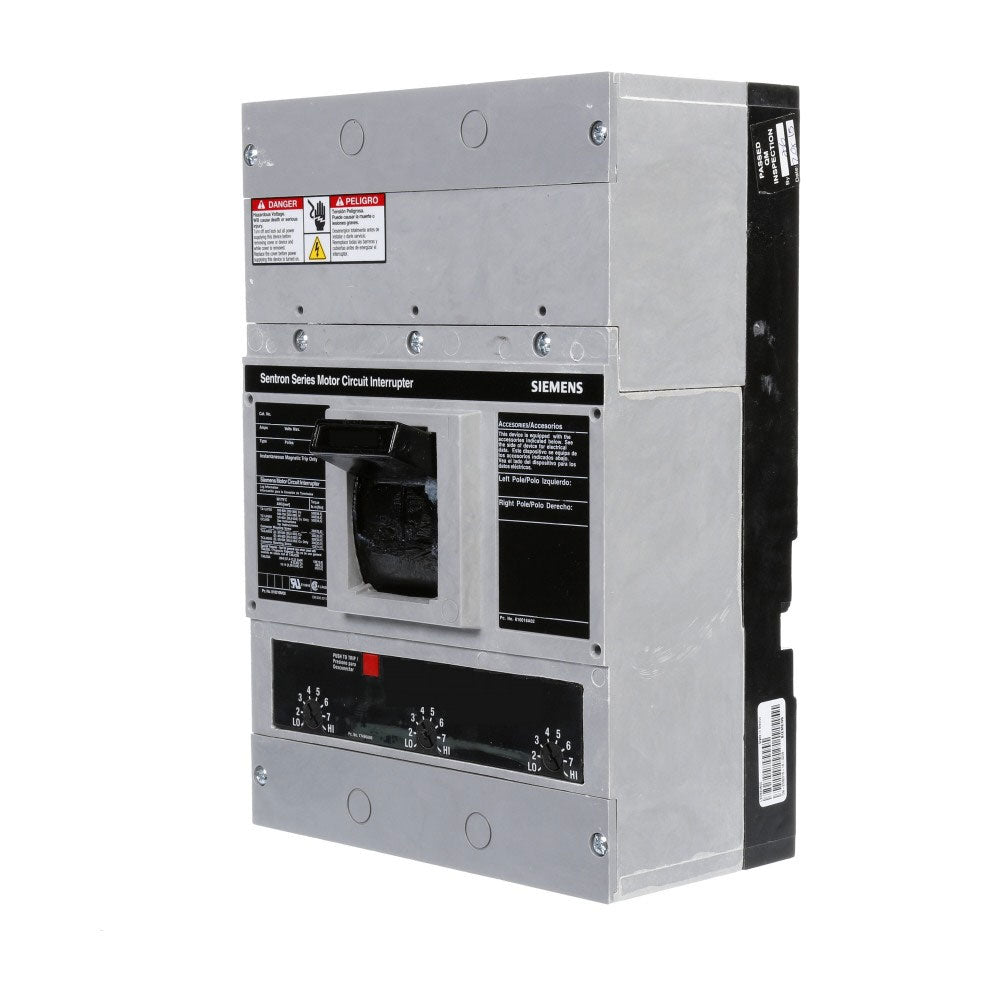

Siemens HLD63B500L 500 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – High Interrupting Capacity – Thermal-Magnetic LI Trip – Feed-Thru – Sentron HLD Series

The Siemens HLD63B500L is a 500 Amp, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Series, Type HLD. It is rated for 600 V and provides a 65 kA interrupting rating at 480 V, with high interrupting capacity.

The breaker features an interchangeable thermal-magnetic trip unit with LI (Long-Time and Instantaneous) trip functions for overload and short-circuit protection. It is calibrated at 40°C and features a feed-thru connection configuration.

The Siemens HLD63B500L includes line-side and load-side lug terminals for electrical connections in compatible low-voltage distribution systems.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: Sentron
• Type: HLD
• Catalog Number / MPN: HLD63B500L
• Primary Rating: 500 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Interrupting Capacity: High
• Trip Type: Thermal-Magnetic
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Calibration Temperature: 40°C
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Protection: Overload and Short-Circuit

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: HLD63B500L
• Series: Sentron
• Type: HLD
• Current Rating: 500 A
• Pole Count: 3 Pole
• Phase Configuration: 3 Phase
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Interrupting Capacity Classification: High
• Connection Type: Feed-Thru
• Calibration: 40°C
• Terminals: Line & Load-Side Lugs
• UPC:783643008649

Compatibility

The Siemens HLD63B500L is intended for compatible Siemens Sentron Series electrical distribution equipment supporting Type HLD, 500 Amp, 3-pole feed-thru molded case circuit breakers with interchangeable thermal-magnetic trip units.
