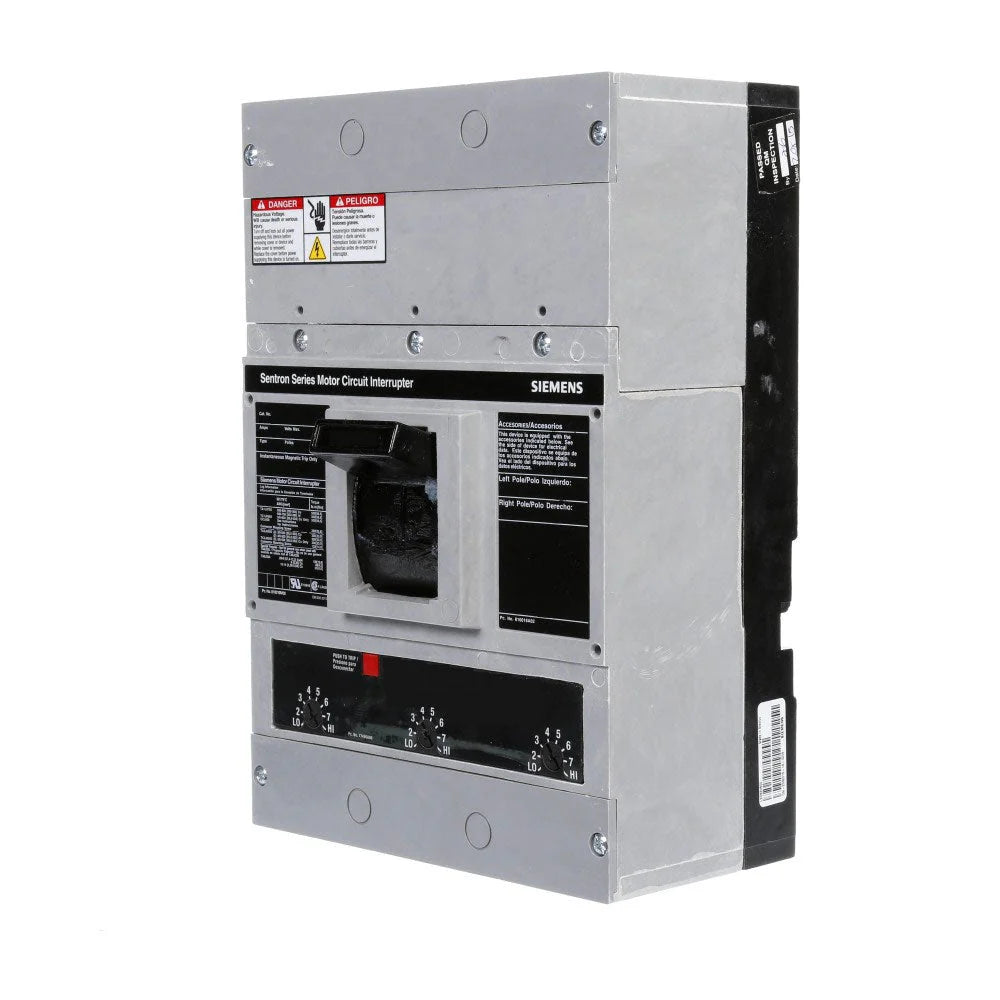

Siemens HLD63B600L 600 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Bolt-On – SENTRON Series

The Siemens HLD63B600L is a 600 Amp, 3-pole, 3-phase molded case circuit breaker from the Siemens SENTRON Series, Type HLD. It is rated for 600 V and provides a 65 kA interrupting rating at 480 V. The breaker features thermal-magnetic protection with an interchangeable trip unit and LI (Long-Time and Instantaneous) trip functions. It is calibrated for 40°C applications and designed for bolt-on mounting with load-side lug terminals.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: HLD
• Catalog Number / MPN: HLD63B600L
• Primary Rating: 600 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Interrupting Capacity: High
• Calibration Temperature: 40°C
• Trip Type: Thermal-Magnetic
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Bolt-On
• Terminals: Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: HLD63B600L
• Series: SENTRON
• Type: HLD
• Current Rating: 600 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Bolt-On
• Terminals: Load-Side Lug Terminals
• UPC:783643008656

Compatibility

The Siemens HLD63B600L is designed for compatible Siemens SENTRON Type HLD electrical distribution applications.
