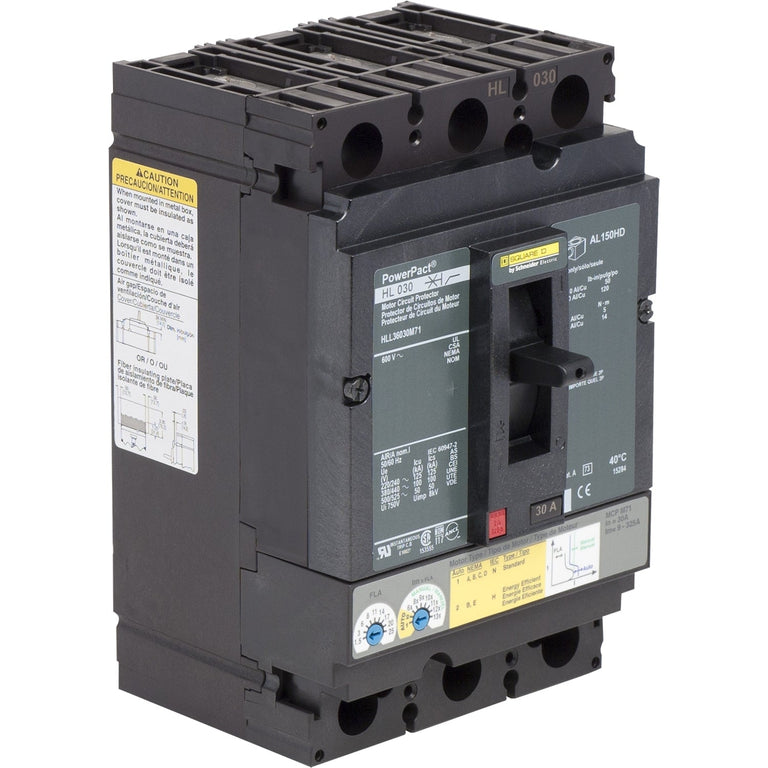

Square D PowerPact HLL36030M71 30 Amp Motor Circuit Protector – 3 Pole – 600V AC – 100 kA @ 480V – HLL Frame

The Square D PowerPact HLL36030M71 is a 30A, three-pole Motor Circuit Protector (MCP) designed for motor circuit protection in three-phase electrical systems. It features a current-limiting design, feed-through configuration, and reverse-feed suitability. Its magnetic-only trip mechanism provides instantaneous protection, with an adjustable magnetic range of 9–325A. Line- and load-side lug terminals are included.

Specifications

• Brand: Schneider Electric / Square D
• Product Series: PowerPact
• Circuit Protector Type: HLL
• Product Type: Motor Circuit Protector (MCP)
• Amperage Rating: 30A
• Poles: 3
• Phase: 3-phase
• Voltage Rating: 600V AC
• Interrupting Capacity: 100 kA @ 480V AC
• Interrupting Class: Current limiting
• Connection Type: Feed-through
• Feed Direction: Suitable for reverse-feed applications
• Trip Protection: Instantaneous only
• Trip Mechanism: Magnetic-only
• Magnetic Trip Range: 9–325A
• Terminals: Line- and load-side lug terminals included
• Protection Application: Motor circuit protection

Part Numbers & Identification

• Manufacturer Part Number (MPN): HLL36030M71
• Brand: Square D
• Product Series: PowerPact
• Type: HLL
• Product Category: Motor Circuit Protector
• UPC:785901632139

Compatibility

Designed for compatible Square D PowerPact HLL-frame motor circuit protection applications requiring a 30A, three-pole MCP with magnetic instantaneous protection. Suitable for motor starter and motor branch-circuit configurations using compatible equipment.

Certifications

• Certification: UL Listed
