Square D HLL36035 Molded Case Circuit Breaker – 35 Amp – 3-Pole – 600 Volt – Feed-Through – PowerPact H-Frame
Select product condition:
Couldn't load pickup availability
Ask an expert

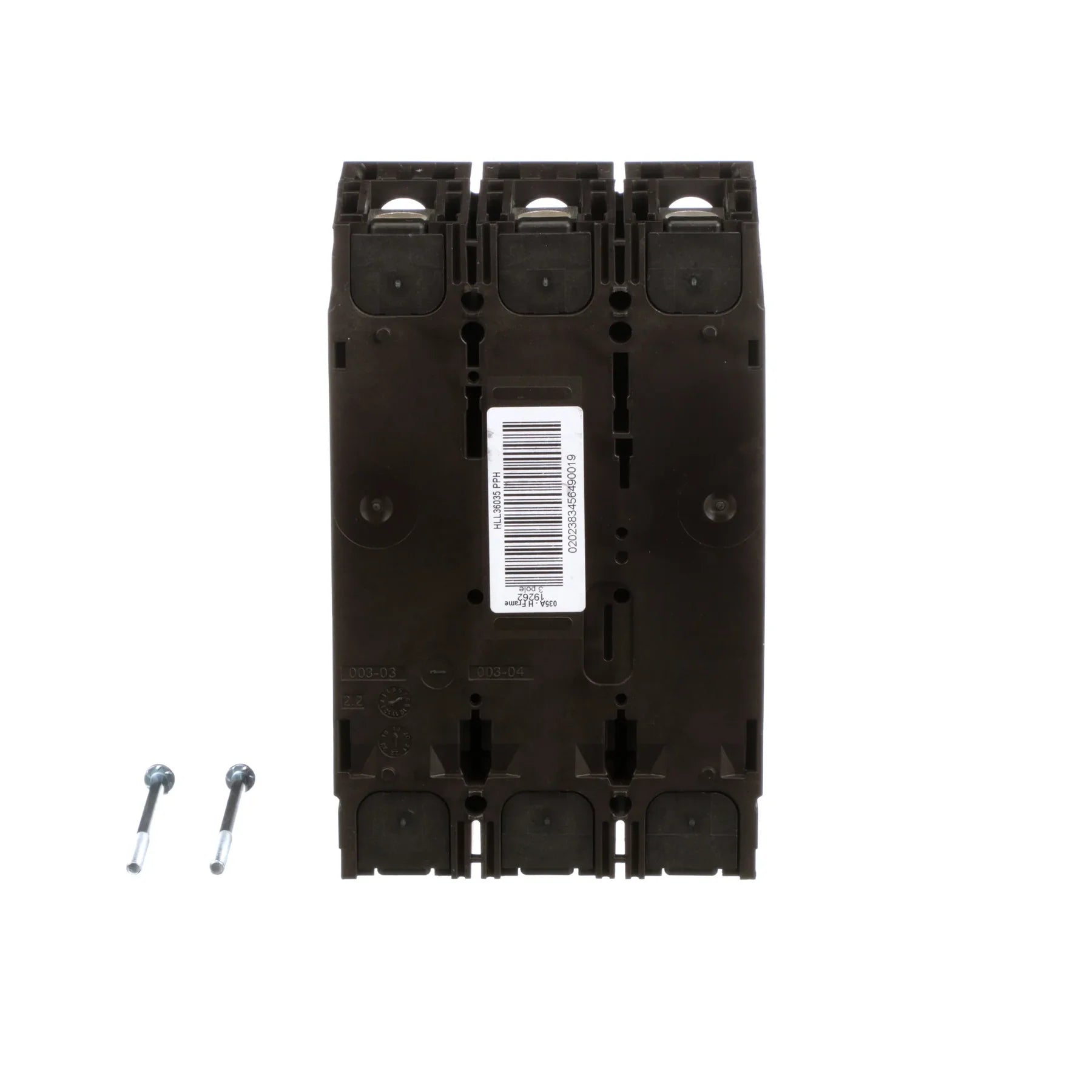

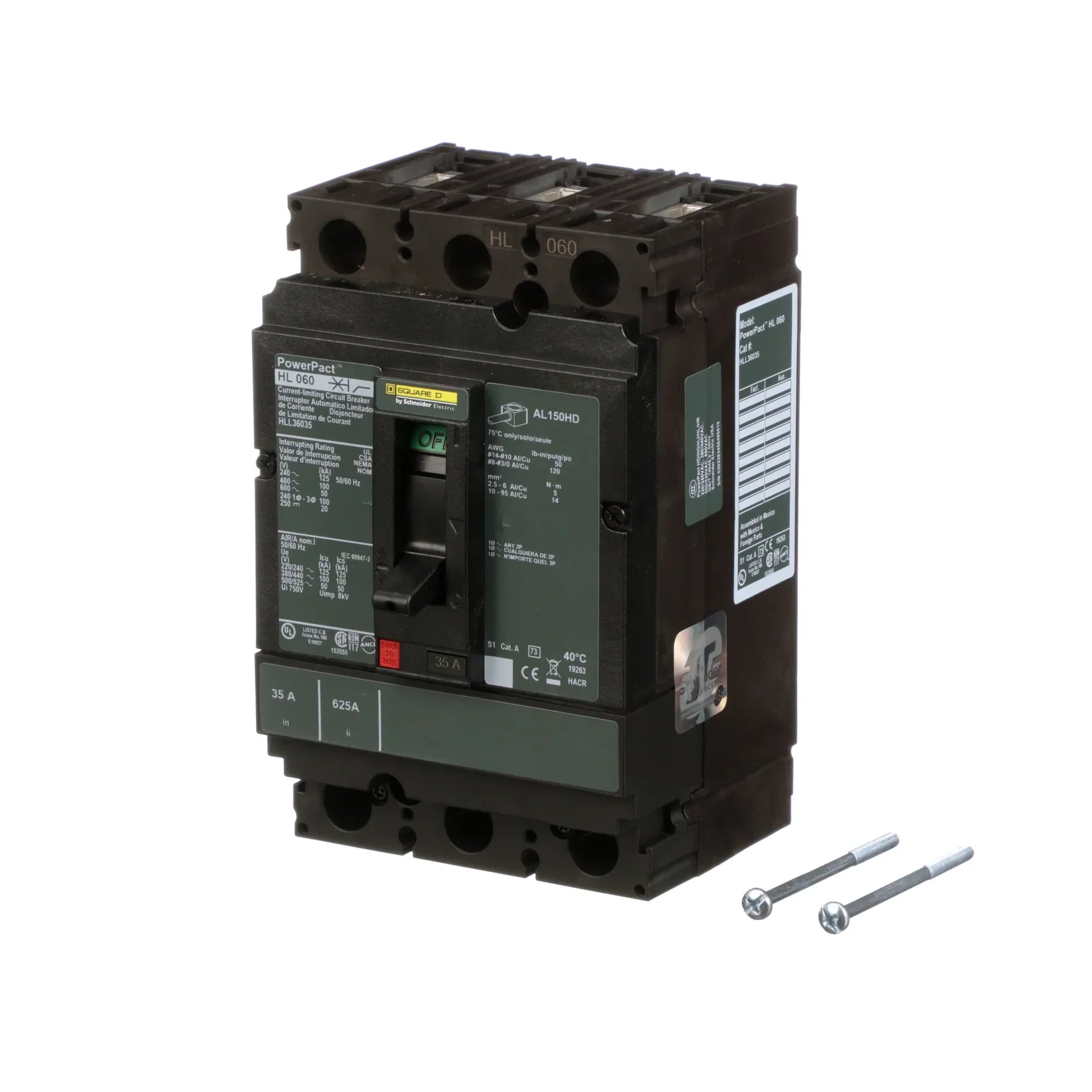

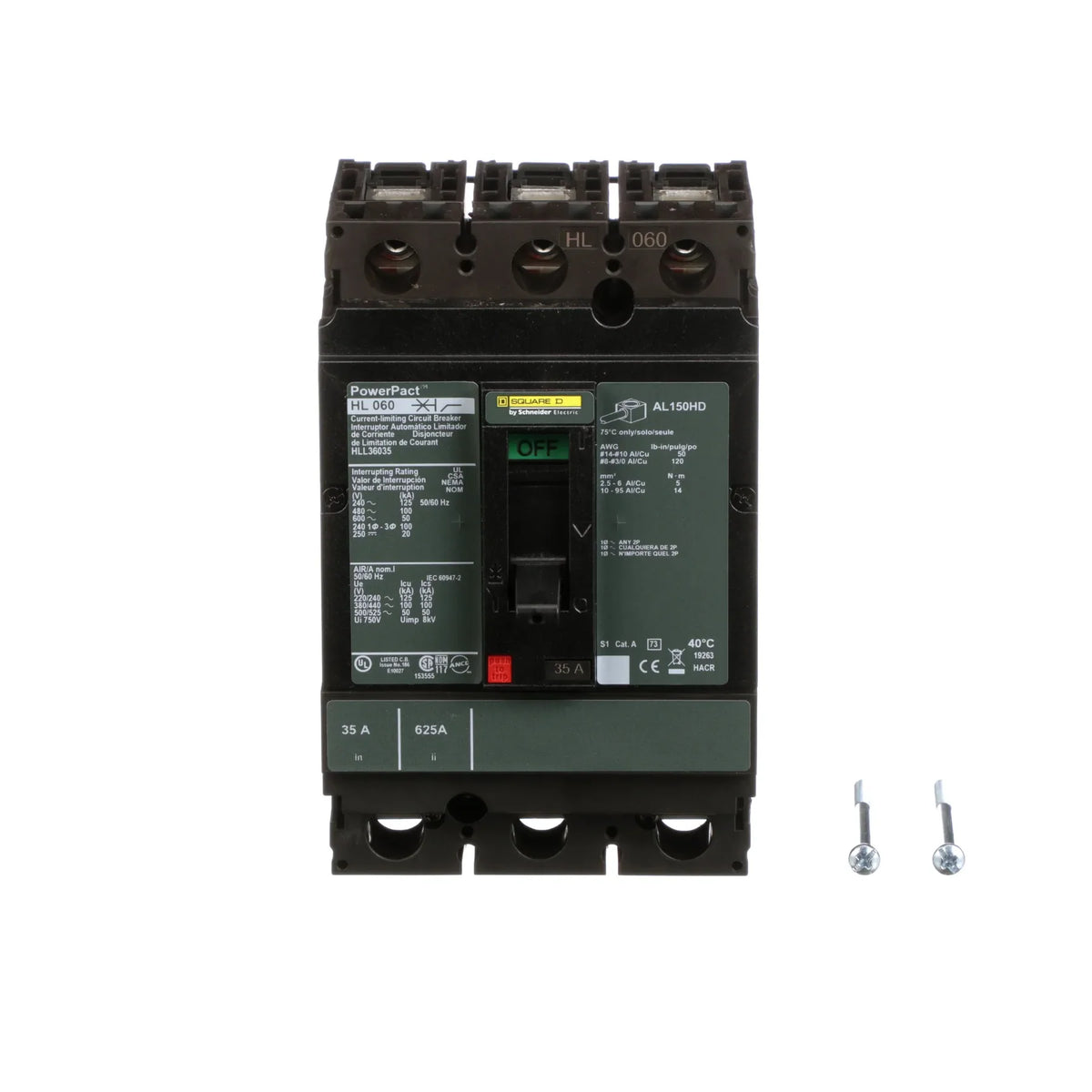

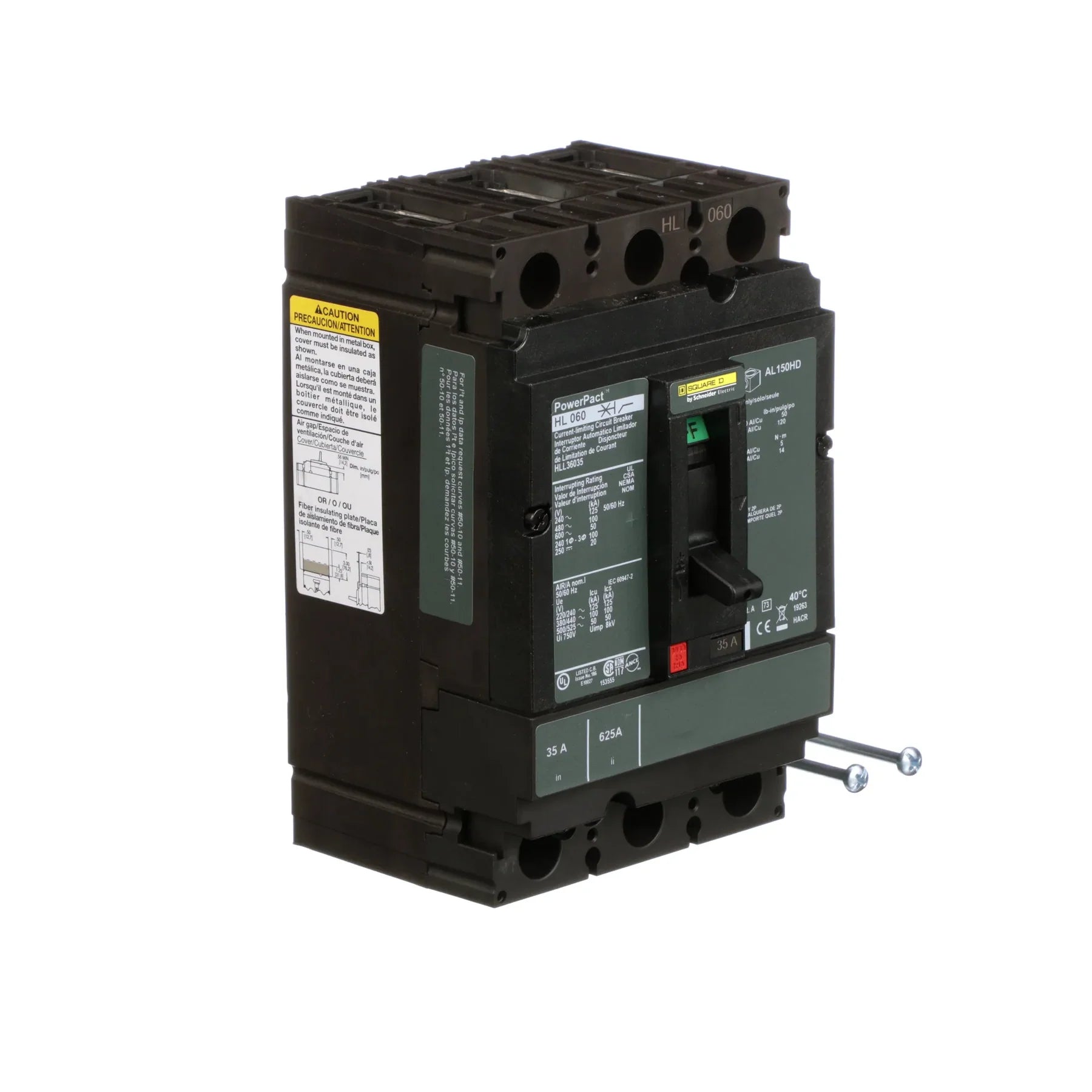

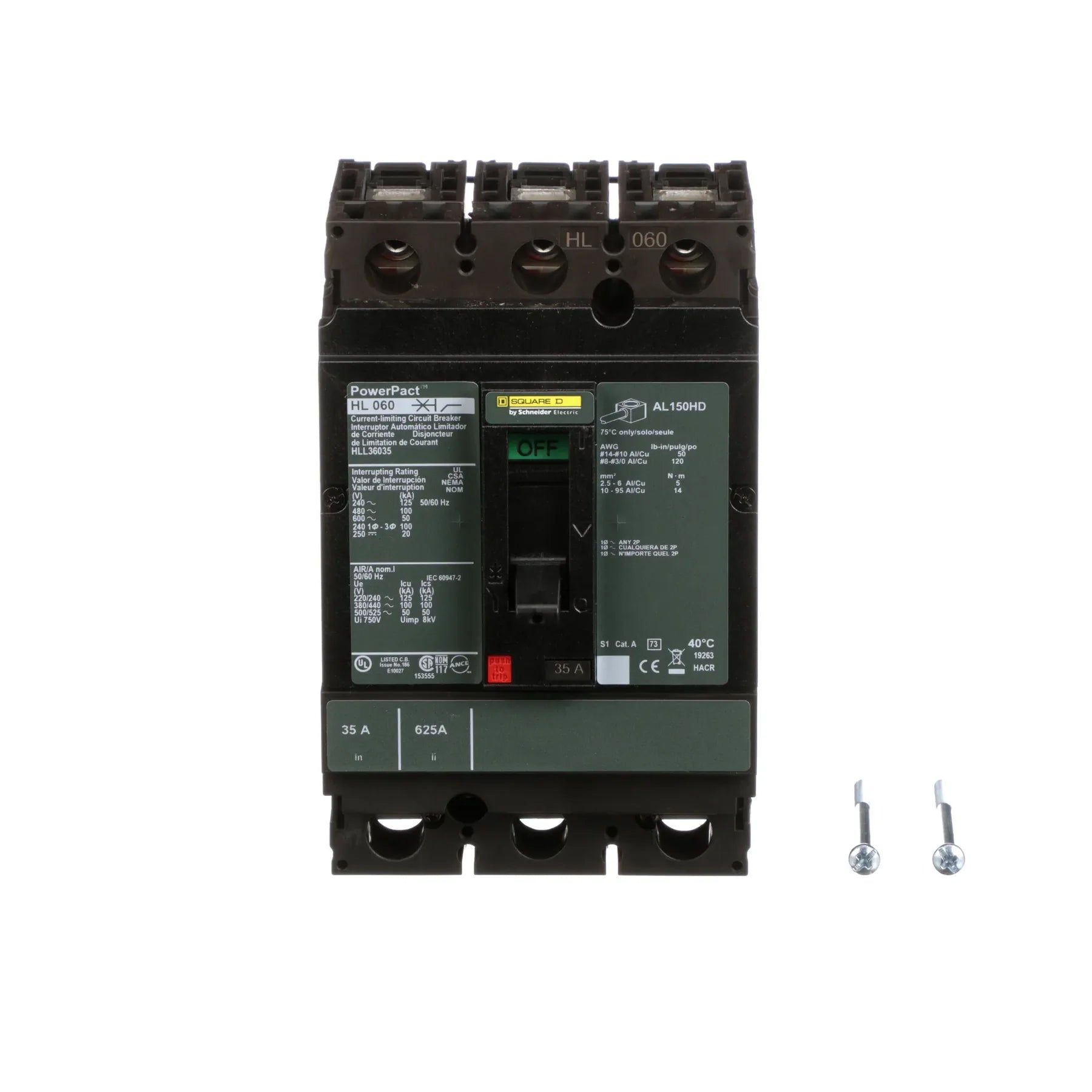

The Square D HLL36035 is a 35 Amp, 3-pole molded case circuit breaker manufactured by Square D. It is rated for 600 volts and features a feed-through connection configuration. It belongs to the PowerPact H-Frame circuit breaker family.
Specifications
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Type: Molded Case Circuit Breaker (MCCB)
- Product Family: PowerPact H-Frame
- Breaker Type: HLL
- Part Number / MPN: HLL36035
- Primary Rating: 35 Amp
- Poles / Configuration: 3 Pole
- Voltage: 600 Volt AC
- Interrupting Capacity: 50 kA at 600 V; 100 kA at 480 V; 125 kA at 240 V
- DC Voltage: 250 V DC
- Connection: Feed-Through
- Terminal Configuration: Line and Load Lugs
- Protection: Thermal Magnetic
- Trip Functions: LI – Long-Time and Instantaneous
- Frame Size: H-Frame (150 A Frame)
- Mounting: Unit Mount
- Series: PowerPact H
Part Numbers & Identification
- Manufacturer: Schneider Electric
- Brand: Square D
- Catalog Number: HLL36035
- MPN: HLL36035
- Product Family: PowerPact H-Frame
- Breaker Type: HLL
- Frame Rating: 150 A
- Current Rating: 35 A
- Pole Count: 3 Pole
- Voltage Rating: 600 V AC
- Interrupting Rating: 50 kA at 600 V
- Connection Configuration: Feed-Through
- Product Type: Molded Case Circuit Breaker
- UPC: 785901683124
Compatibility
The Square D HLL36035 belongs to the PowerPact H-Frame circuit breaker family.
- Compatible Frame Family: PowerPact H-Frame
- Compatible Panelboards: Square D panelboards designed for compatible H-Frame breakers
- Related Breaker Series: HDL, HGL, HJL, HLL, and HRL
- Mounting Configurations: Unit Mount, I-Line, and Drawout configurations are available within the H-Frame product family.
Certifications
- UL 489: Listed
- CSA: Certified
- NEMA: Compliant
- NMX: Certified
- VDE: Certified
- BS: Certified
- CCC: Certified
- IEC: Certified
- CE: Marked
- Type Circuit Breakers
- Vendor Schneider Electric
- Brand Square D
- Electrical Rating Feed-Thru - 35 Amp - 3 Pole - 600 Volt
