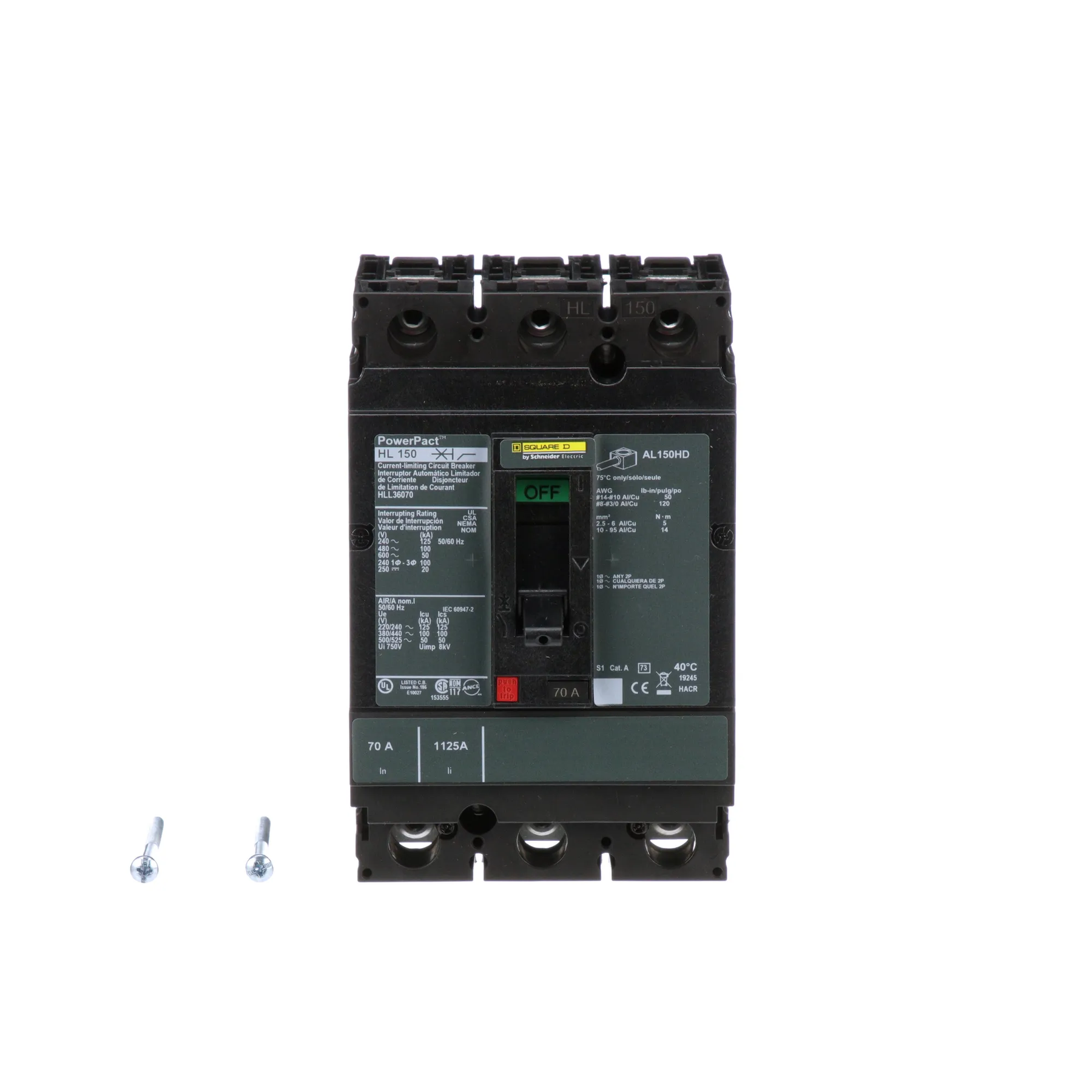

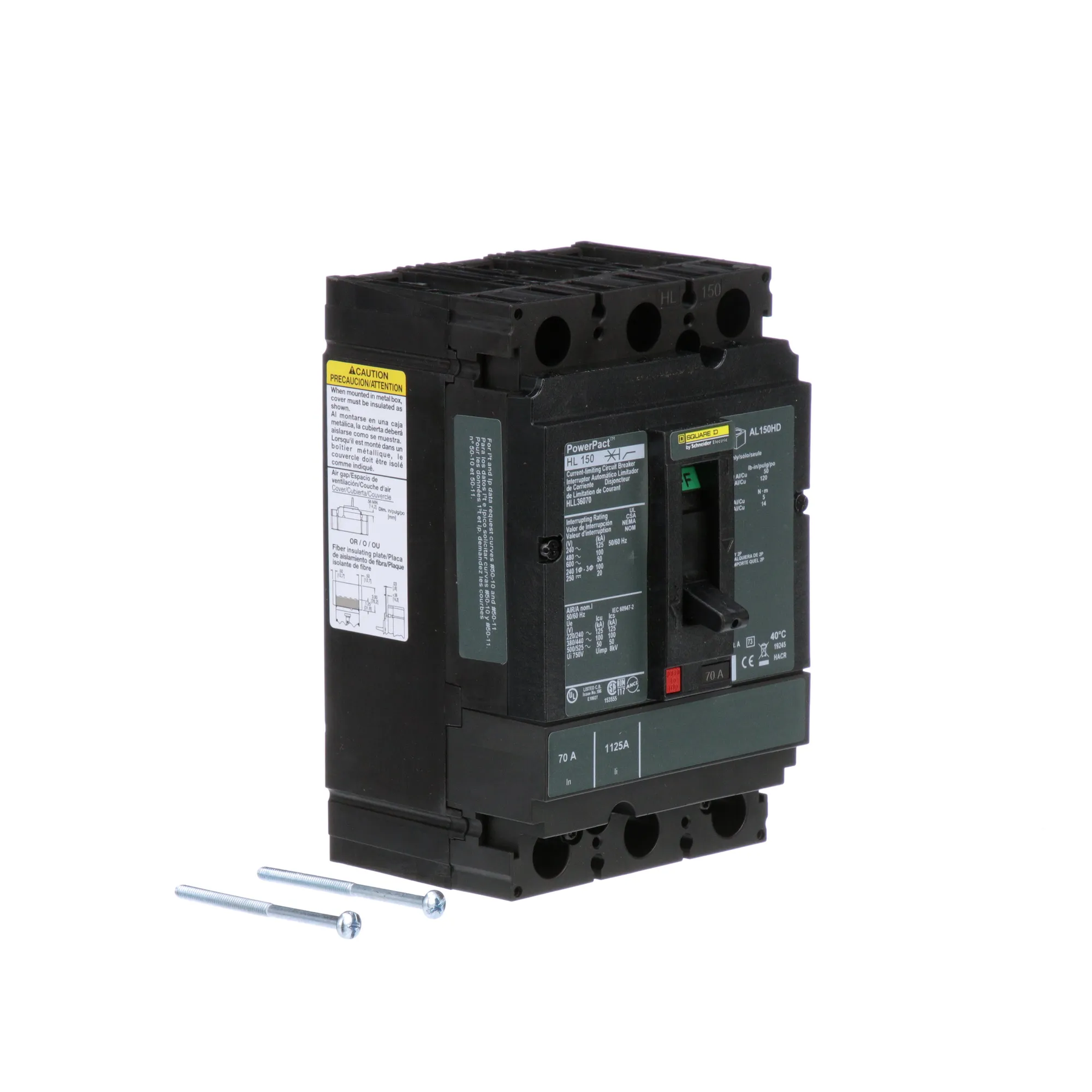

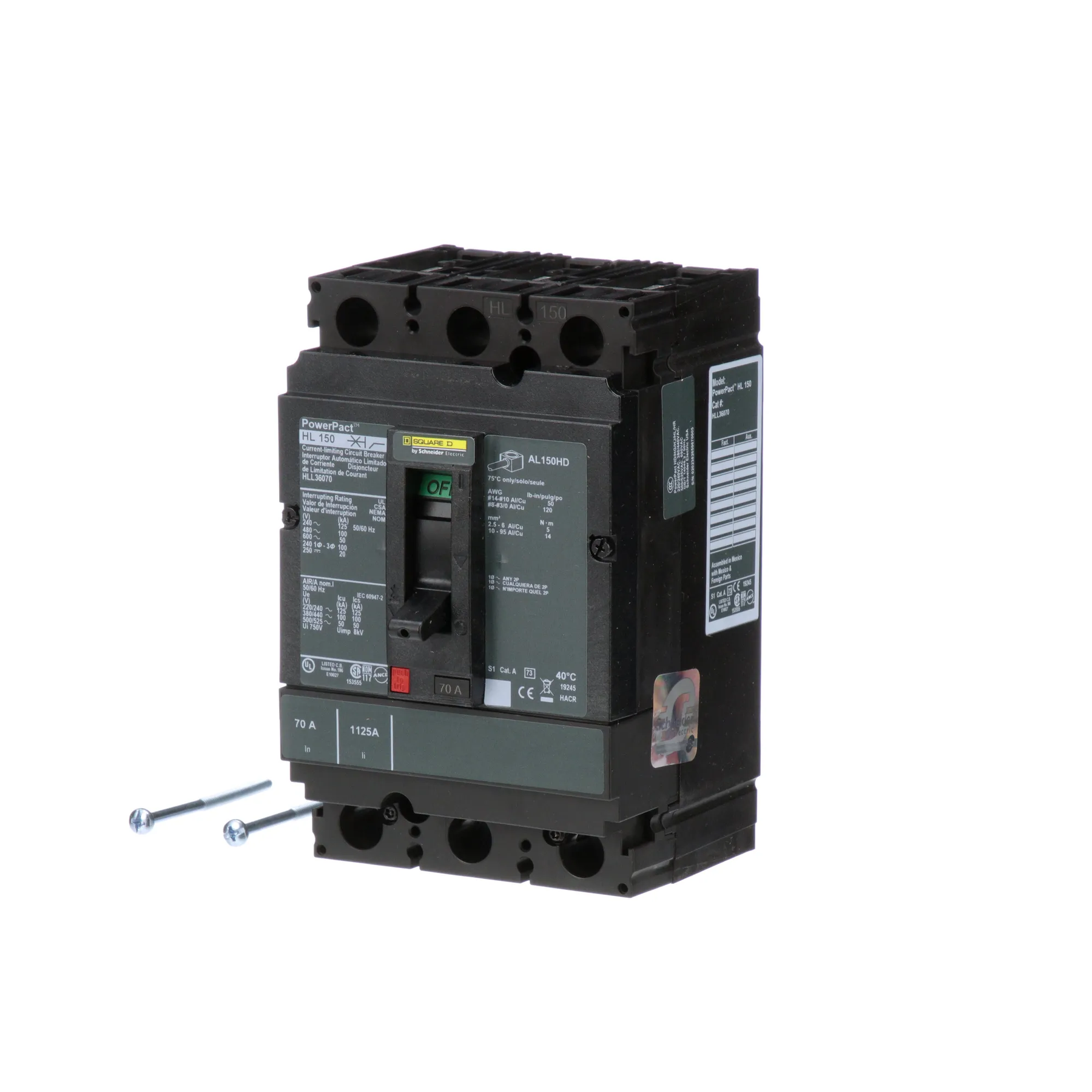

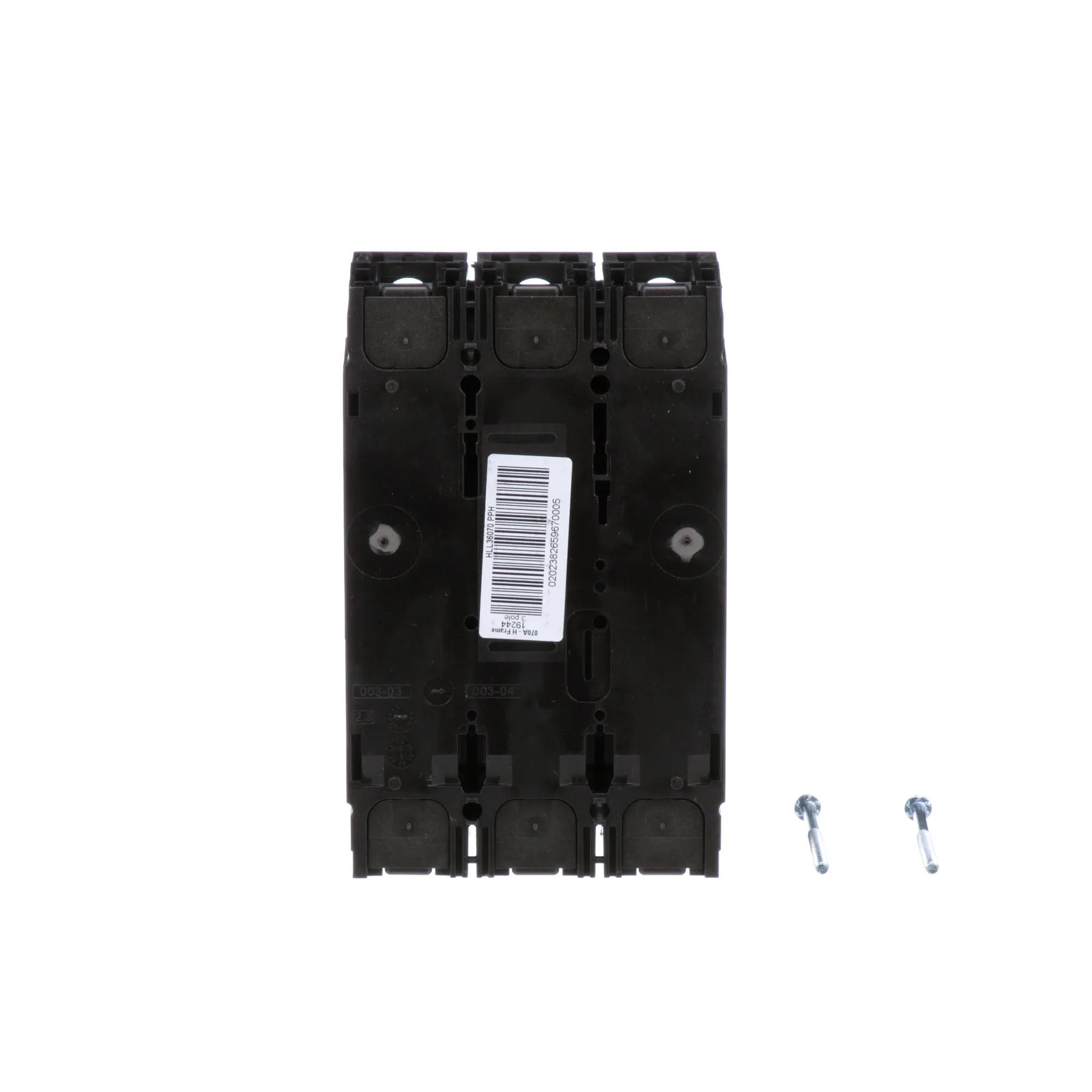

Square D HLL36070 Molded Case Circuit Breaker – 70A – 3-Pole / 3-Phase – 600V – 100kA @ 480V – Feed-Thru – PowerPact HLL Series

The Square D HLL36070 is a 70A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Square D / Schneider Electric PowerPact HLL Series. It features current-limiting construction and is designed for compatible electrical distribution and overcurrent protection applications.

The HLL36070 is rated for 600V and provides a 100kA interrupting rating at 480V. It features a feed-thru configuration, line- and load-side lug terminals, and a non-interchangeable trip with Long-Time and Instantaneous (LI) trip functions. The breaker is UL Listed, suitable for reverse-fed applications, and supplied as a complete breaker.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HLL
• Type: HLL
• Catalog No.: HLL36070
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Current Limiting: Current Limiting
• Mounting / Connection: Feed-Thru
• Breaker Configuration: Complete Breaker
• Terminal Type: Line- and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HLL36070
• Catalog Number: HLL36070
• Model: HLL36070
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HLL
• Type: HLL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 70A
• Rated Current: 70A
• Rated Voltage: 600V
• Trip Configuration: Non-Interchangeable LI
• UPC:785901883821

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact HLL Series electrical distribution equipment that accepts HLL Series molded case circuit breakers. The HLL36070 provides 70A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features current-limiting construction, a feed-thru configuration, and line- and load-side lug terminals. It is also suitable for reverse-fed applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact HLL Series
• 70A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kA @ 480V Interrupting Rating
• Current Limiting
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
• Suitable for Reverse-Fed Applications
• Complete Breaker
