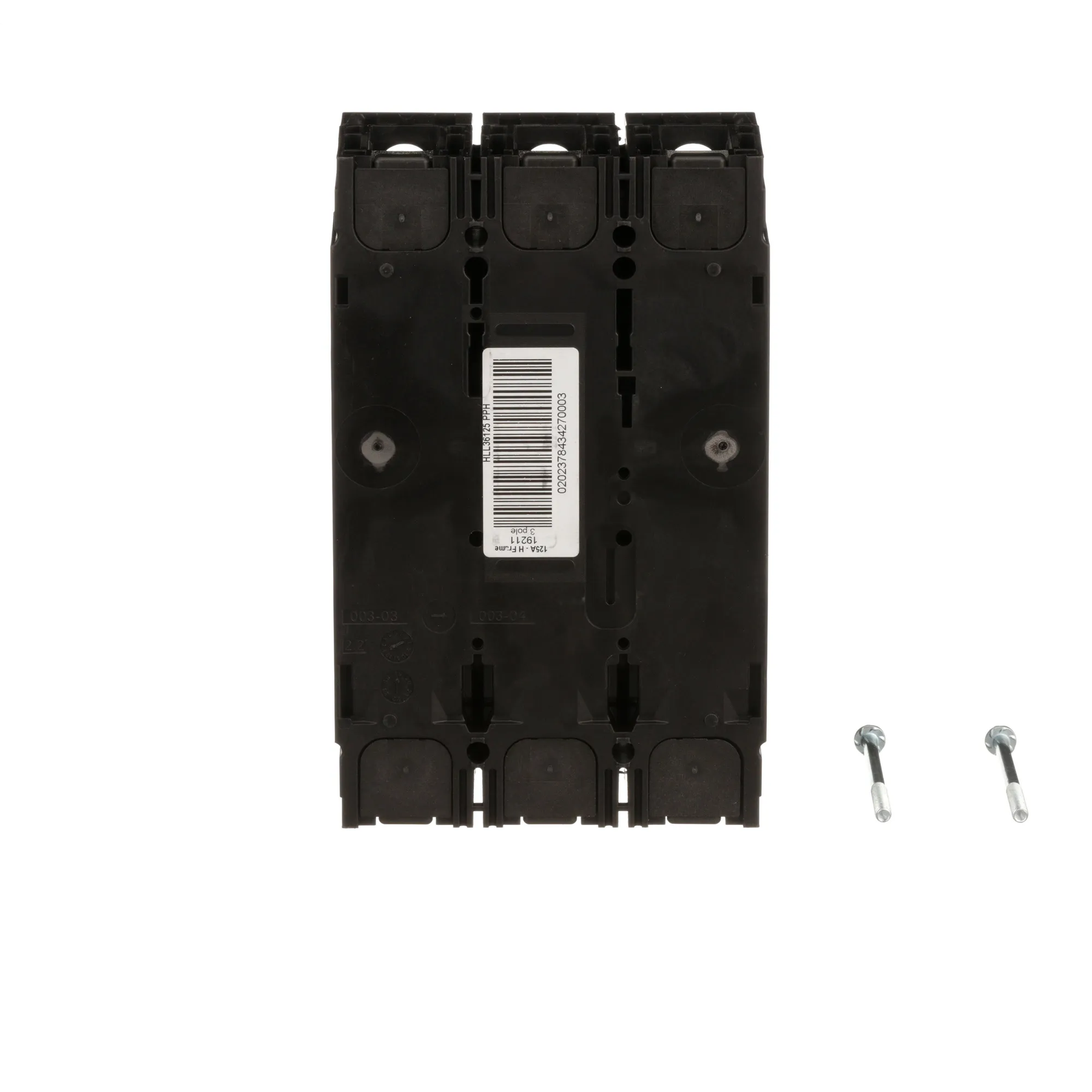

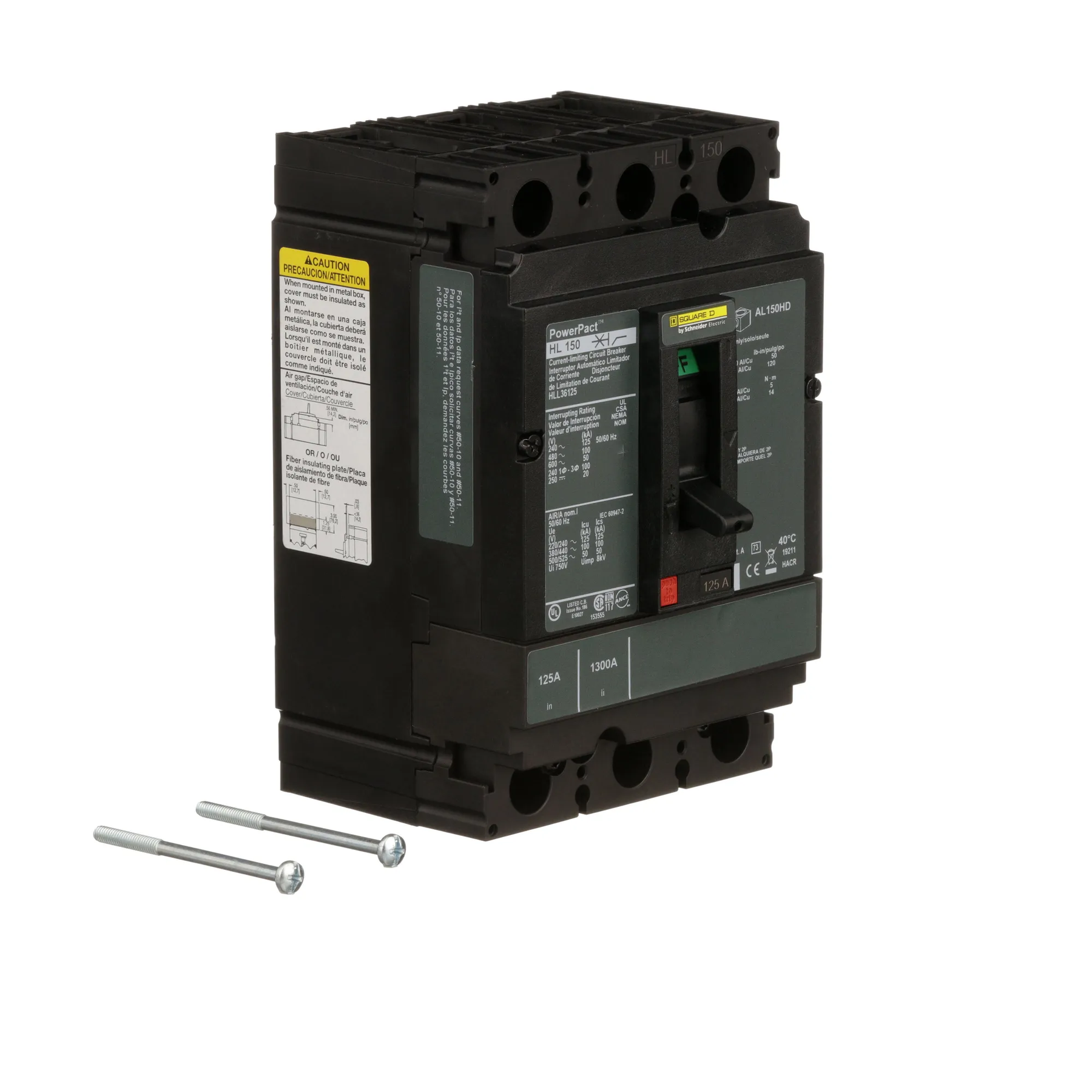

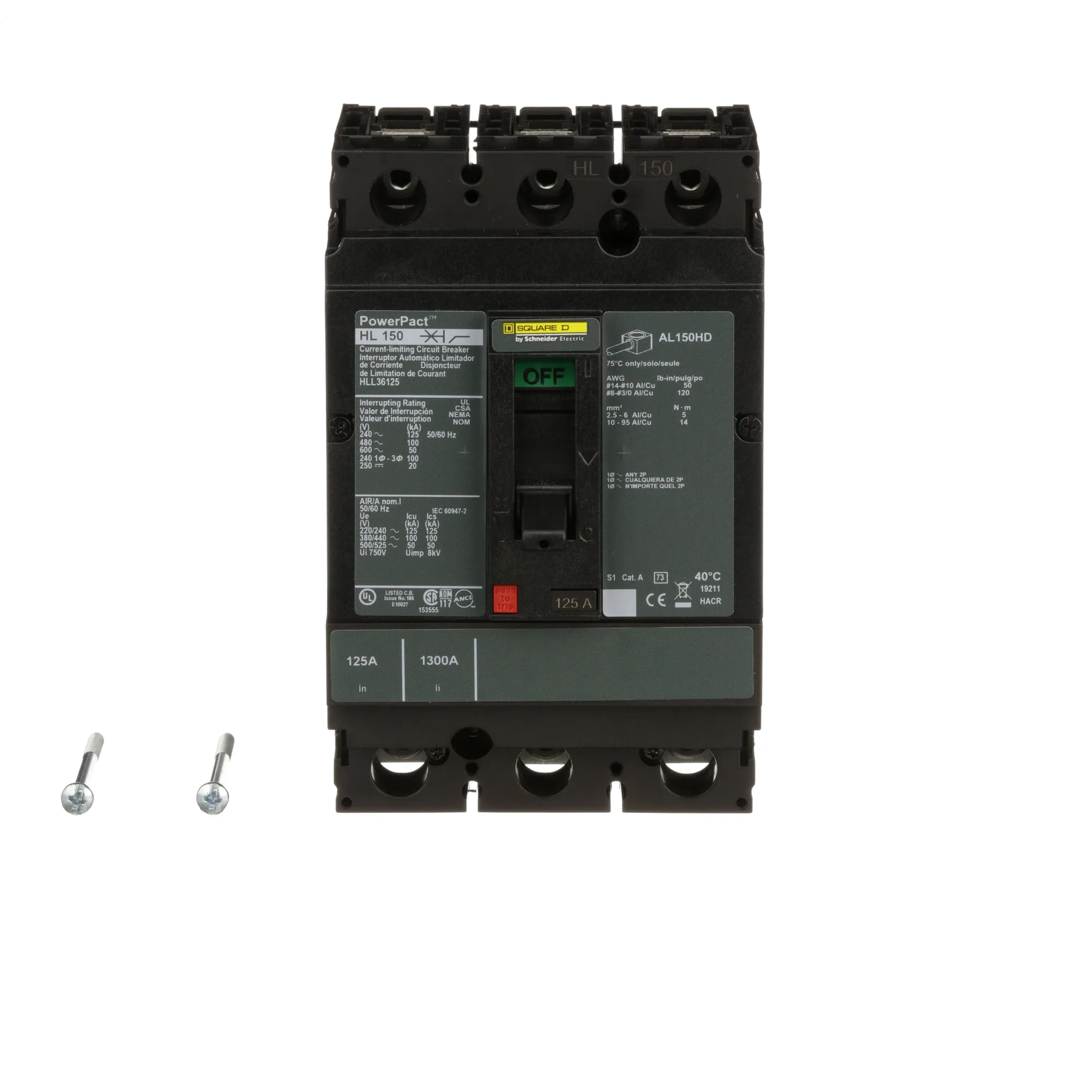

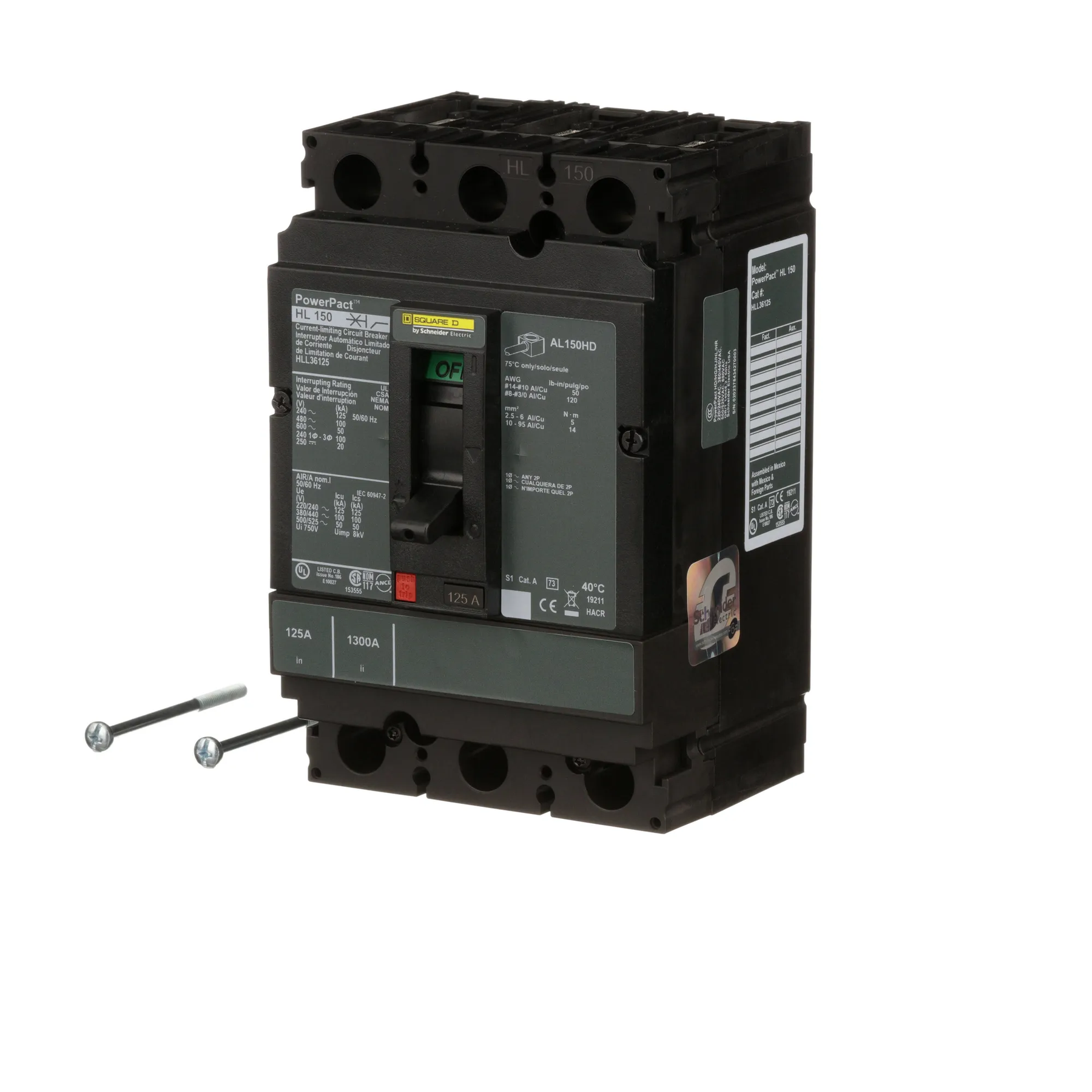

Square D HLL36125 Molded Case Circuit Breaker – 125A – 3-Pole / 3-Phase – 600V – 100kA @ 480V – Feed-Thru – PowerPact HLL Series

The Square D HLL36125 is a 125A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type HLL Series. It is designed for compatible electrical distribution applications and provides thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The HLL36125 is rated for 600V and provides a 100kA interrupting rating at 480V with current-limiting construction. It features a feed-thru configuration, line- and load-side lug terminals, and a non-interchangeable trip. The breaker is supplied as a complete breaker, is UL Listed, and is suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HLL
• Type: HLL
• Catalog No.: HLL36125
• Current Rating: 125A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Current Limiting: Current Limiting
• Breaker Configuration: Complete Breaker
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HLL36125
• Catalog Number: HLL36125
• Model: HLL36125
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HLL
• Type: HLL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 125A
• Trip Configuration: Non-Interchangeable LI
• Current Rating: 125A
• UPC:785901953043

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact HLL Series electrical distribution equipment that accepts HLL Series molded case circuit breakers. The HLL36125 provides 125A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features current-limiting construction, a 100kA interrupting rating at 480V, feed-thru configuration, and line- and load-side lug terminals. It is also suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, reverse-feed requirements, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact HLL Series
• 125A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kA @ 480V Interrupting Rating
• Current Limiting
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
• Suitable for Reverse-Fed Applications
• Complete Breaker
