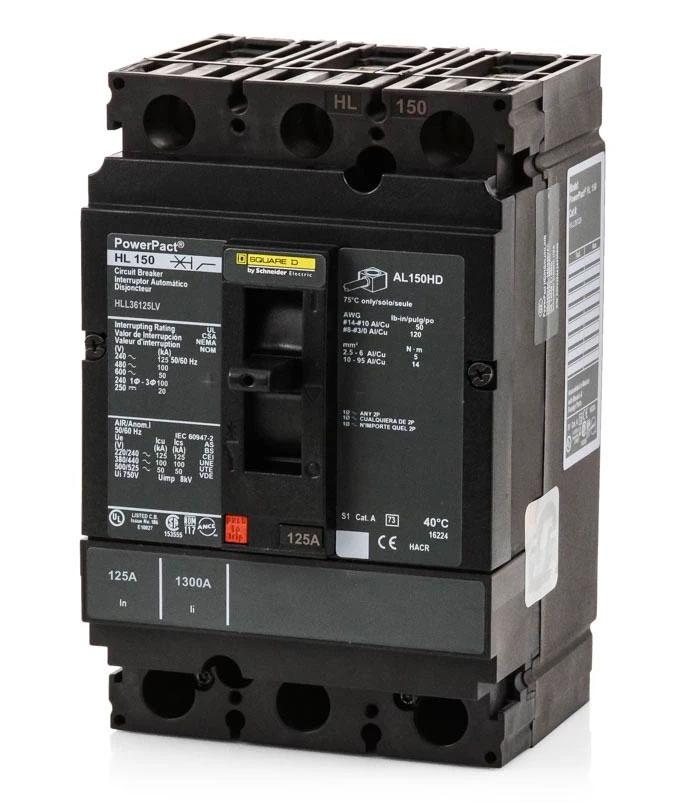

Square D HLL36125LV 125 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 100 kA@480 V – Current Limiting – PowerPact HLL

The Square D HLL36125LV is a 125 Amp, 3-pole, 3-phase molded case circuit breaker from the Schneider Electric / Square D PowerPact Series, Type HLL. It is rated for 600 V and provides a 100 kA interrupting rating at 480 V with current-limiting protection.

The breaker features thermal-magnetic protection with a non-interchangeable trip unit and LI (Long-Time and Instantaneous) trip functions. It includes feed-thru connections and line- and load-side lug terminals. The breaker is UL listed and suitable for reverse-fed applications.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact
• Type: HLL
• Catalog Number / MPN: HLL36125LV
• Primary Rating: 125 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 100 kA @ 480 V
• Interrupting Capacity: Current Limiting
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Reverse-Feed Suitability: Suitable for Reverse-Fed Applications
• UL Listing: UL Listed

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: HLL36125LV
• Series: PowerPact
• Type: HLL
• Current Rating: 125 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:785903699214

Compatibility

The Square D HLL36125LV is intended for compatible Schneider Electric / Square D PowerPact HLL electrical distribution applications, including suitable reverse-fed installations.

Certifications

• UL Listed
• Reverse-Feed Suitability: Suitable for reverse-fed applications.
