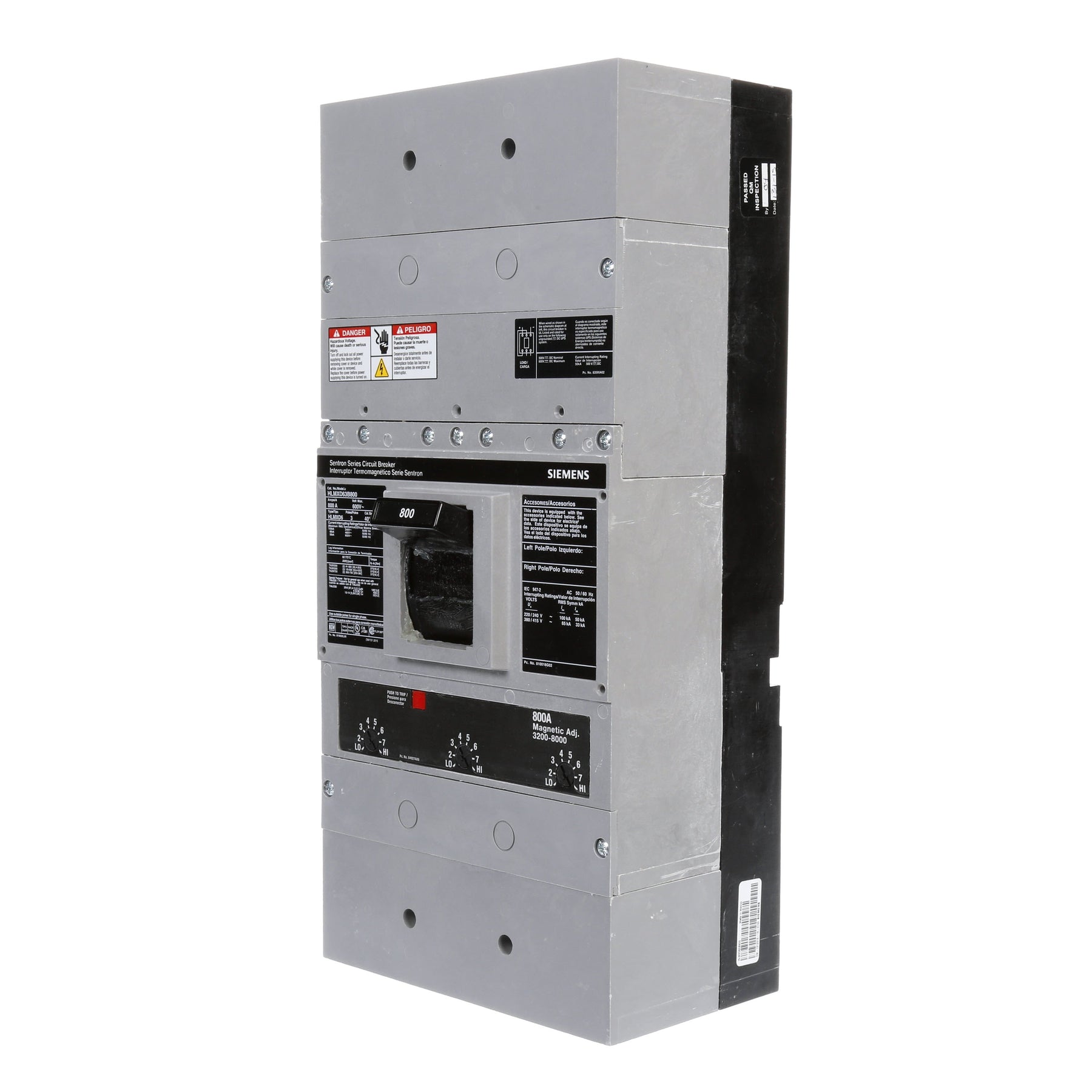

Siemens HLMXD63B800 800 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Bolt-On – SENTRON Series

The Siemens HLMXD63B800 is an 800 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON Series, Type HLMXD. It is rated for 600 V with a 65 kA interrupting rating at 480 V and features high interrupting capacity with thermal-magnetic protection. The breaker is designed for 40°C applications with bolt-on mounting, a non-interchangeable trip unit. It is UL listed for reverse connection applications.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: HLMXD
• Catalog Number / MPN: HLMXD63B800
• Primary Rating: 800 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Interrupting Capacity: High
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Ambient Temperature Rating: 40°C
• Connection / Mounting: Bolt-On
• Application: Acceptable for Reverse Connection

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: HLMXD63B800
• Series: SENTRON
• Type: HLMXD
• Current Rating: 800 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Connection: Bolt-On

Compatibility

The Siemens HLMXD63B800 is designed for compatible Siemens SENTRON Type HLMXD electrical distribution applications and reverse connection installations.

Certifications

• UL Listed
