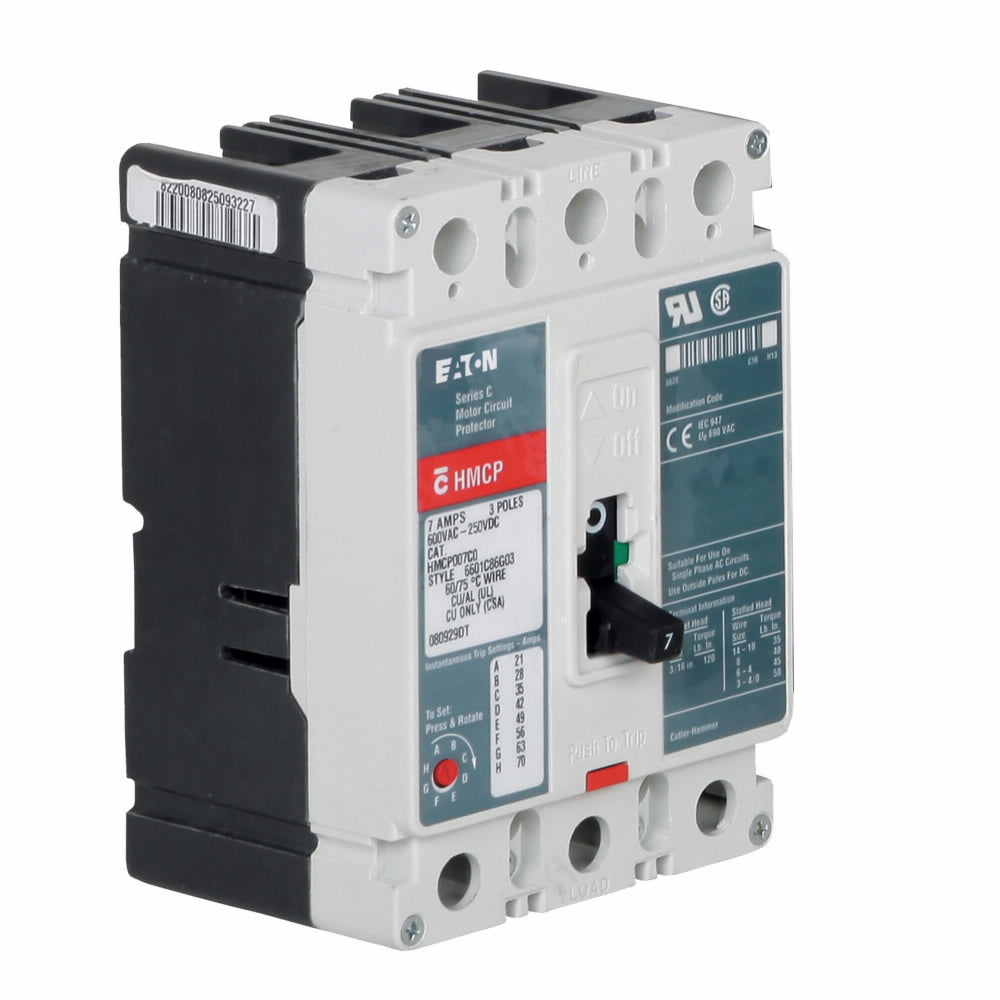

Eaton HMCP007C0C Molded Case Circuit Breaker – 7A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – Series C HMCP

The Eaton HMCP007C0C is a 7A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Eaton / Cutler-Hammer Series C Type HMCP F-Frame. It provides magnetic-only, instantaneous protection rather than thermal-magnetic protection.

The HMCP007C0C is rated for 600V with a 65kA interrupting rating at 480V. It features a non-interchangeable instantaneous trip, a 21–70A magnetic range, and a 1.5–5.7A motor FLA range. The breaker has a feed-thru configuration and includes non-aluminum line- and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series C
• Series: Series C
• Type: HMCP
• Frame: F-Frame
• Catalog No.: HMCP007C0C
• Current Rating: 7A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I)
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Configuration: Non-Aluminum Line- and Load-Side Lug Terminals
• Magnetic Range: 21–70A
• Motor FLA Range: 1.5–5.7A
• Application: Motor Circuit Protection
• Brand: Eaton / Cutler-Hammer
• Authenticity: Not Specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCP007C0C
• Catalog Number: HMCP007C0C
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HMCP
• Frame: F-Frame
• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Model: HMCP007C0C
• Breaker Configuration: 3-Pole, 7A
• upc:786679150801

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type HMCP motor circuit protection applications. The HMCP007C0C is a 3-pole, 7A MCP with magnetic-only instantaneous protection, a 21–70A magnetic range, and a 1.5–5.7A motor FLA range.

The breaker is configured for feed-thru applications and includes non-aluminum line- and load-side lug terminals. Always verify the specific motor application, panelboard or electrical equipment model, approved breaker/MCP type, system voltage, available fault current, pole configuration, magnetic trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• Series C HMCP
• F-Frame
• 7A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• Magnetic-Only Protection
• Instantaneous (I) Protection
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Non-Aluminum Line- and Load-Side Lug Terminals
• 21–70A Magnetic Range
• 1.5–5.7A Motor FLA Range
• Motor Circuit Protector (MCP)
• Genuine Eaton / Cutler-Hammer Product
