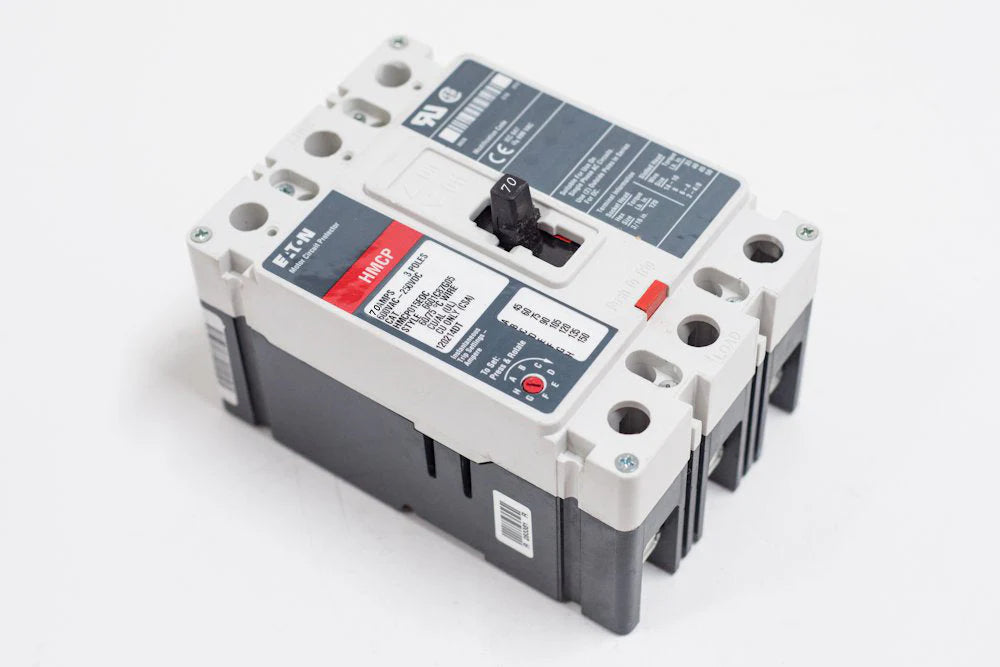

Eaton HMCP070J2 70 Amp Motor Circuit Protector – 3 Pole – 600 V – 65 kA@480 V – Feed-Thru – Series C

The Eaton HMCP070J2 is a 70 Amp, 3-pole, 3-phase magnetic motor circuit protector from the Eaton / Cutler-Hammer Series C, Type HMCP, F Frame. It is rated for 600 V with a 65 kA interrupting rating at 480 V and provides instantaneous-only protection. The breaker features a non-interchangeable trip, standard line and load-side lug terminals, and an adjustable magnetic range of 115–170 A.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Motor Circuit Protector
• Series: Series C
• Type: HMCP
• Frame: F Frame
• Catalog Number / MPN: HMCP070J2
• Primary Rating: 70 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Trip Type: Magnetic Only
• Trip Unit: Non-Interchangeable
• Trip Functions: I – Instantaneous Protection Only
• Connection / Mounting: Feed-Thru
• Terminals: Standard Line & Load-Side Lug Terminals
• Product Classification: MCP – Motor Circuit Protector
• Magnetic Range: 115–170 A
• Protection Type: Instantaneous Magnetic

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: HMCP070J2
• Series: Series C
• Type: HMCP
• Frame: F Frame
• Current Rating: 70 A
• Pole Count: 3 Pole
• Product Type: Motor Circuit Protector
• Trip Unit: Non-Interchangeable
• Trip Functions: I – Instantaneous Protection Only
• Connection: Feed-Thru
• Terminals: Standard Line & Load-Side Lug Terminals
• UPC:786679150894

Compatibility

The Eaton HMCP070J2 is designed for compatible Eaton / Cutler-Hammer Series C motor starter and motor circuit protection applications.
