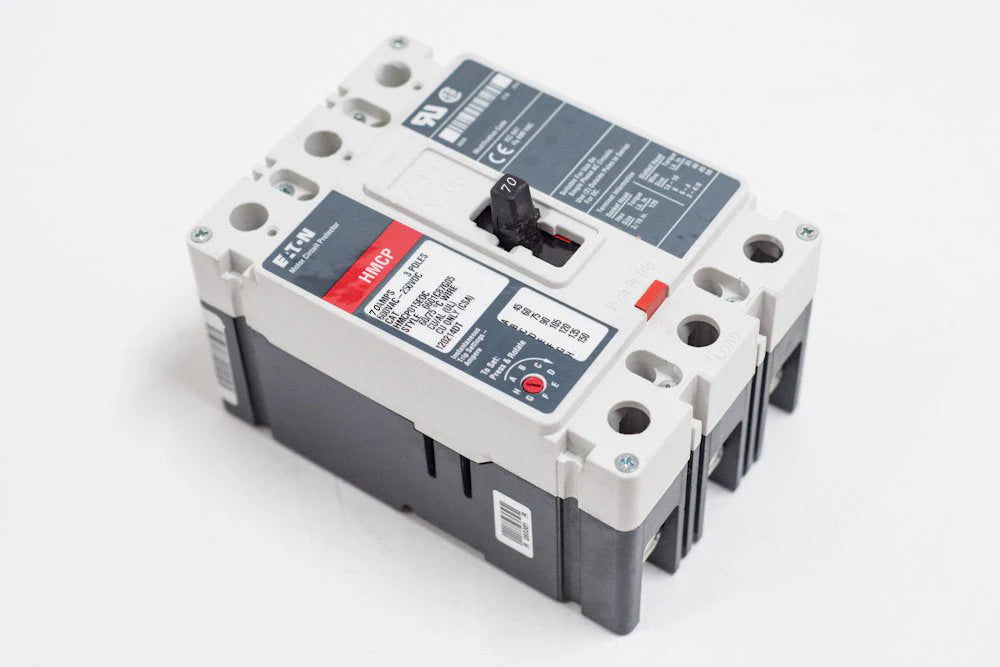

Eaton HMCP070J2Y 70 Amp Motor Circuit Protector – 3 Pole – 600 V – 65 kA@480 V – Feed-Thru – Series C

The Eaton HMCP070J2Y is a 70 Amp, 3-pole motor circuit protector from the Eaton / Cutler-Hammer Series C, Type HMCP, F-Frame product range. Rated for 600 V, it provides a 65 kA interrupting rating at 480 V. This magnetic-only device features a non-interchangeable trip unit with instantaneous protection only. It is designed for motor circuit protection applications and includes standard line and load-side lug terminals, with a magnetic adjustment range of 115–170 A.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Motor Circuit Protector (MCP)
• Series: Series C
• Type: HMCP
• Frame: F Frame
• Catalog Number / MPN: HMCP070J2Y
• Primary Rating: 70 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Trip Type: Magnetic Only
• Trip Unit: Non-Interchangeable
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 115–170 A
• Connection / Mounting: Feed-Thru
• Terminals: Standard Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: HMCP070J2Y
• Series: Series C
• Type: HMCP
• Frame: F Frame
• Current Rating: 70 A
• Pole Count: 3 Pole
• Product Type: Magnetic-Only Motor Circuit Protector
• Trip Unit: Non-Interchangeable
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 115–170 A
• Connection: Feed-Thru
• Terminals: Standard Line & Load-Side Lug Terminals

Compatibility

The Eaton HMCP070J2Y is intended for compatible Eaton / Cutler-Hammer Series C motor control and motor starter applications.
