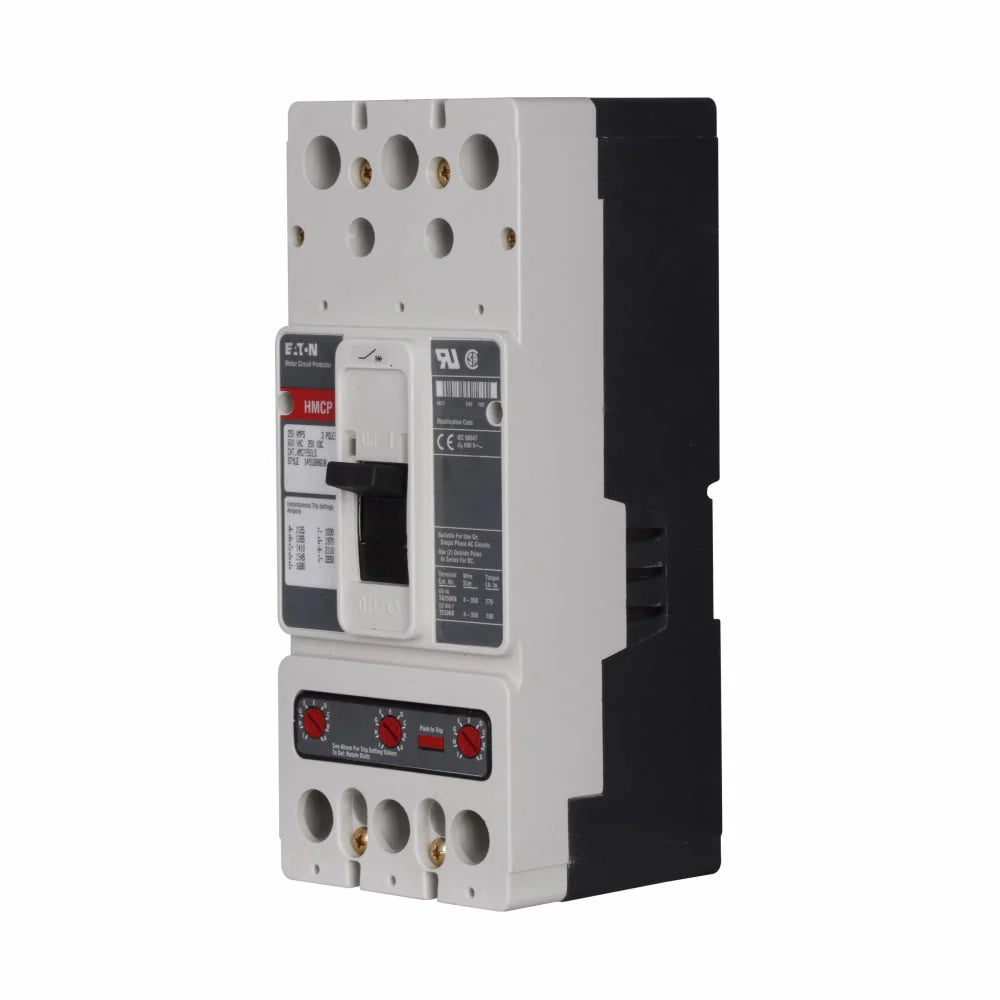

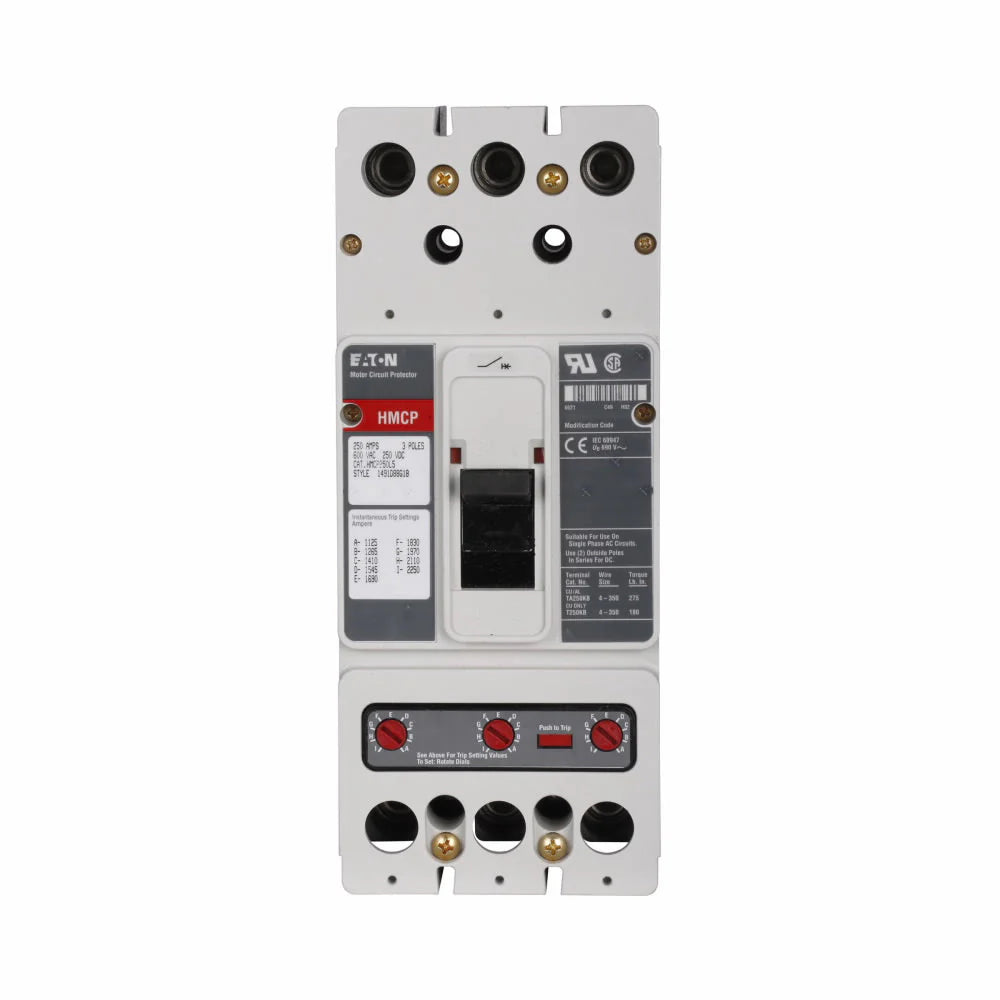

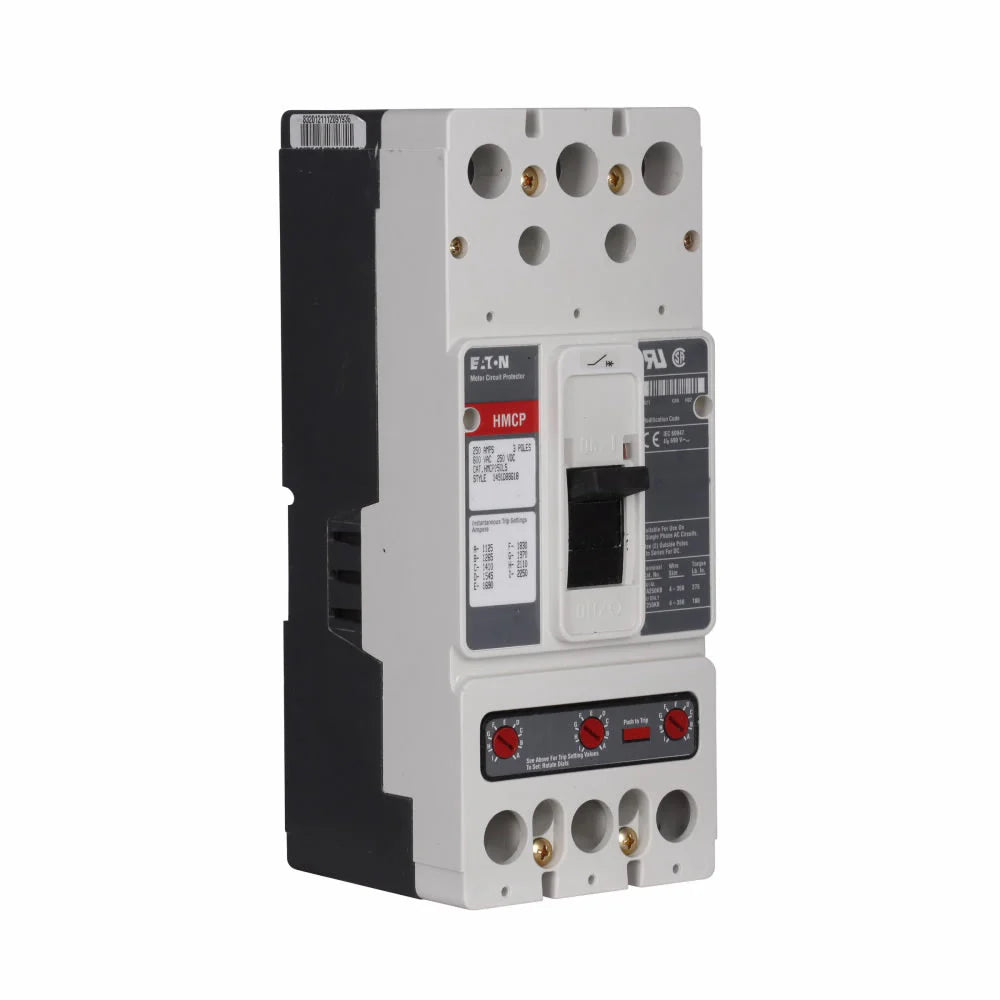

Eaton Cutler-Hammer HMCP250G5Y 250 Amp Motor Circuit Protector – 3 Pole – 600V – 35 kA @ 480V – Series C

The Eaton Cutler-Hammer HMCP250G5Y is a Series C Type HMCP, J-frame, 250A, three-pole motor circuit protector designed for motor circuit applications. It provides instantaneous magnetic-only protection with a magnetic trip range of 750–1500A. The unit features a 600V rating, 35 kA interrupting capacity at 480V, feed-through construction, and non-aluminum line- and load-side lug terminals.

Specifications

• Brand: Eaton / Cutler-Hammer / Westinghouse
• Series: Series C
• Type: HMCP
• Frame: J-frame
• Amperage Rating: 250A
• Number of Poles: 3
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Capacity: 35 kA @ 480V
• Connection Type: Feed-through
• Trip Function: Instantaneous protection only
• Trip Mechanism: Magnetic-only
• Magnetic Trip Range: 750–1500A
• Terminal Type: Line- and load-side lug terminals
• Terminal Material: Non-aluminum

Part Numbers & Identification

• MPN: HMCP250G5Y
• Manufacturer: Eaton
• Product Type: Motor Circuit Protector
• Frame Type: J-frame
• Series: C
• UPC:786679150436

Compatibility

Suitable for Eaton Series C motor control applications requiring a three-pole, 250A motor circuit protector with instantaneous magnetic protection and a magnetic trip range of 750–1500A.
