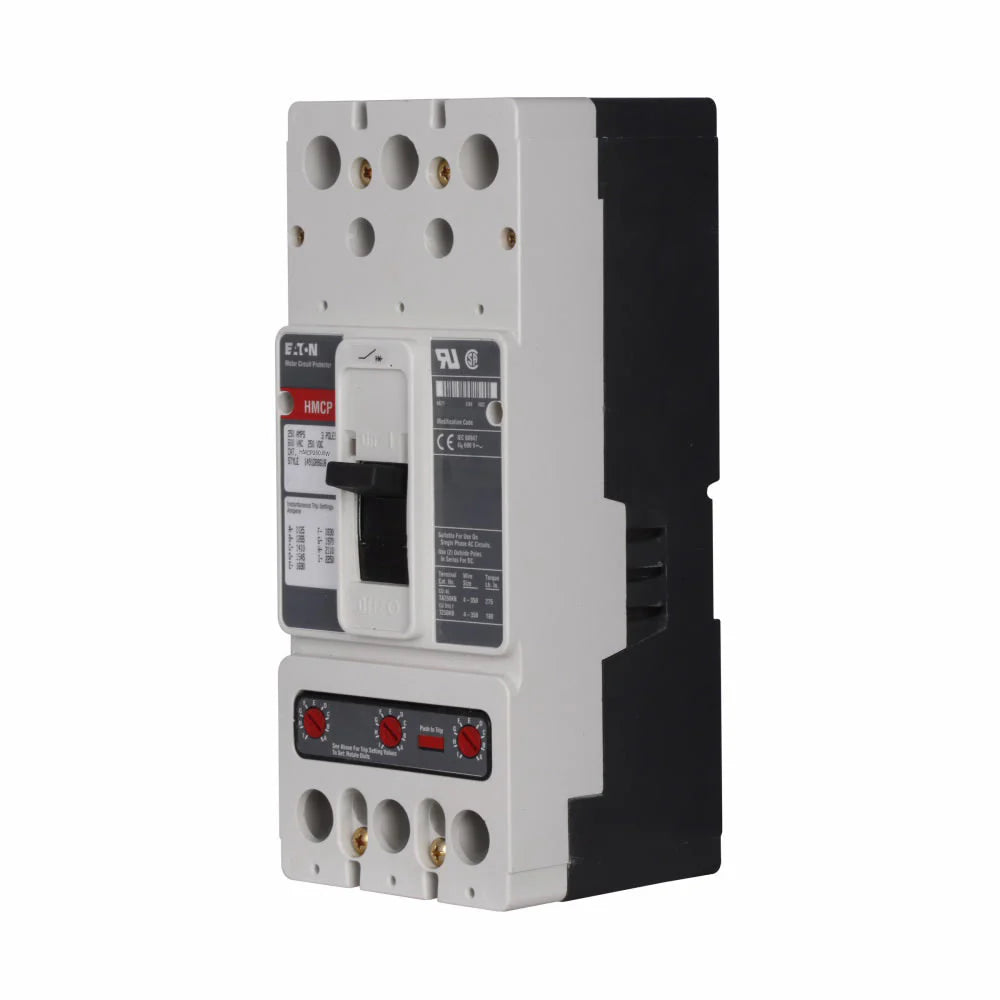

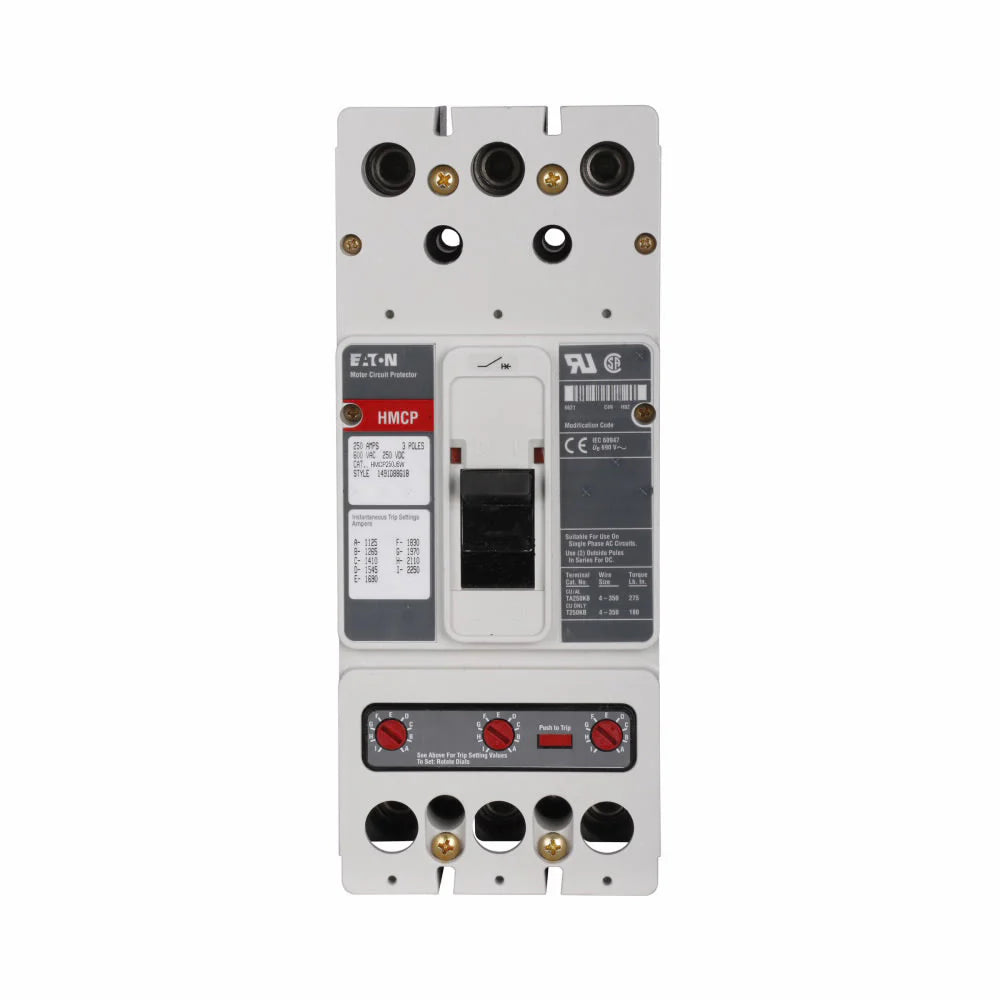

Eaton HMCP250J5W Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V – Key Capacity Not Specified – Bolt-On – Series C HMCP

The Eaton HMCP250J5W is a 250A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Eaton / Cutler-Hammer Series C HMCP family. It is designed for compatible motor circuit protection and electrical distribution applications.

The available product information identifies the breaker as a 250A, 3-pole, 600V bolt-on molded case circuit breaker. Specific interrupting rating, trip characteristics, terminal configuration, and other electrical specifications were not provided and should be verified before installation.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series C
• Series: HMCP
• Catalog No.: HMCP250J5W
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Mounting Type: Bolt-On
• Protection Type: Motor Circuit Protection (MCP)
• Interrupting Rating: Not specified
• Trip Characteristics: Not specified
• Terminal Configuration: Not specified
• Application: Motor Circuit Protection and Electrical Distribution
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCP250J5W
• Catalog Number: HMCP250J5W
• Model: HMCP250J5W
• Product Family: Eaton / Cutler-Hammer Series C HMCP
• Series: HMCP
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker / Motor Circuit Protector
• Breaker Configuration: 3-Pole, 250A
• UPC:786679151129

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C HMCP motor circuit protection equipment supporting a 250A, 3-pole bolt-on MCP. The HMCP250J5W is identified as a 600V molded case motor circuit protector for compatible motor and electrical distribution applications.

Always verify the specific panelboard or electrical equipment model, approved MCP type, system voltage, available fault current, motor requirements, pole configuration, trip characteristics, terminal arrangement, and installation requirements before installation.

Certifications:

• Series C HMCP
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• Bolt-On Mounting
• Motor Circuit Protector (MCP)
