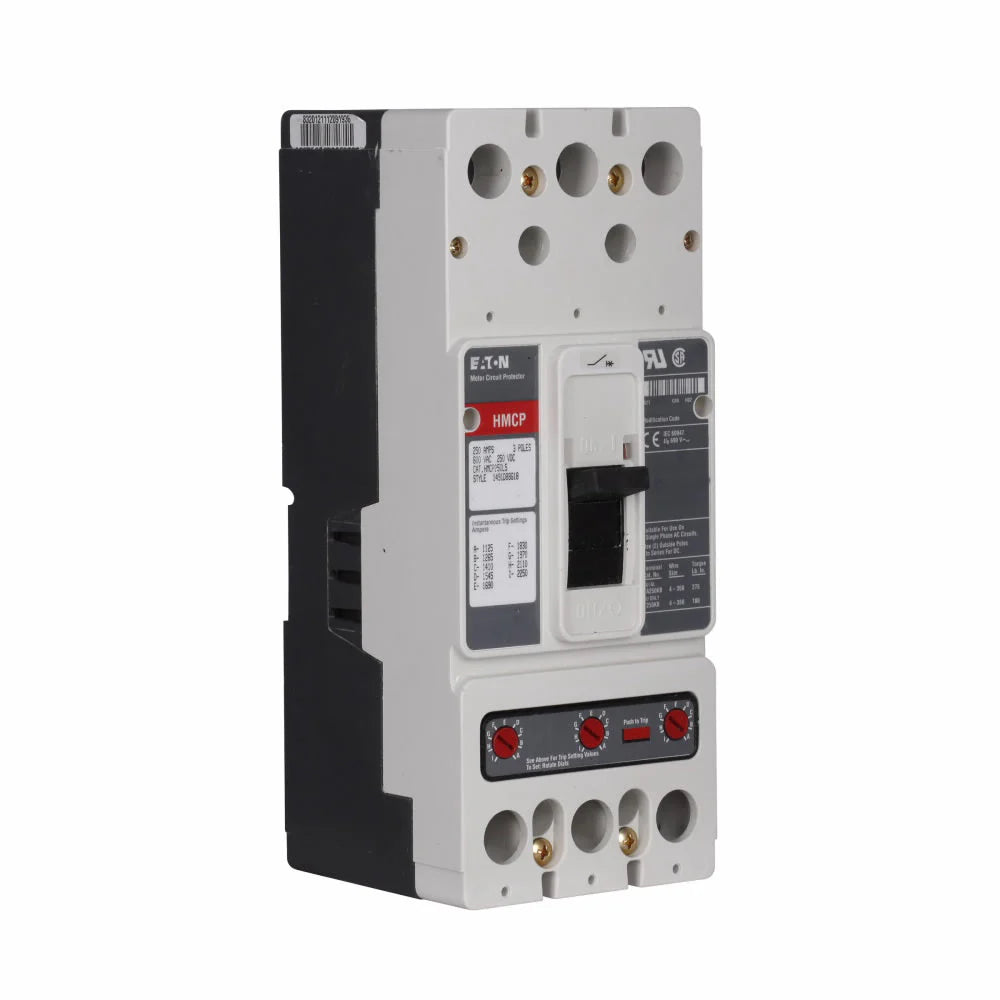

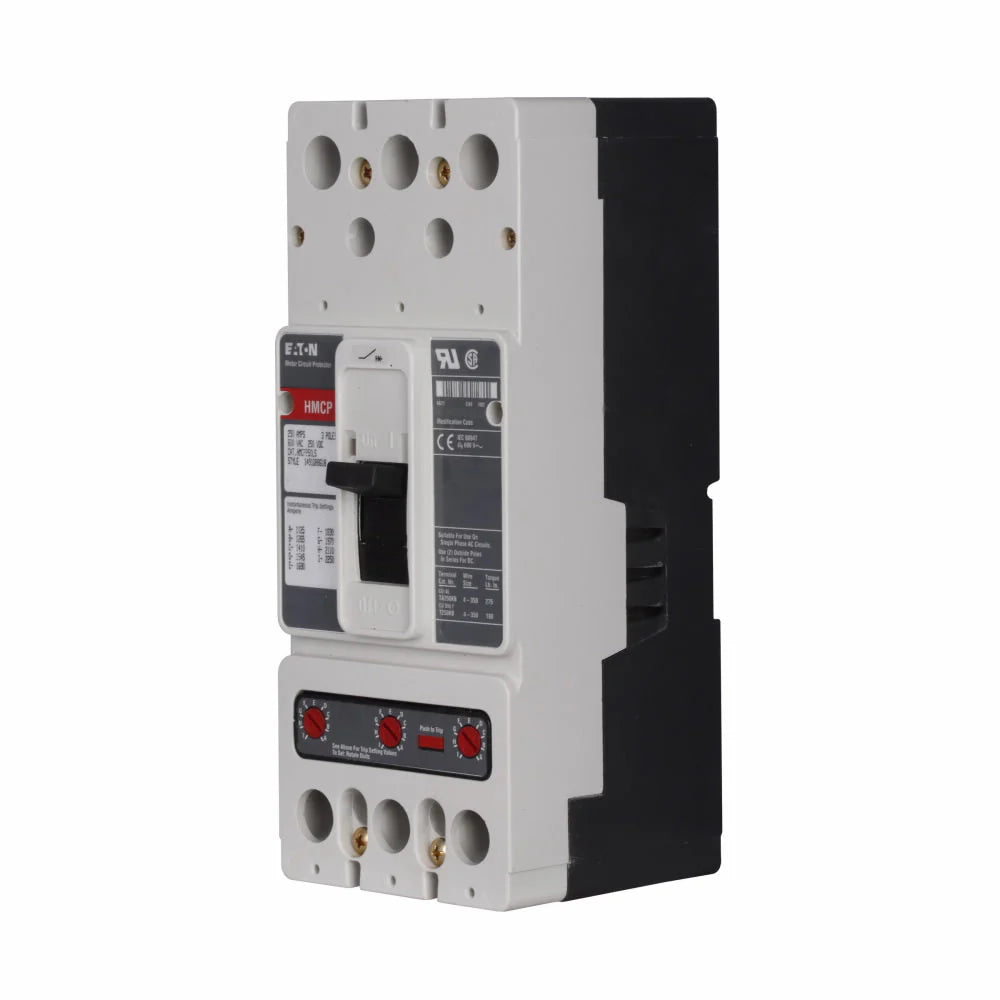

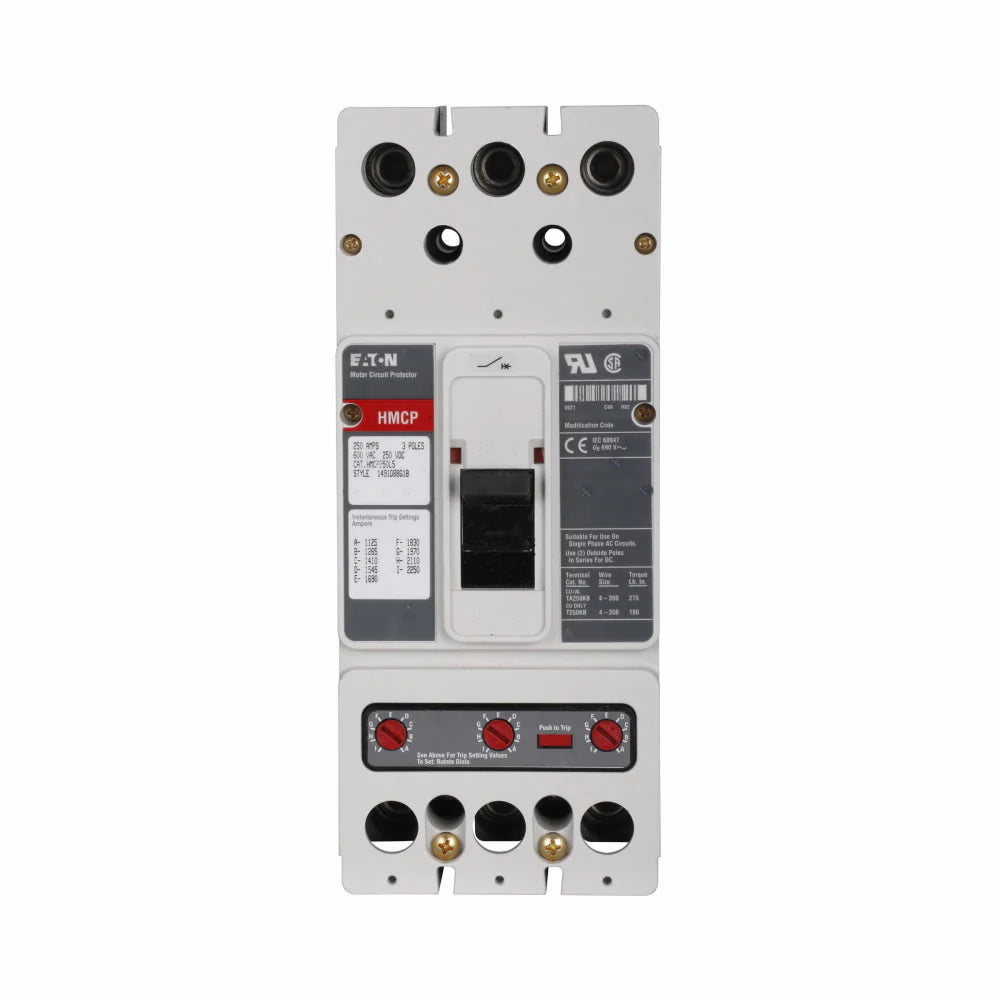

Eaton Cutler-Hammer HMCP250J5X 250 Amp Motor Circuit Protector – 3 Pole – 600V – Series C

The Eaton Cutler-Hammer HMCP250J5X is a Series C Type HMCP, 250A, three-pole motor circuit protector designed for motor circuit applications. It features instantaneous magnetic-only protection with a magnetic trip range of 1125–2250A and a 600V rating. The unit is designed for bolt-on mounting.

Specifications

• Brand: Eaton / Cutler-Hammer
• Series: Series C
• Type: HMCP
• Frame: J-frame
• Amperage Rating: 250A
• Number of Poles: 3
• Phase: 3-Phase
• Voltage Rating: 600V
• Magnetic Trip Range: 1125–2250A
• Trip Mechanism: Magnetic
• Protection Type: Instantaneous only
• Mounting: Bolt-on

Part Numbers & Identification

• MPN: HMCP250J5X
• Manufacturer: Eaton
• Product Type: Motor Circuit Protector
• Frame Type: J-frame
• Series: C
• UPC:786679150443

Compatibility

Suitable for Eaton Series C motor control applications requiring a three-pole, 250A motor circuit protector with instantaneous magnetic protection and a magnetic trip range of 1125–2250A.
