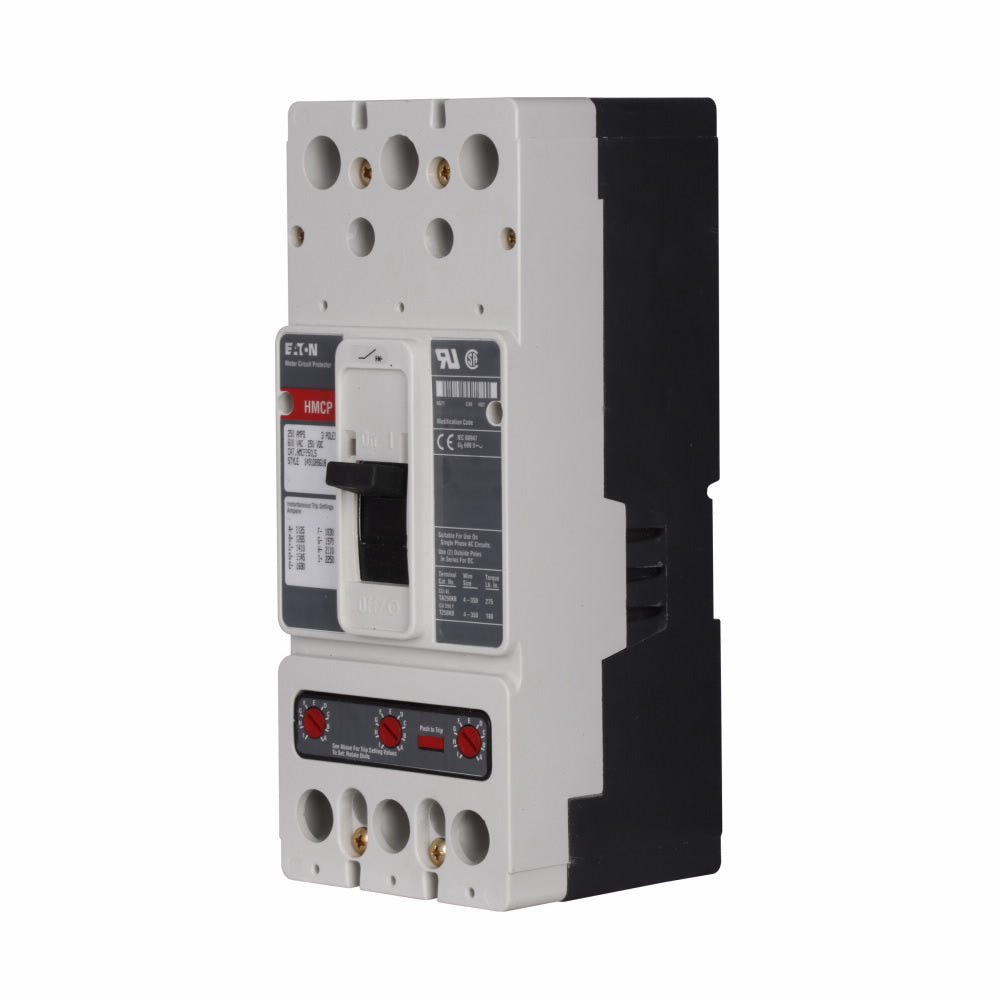

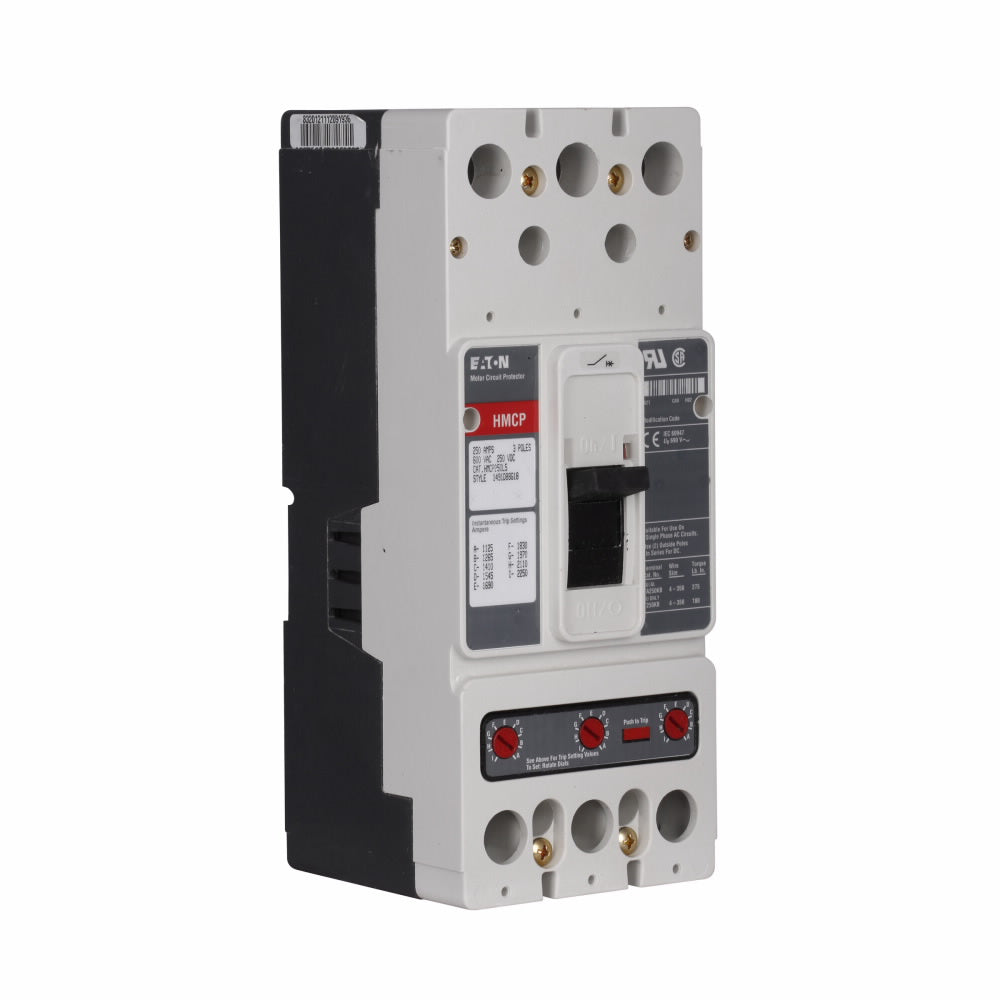

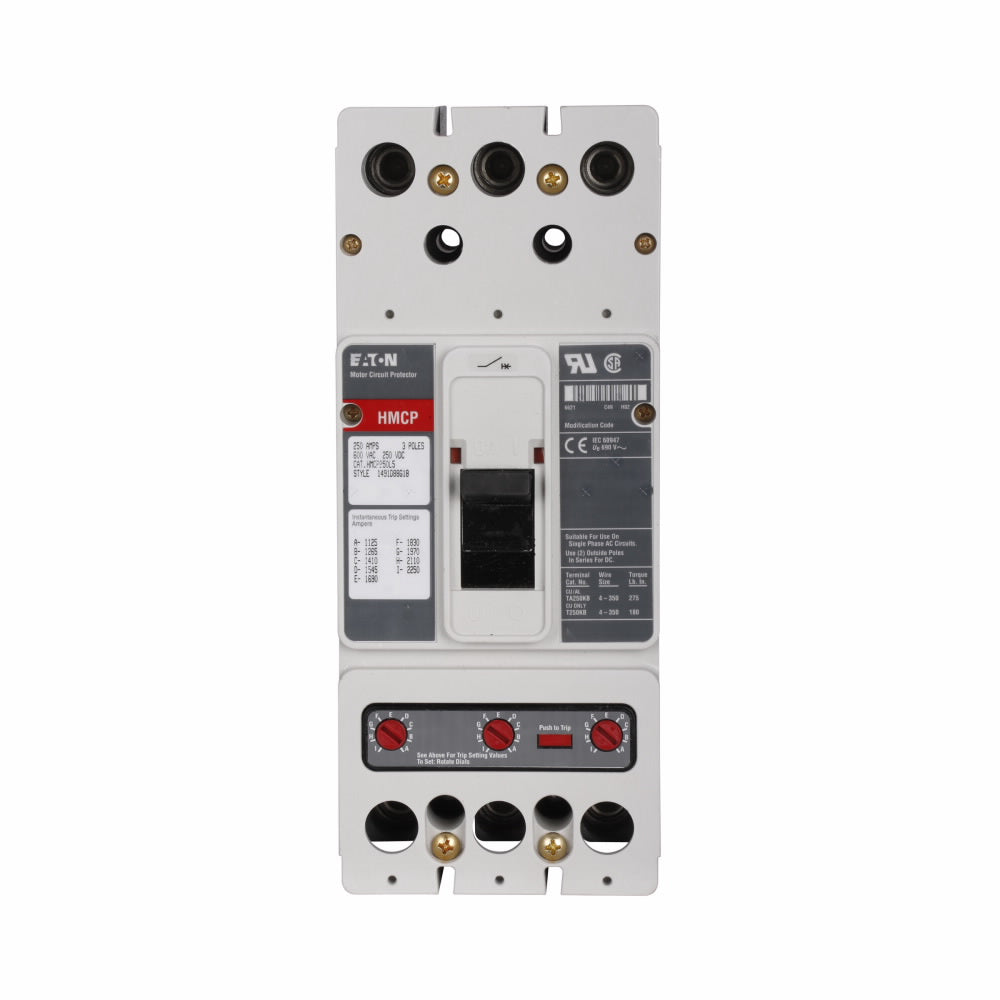

Eaton HMCP250W5 Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – Series C HMCP

The Eaton HMCP250W5 is a 250A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Eaton / Cutler-Hammer / Westinghouse Series C Type HMCP J-Frame. It provides magnetic-only instantaneous protection for compatible motor circuit protection applications.

The HMCP250W5 is rated for 600V and provides a 35kA interrupting rating at 480V. It features a feed-thru configuration, non-aluminum line-side and load-side lug terminals, and an instantaneous-only trip function. The specified magnetic trip range is 1250–2500A.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series C
• Series: Series C
• Type: HMCP
• Frame: J-Frame
• Catalog No.: HMCP250W5
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Only
• Trip Type: Not specified
• Mounting / Configuration: Feed-Thru
• Terminal Type: Non-Aluminum Line-Side and Load-Side Lug Terminals
• Magnetic Range: 1250–2500A
• Application: Motor Circuit Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCP250W5
• Catalog Number: HMCP250W5
• Model: HMCP250W5
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HMCP
• Frame: J-Frame
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 250A
• Protection: Magnetic Only
• Trip Function: Instantaneous Only
• UPC:786679150351

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer / Westinghouse Series C Type HMCP J-Frame electrical distribution and motor circuit protection equipment that accepts this configuration. The HMCP250W5 provides 250A, 3-pole magnetic-only protection for compatible 600V applications.

The breaker features a 1250–2500A magnetic range, feed-thru configuration, and non-aluminum line-side and load-side lug terminals. Always verify the specific motor application, breaker frame, approved MCP type, system voltage, available fault current, pole configuration, magnetic trip requirements, terminal arrangement, and installation requirements before installation.
