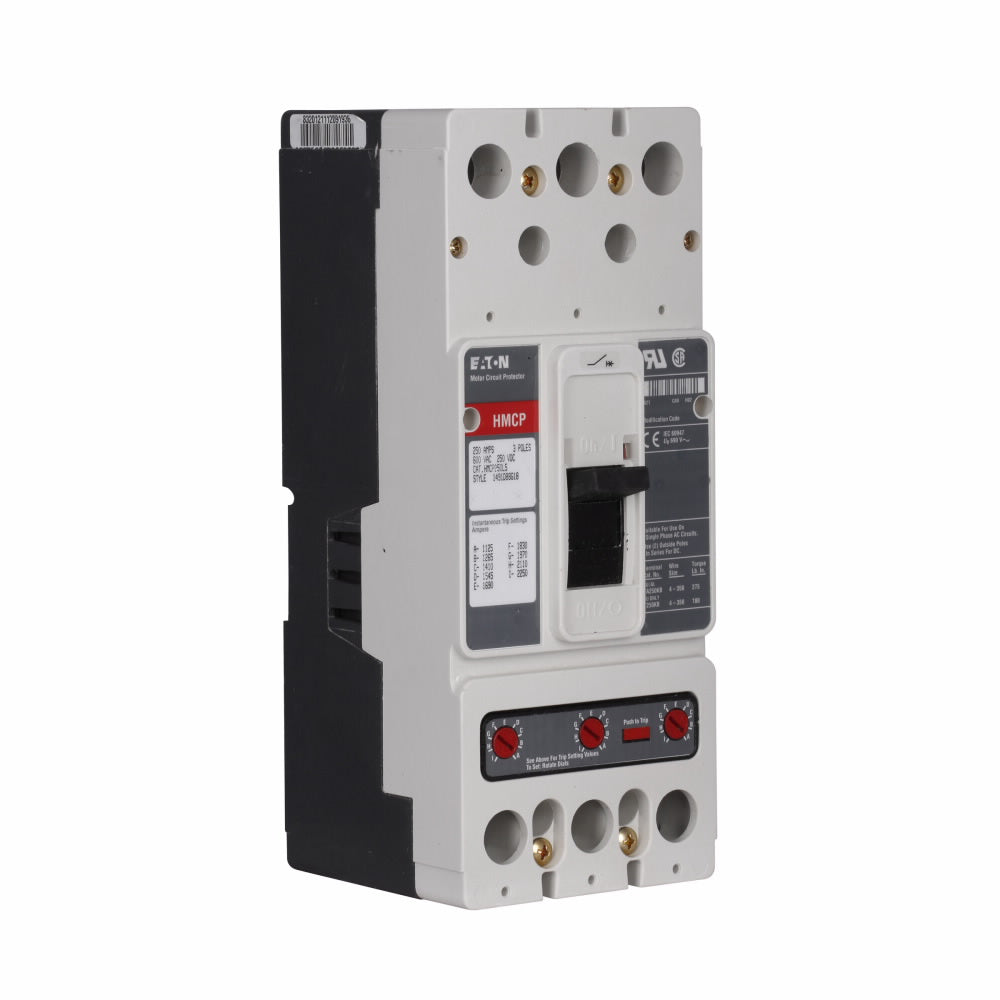

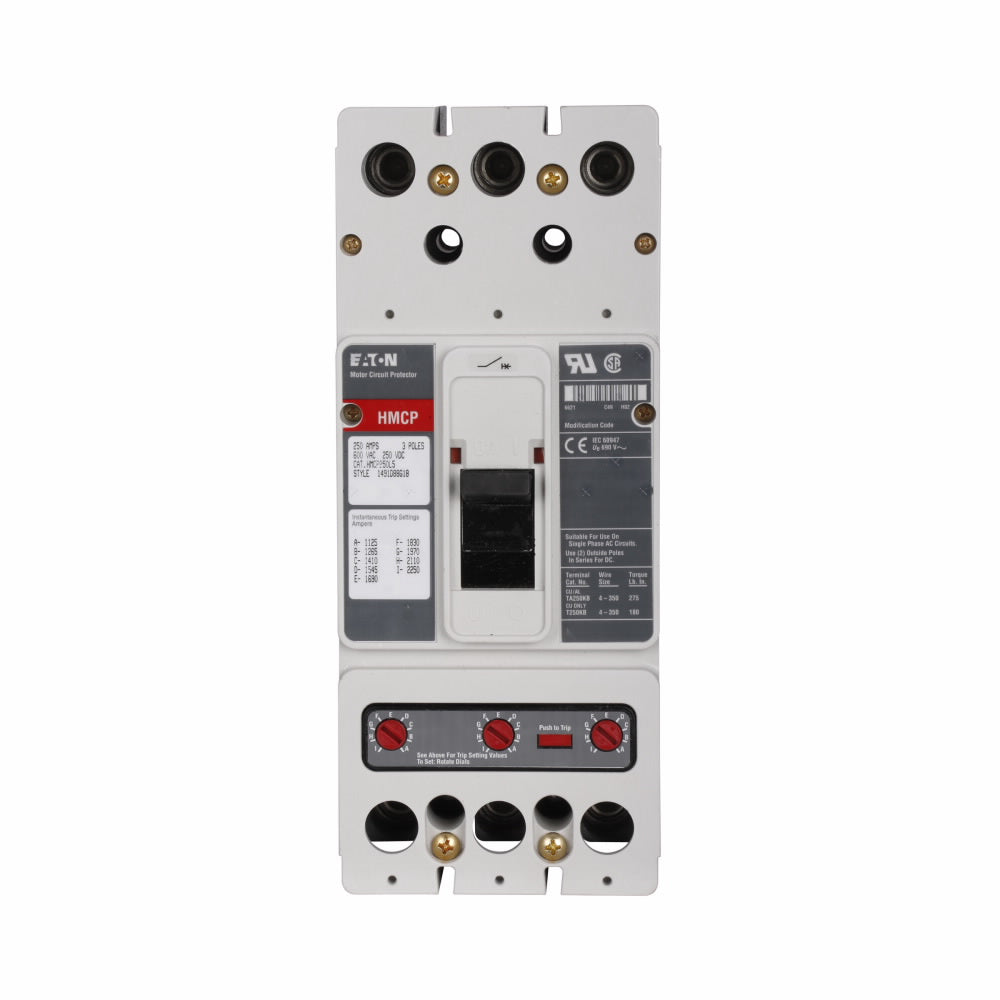

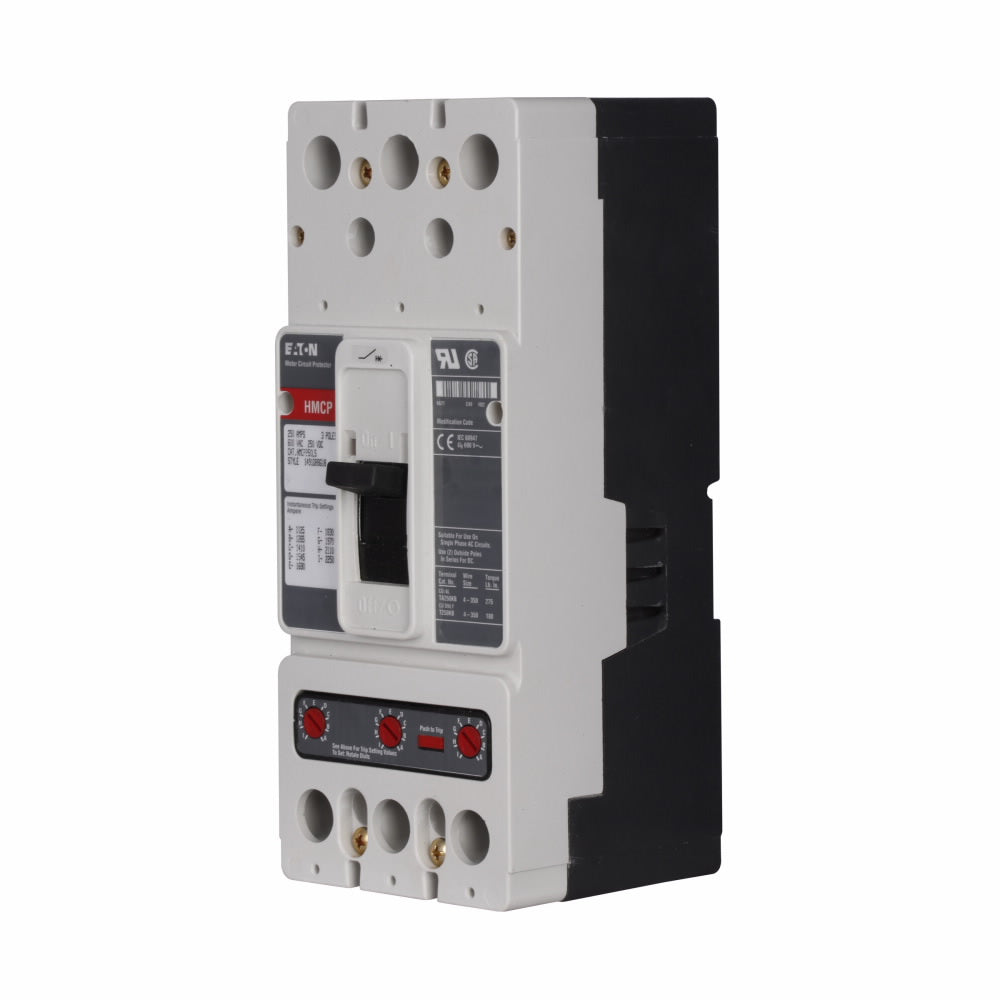

Eaton HMCP250W5C Molded Case Circuit Breaker – 250A – 3-Pole – 600V – 35kA @ 480V – Feed-Thru – Series C HMCP

The Eaton HMCP250W5C is a 250A, 3-pole molded case circuit breaker from the Series C HMCP J-Frame family. It is designed for compatible electrical distribution and motor circuit applications requiring magnetic-only protection.

The breaker is rated for 600V and provides a 35kA interrupting rating at 480V. It features instantaneous protection only, with an adjustable magnetic range of 1250–2500A. The HMCP250W5C uses a feed-thru configuration and includes non-aluminum line- and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Breaker Type: HMCP
• Frame Size: J-Frame
• Catalog No.: HMCP250W5C
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Protection Type: Magnetic Only
• Protection Function: Instantaneous (I) Protection Only
• Magnetic Range: 1250–2500A
• Mounting / Connection: Feed-Thru
• Terminal Configuration: Line-Side and Load-Side Lug Terminals
• Terminal Material: Non-Aluminum
• Application: Magnetic Protection for Compatible Electrical and Motor Circuit Applications

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCP250W5C
• Catalog Number: HMCP250W5C
• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Product Family: Series C
• Series: HMCP
• Breaker Type: HMCP
• Frame: J-Frame
• Product Type: Molded Case Circuit Breaker
• Model: HMCP250W5C
• Configuration: 250A, 3-Pole
• upc:786679150368

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C HMCP J-Frame electrical equipment that accepts the specified 250A, 3-pole magnetic circuit breaker configuration. The HMCP250W5C provides instantaneous protection only and is intended for applications where magnetic-only circuit protection is required.

The breaker includes non-aluminum line- and load-side lug terminals and uses a feed-thru configuration. Always verify the specific equipment model, approved breaker type, system voltage, pole configuration, interrupting rating, magnetic trip range, terminal requirements, and application before installation.

Certifications:

• Series C HMCP
• J-Frame
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V
• Magnetic-Only Protection
• Instantaneous Protection Only
• 1250–2500A Magnetic Range
• Feed-Thru Configuration
• Non-Aluminum Line and Load Lugs
