Eaton HMCP250W5W – 250A 600V 3-Pole Molded Case Circuit Breaker, Thermal Magnetic, 35 kAIC @ 480V

Description

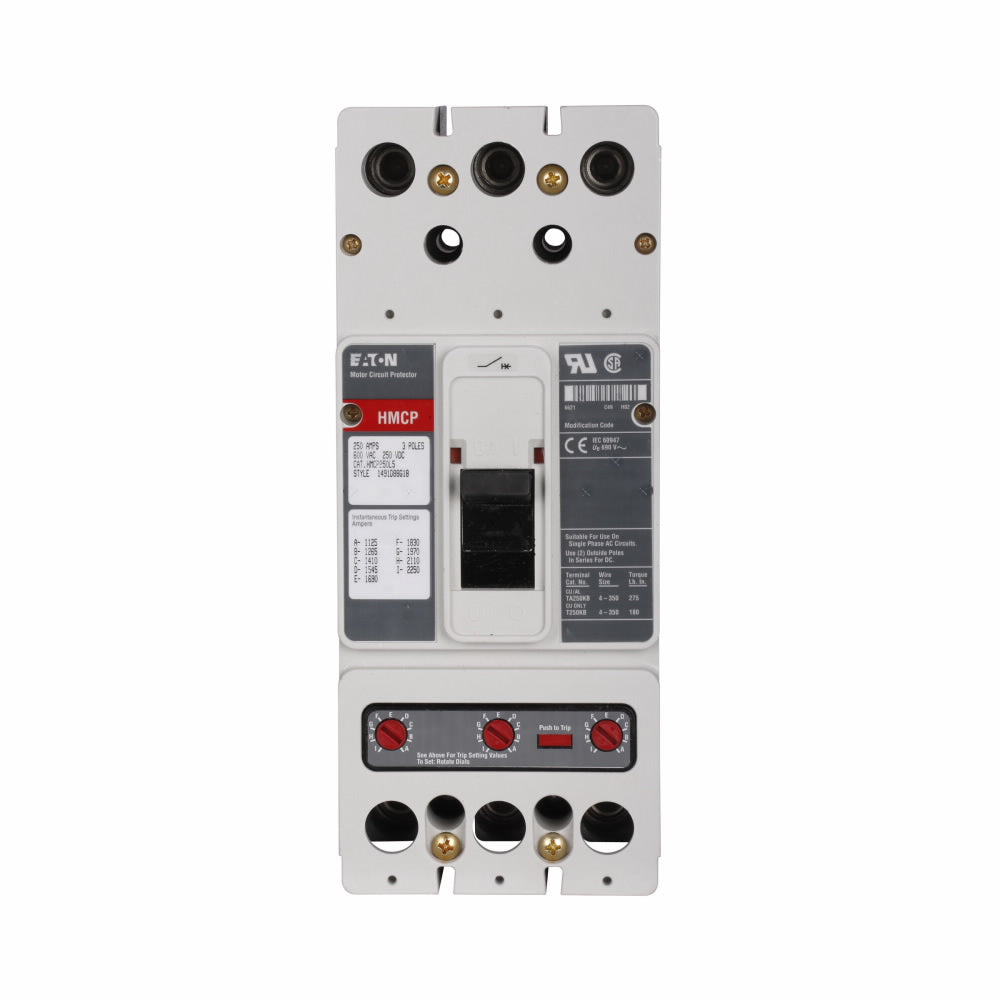

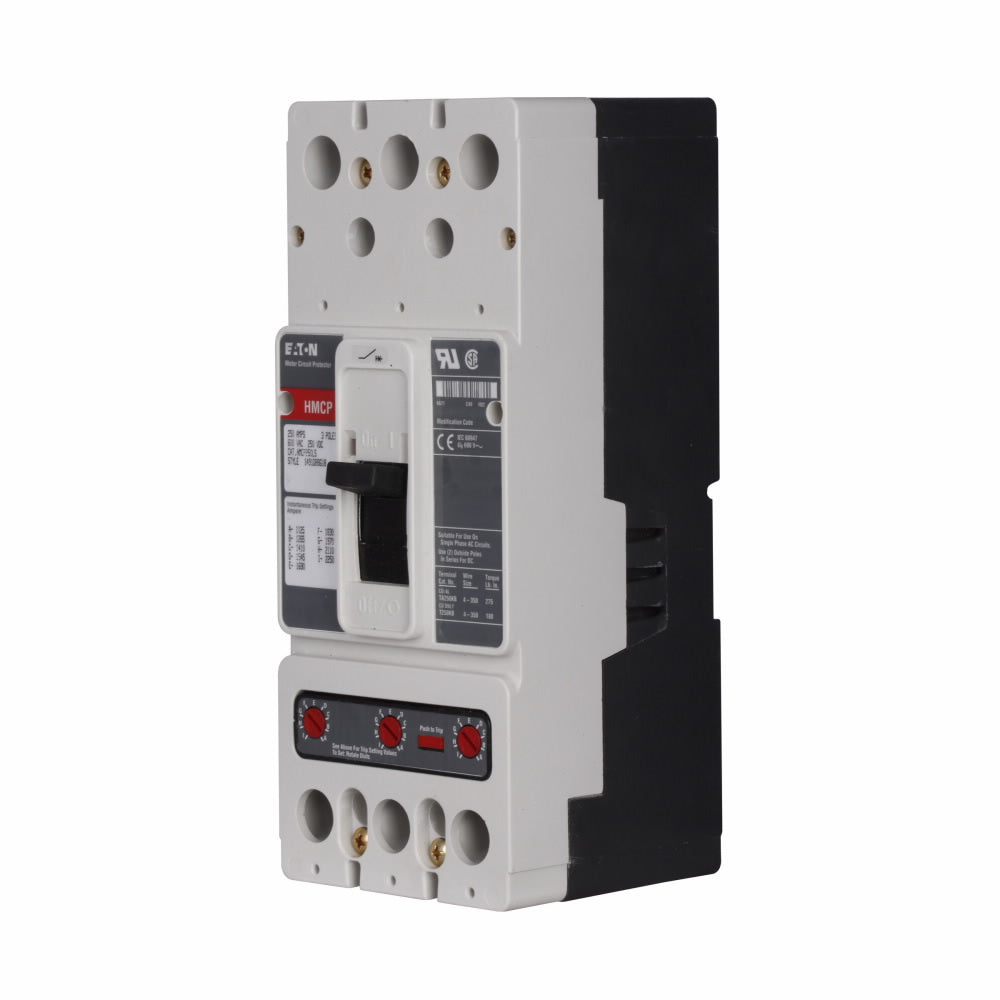

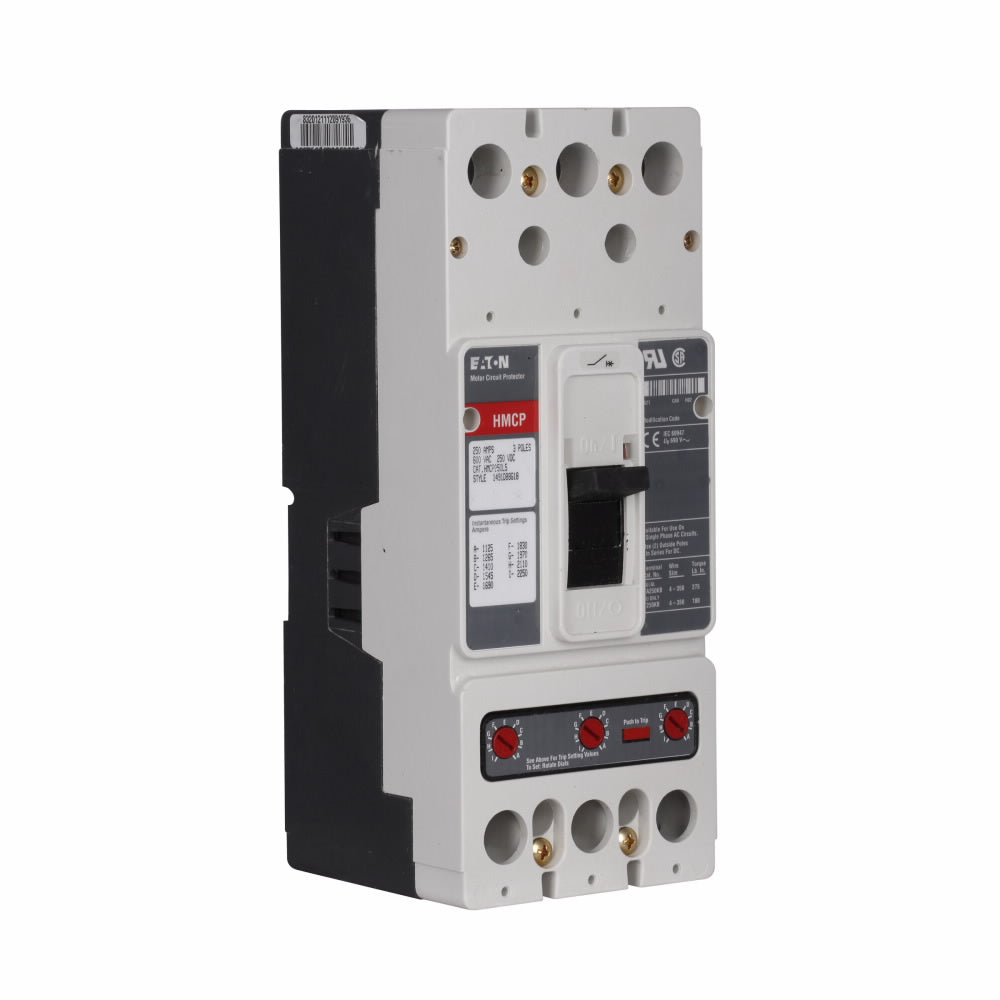

Eaton HMCP250W5W

The Eaton HMCP250W5W is a 3‑pole, 250 A molded case circuit breaker engineered for robust motor and power circuit protection in commercial and industrial applications. This Series C, J‑frame breaker features magnetic‑only trip protection, offering dependable instantaneous response in high fault current conditions. Rated for 600 VAC (and 250 VDC) with a 35 kAIC interrupting capacity at 480 VAC, it delivers reliable performance where motor protection and rapid fault interruption are required. Designed with a bolt‑on/panel mount configuration, the HMCP250W5W is UL listed and CSA certified for safety and compliance.

Key Specifications

• Manufacturer: Eaton

• Part Number: HMCP250W5W

• Amperage: 250 A

• Voltage: 600 VAC / 250 VDC

• Poles: 3

• Series / Frame: Series C, J‑Frame

• Interrupt Rating: 35 kAIC @ 480 VAC

• Trip Unit: Magnetic Only (Instantaneous)

• Mounting Type: Bolt‑On / Panel Mount

• Functions: Instantaneous (Magnetic)

• Protection: Magnetic Only

• Connection: Without Terminals (breaker only design)

• Certifications: UL Listed, CSA Certified

• Application: Motor Circuit Protection and General Electrical Protection

Specifications

• Part Number: HMCP250W5W

• Manufacturer: Eaton

• Category: Circuit Breaker

• Item Subcategory: Molded Case

• Family / Series: Series C

• Type: HMCP (Motor Circuit Protector)

• Voltage: 600 VAC / 250 VDC

• Amperage: 250 A

• Phase: 3

• Poles: 3

• AIC Rating: 35 kA @ 480 VAC

• Functions: I – Instantaneous (Magnetic Only Protection)

• Frame: J‑Frame (Series C)

• Mounting Type: Bolt‑On / Panel Mount

• Protection: Magnetic Only

Product Data

• UPC: 786679072929

• GTIN: 00786679072929

• Country of Origin: Dominican Republic

• Dimensions: ~10" H × 4.13" W × 4.06" D

• Weight: ~12.5 lb

• Standards / Certifications: UL Listed, CSA Certified
