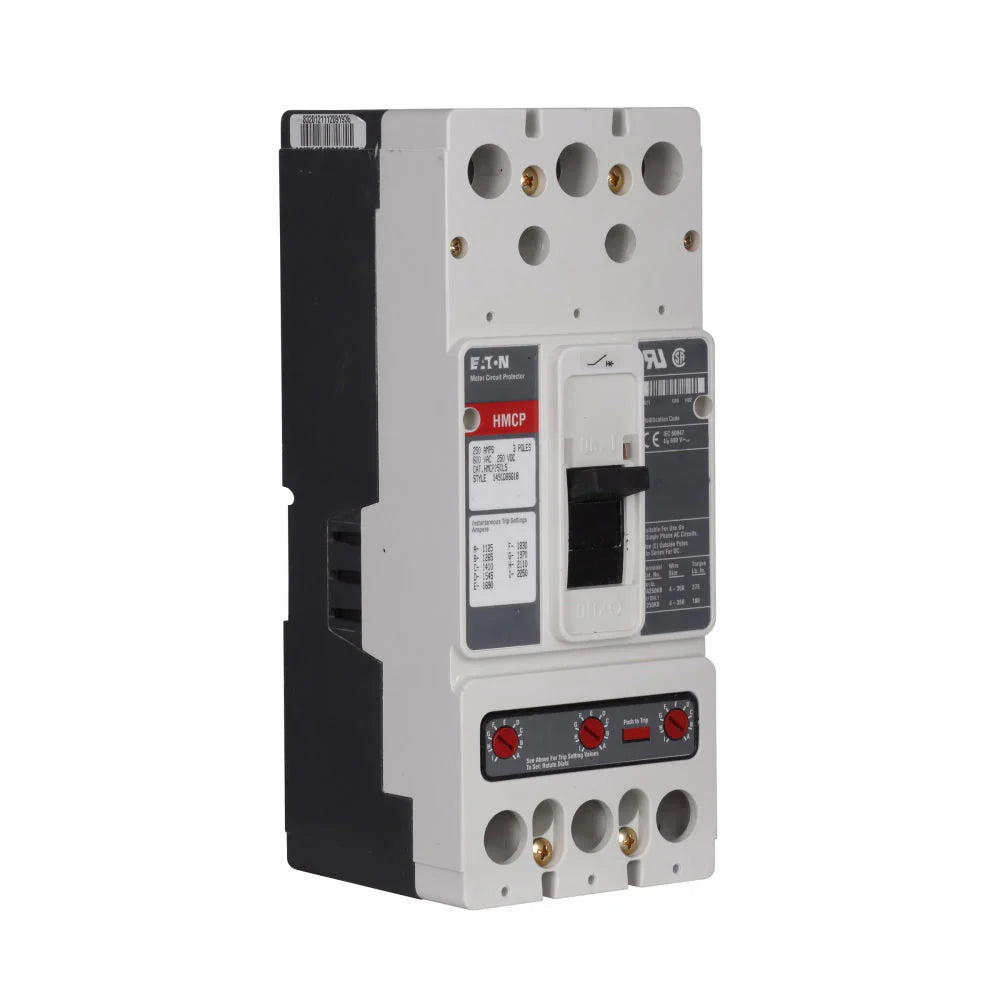

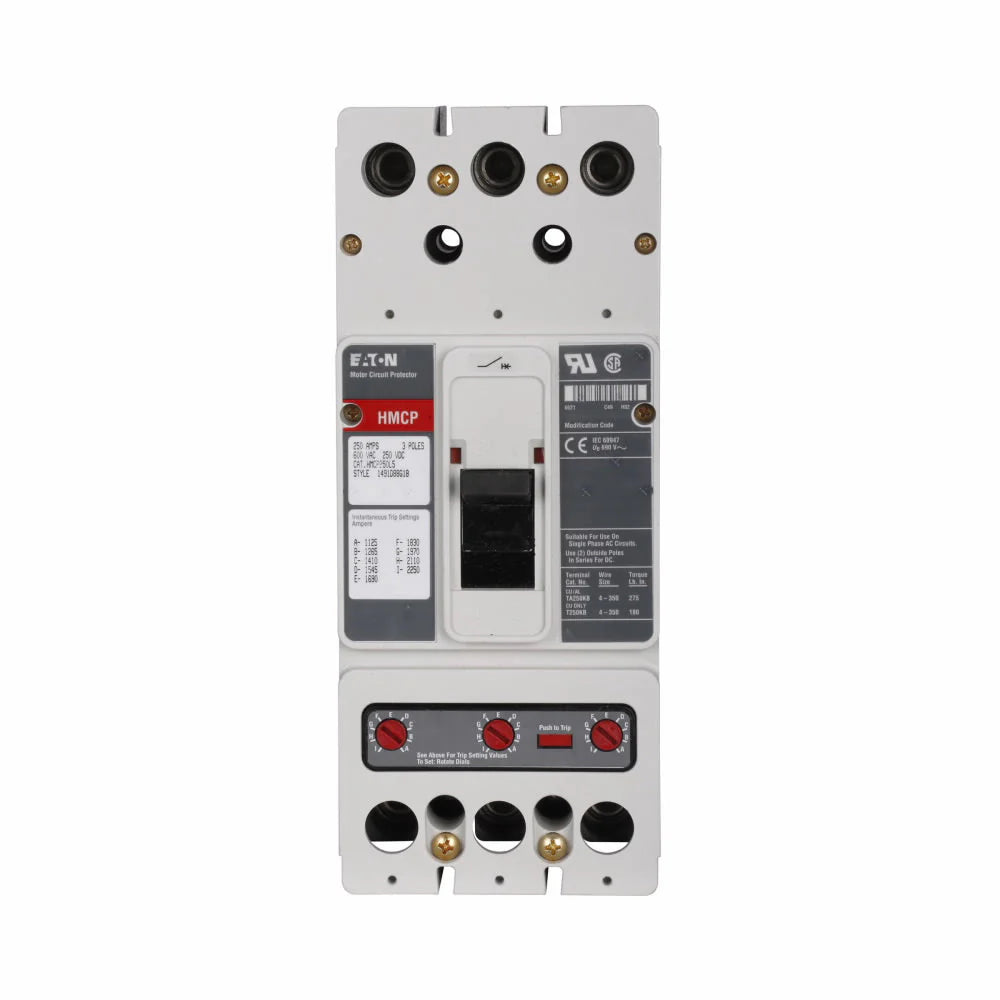

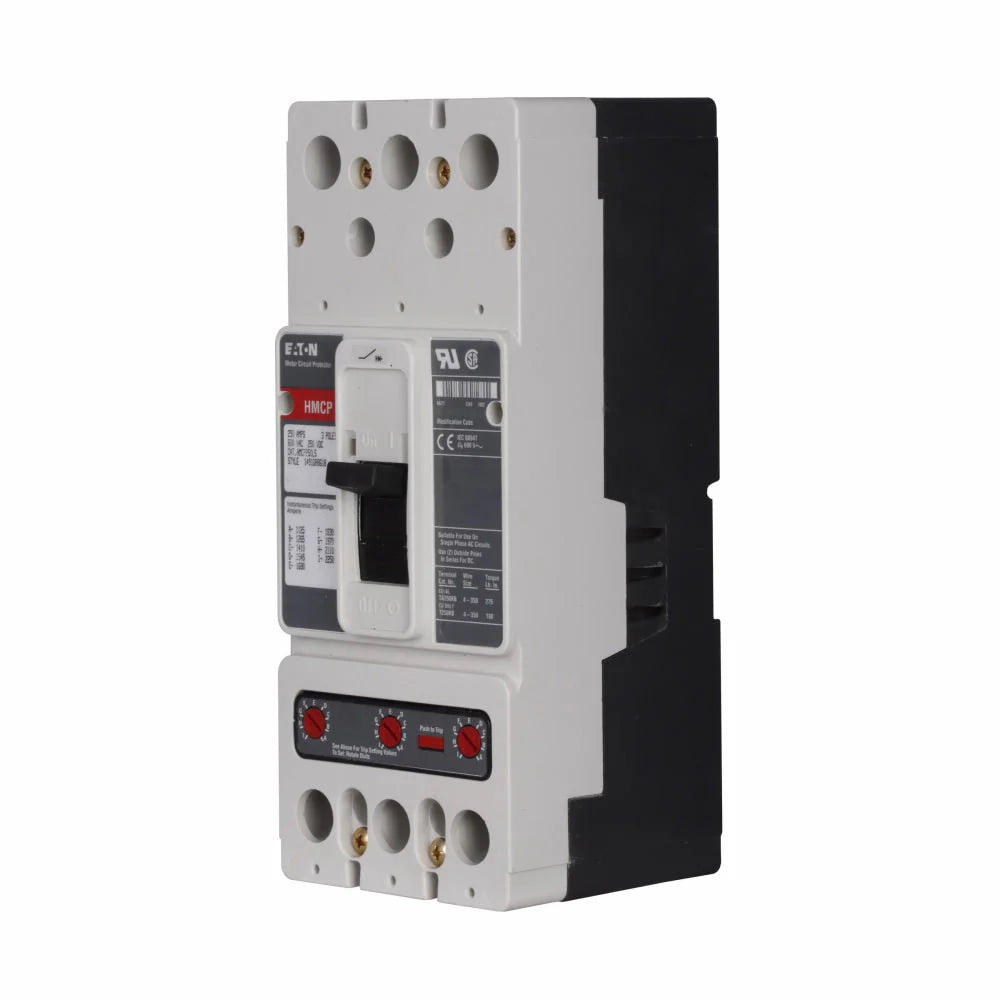

Eaton Cutler-Hammer HMCP250W5X 250 Amp Motor Circuit Protector – 3 Pole – 600V – 35 kA @ 480V – Series C

The Eaton HMCP250W5X is a Series C Type HMCP motor circuit protector featuring a J-frame design and a 250 A, three-pole configuration. It provides instantaneous magnetic protection only, with a magnetic trip range of 1,250–2,500 A. The unit has a 600 V rating, 35 kA interrupting capacity at 480 V, feed-through configuration, and non-aluminum line- and load-side lug terminals.

Specifications

• Brand: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Motor Circuit Protector (MCP)
• Series: Series C
• Type: HMCP
• Frame: J Frame
• Ampere Rating: 250 A
• Poles: 3
• Phase: 3 Phase
• Voltage Rating: 600 V
• Interrupting Capacity: 35 kA at 480 V
• Configuration: Feed-through
• Trip Function: Instantaneous magnetic protection only
• Magnetic Trip Range: 1,250–2,500 A
• Terminal Type: Line- and load-side lug terminals
• Terminal Material: Non-aluminum

Part Numbers & Identification

• Catalog Number: HMCP250W5X
• Manufacturer: Eaton
• Product Family: Series C Motor Circuit Protectors
• Type Designation: HMCP
• Frame Designation: J Frame
• UPC:786679150351

Compatibility

Suitable for Eaton Series C motor control applications requiring a three-pole, 250 A motor circuit protector with instantaneous magnetic protection and a magnetic trip range of 1,250–2,500 A.
