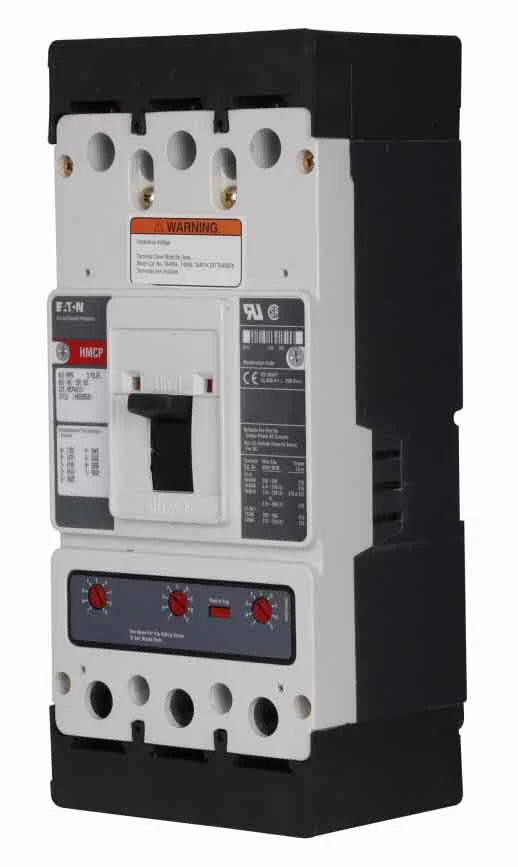

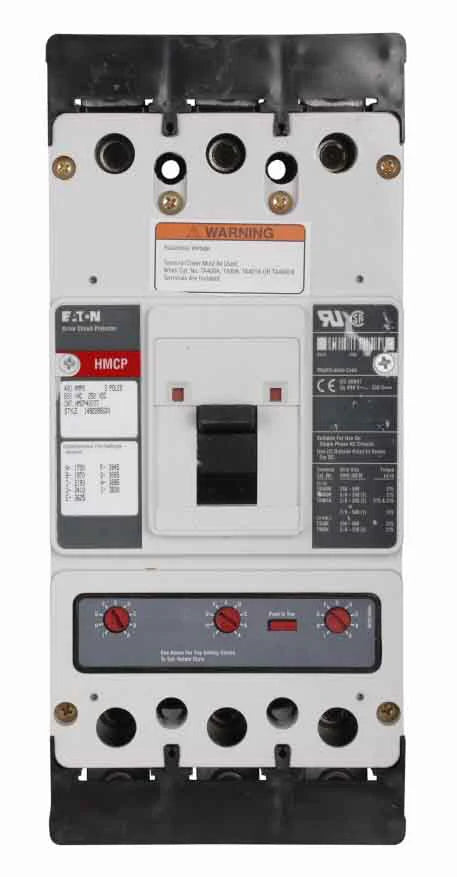

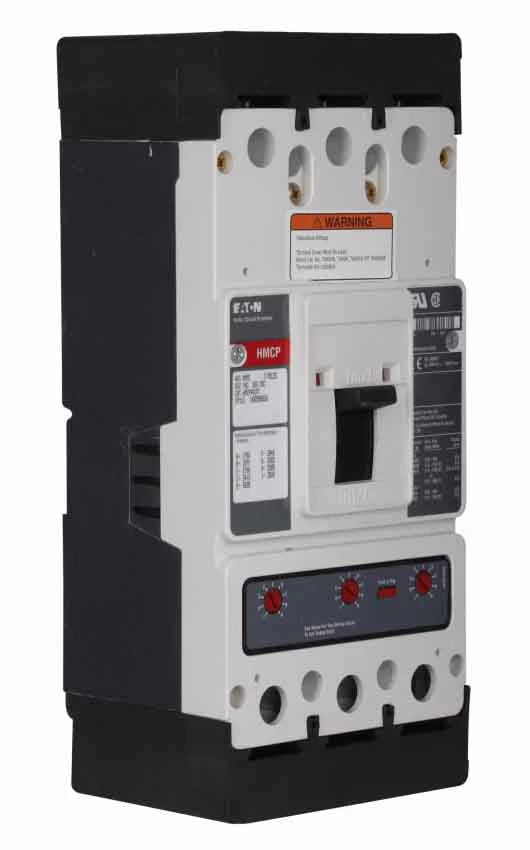

Eaton Cutler-Hammer HMCP400A5 400 Amp Motor Circuit Protector – 3 Pole – 600V AC / 250V DC – Series C

The Eaton HMCP400A5 is a Series C, J-K frame motor circuit protector rated at 400 A. It features a three-pole configuration, a magnetic trip range of 350–700 A, and line- and load-side connections. It is designed for motor protection applications requiring a 600 V AC and 250 V DC rated device.

Specifications

• Brand: Eaton
• Product Type: Motor Circuit Protector (MCP)
• Series: Series C
• Frame: J-K Frame
• Ampere Rating: 400 A
• Poles: 3
• Magnetic Trip Range: 350–700 A
• Voltage Rating: 600 V AC
• DC Voltage Rating: 250 V DC
• Connections: Line and load
• Terminal Material: Non-aluminum
• Trip Function: Magnetic trip

Part Numbers & Identification

• Catalog Number: HMCP400A5
• Manufacturer: Eaton
• Product Family: Series C Motor Circuit Protectors
• Frame Designation: J-K Frame
• UPC:786679342626

Compatibility

Suitable for Eaton Series C motor control applications requiring a three-pole, 400 A motor circuit protector with a magnetic trip range of 350–700 A and line- and load-side connections.
