Eaton HMCP400D5WD09 Motor Circuit Protector – 400A – 3-Pole – 600V AC / 250V DC – 500–1000A –Series C HMCP

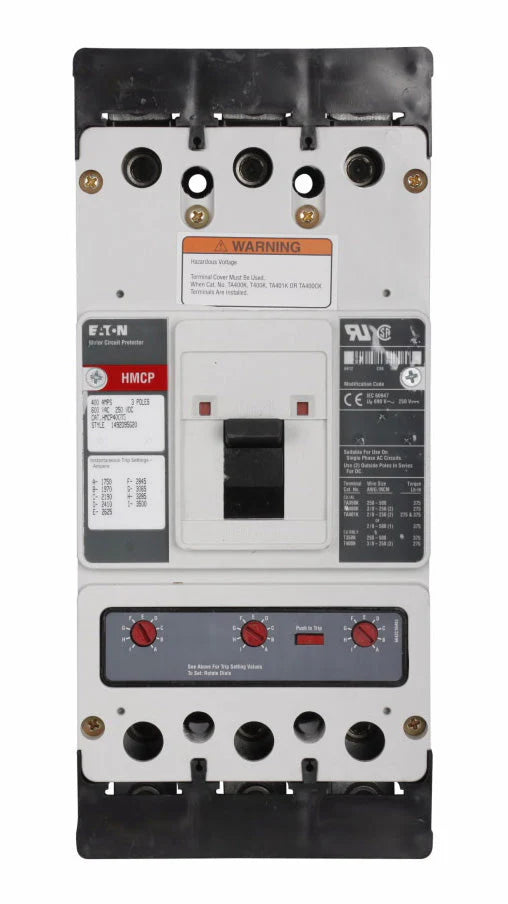

The Eaton HMCP400D5WD09 is a 400A, 3-pole Motor Circuit Protector (MCP) from the Eaton Cutler-Hammer Series C HMCP family. It is designed for compatible motor protection applications and is identified as a molded case circuit breaker accessory for motor protection.

The HMCP400D5WD09 is rated for 600V AC and 250V DC and is associated with J-K frame applications. The specified magnetic range is 500–1000A. The available product information does not specify the exact mounting configuration, interrupting rating, or detailed trip functions.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Motor Circuit Protector
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series C
• Series: Series C
• Type: HMCP
• Catalog No.: HMCP400D5WD09
• Current Rating: 400A
• Number of Poles: 3-Pole
• Frame: J-K
• Voltage Rating: 600V AC / 250V DC
• Magnetic Range: 500–1000A
• Protection Type: Motor Circuit Protection
• Mounting Type: Not specified
• Interrupting Rating: Not specified
• Trip Functions: Not specified
• Lugs / Terminals: Not specified
• Application: Motor Circuit Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCP400D5WD09
• Catalog Number: HMCP400D5WD09
• Model: HMCP400D5WD09
• Product Family: Eaton Cutler-Hammer Series C Circuit Protectors
• Series: Series C
• Type: HMCP
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Motor Circuit Protector
• Breaker Configuration: 3-Pole, 400A
• Frame: J-K
• Magnetic Range: 500–1000A
• UPC:786679319802

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C HMCP motor circuit protection applications utilizing J-K frame equipment. The HMCP400D5WD09 provides 400A motor circuit protection and has a specified 500–1000A magnetic range.

The available information does not specify the exact mounting arrangement, interrupting rating, terminal configuration, or detailed trip functions. Always verify the specific motor starter or electrical equipment model, approved MCP type, system voltage, available fault current, magnetic trip requirements, frame compatibility, terminals, and installation requirements before installation.

Certifications:

• UL Listed
• CSA Certified
• Series C HMCP
• 400A Rated
• 3-Pole
• 600V AC / 250V DC Rated
• J-K Frame
• 500–1000A Magnetic Range
• Motor Circuit Protector (MCP)
