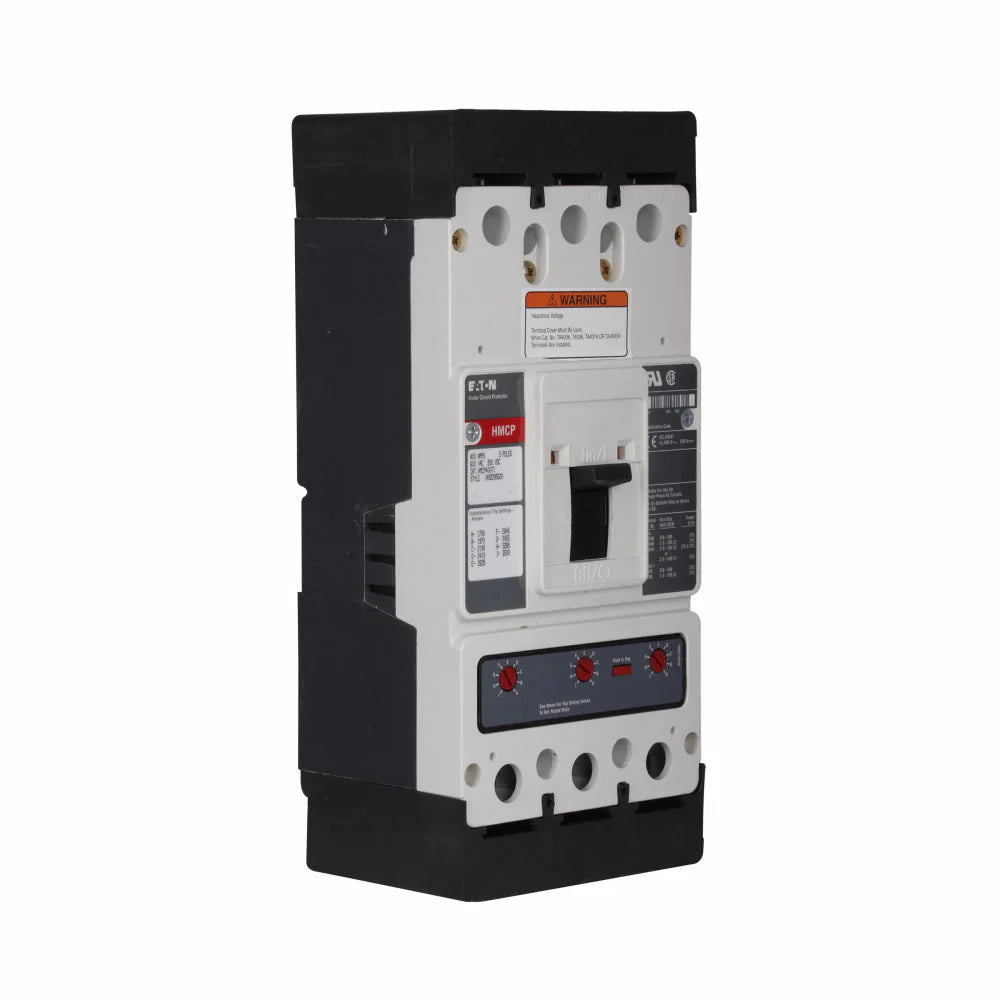

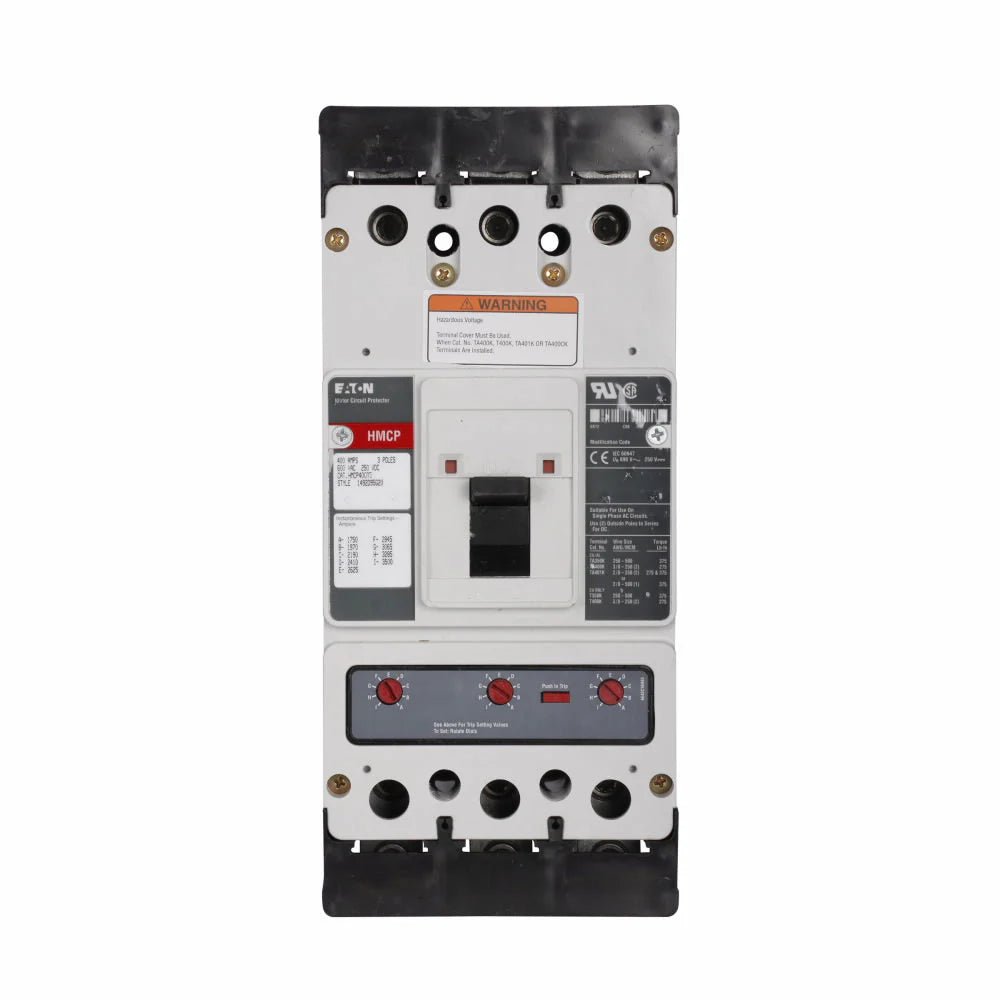

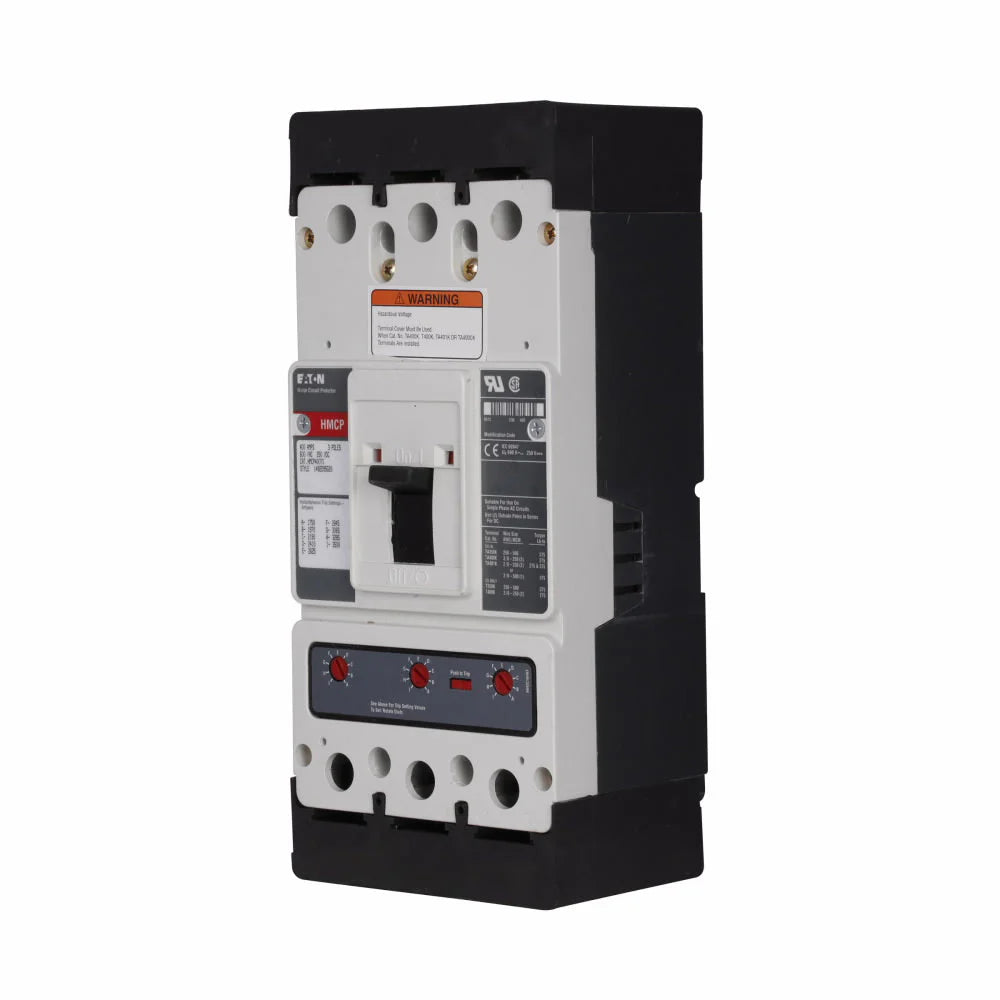

Eaton HMCP400F5X 400 Amp Motor Circuit Protector – 3 Pole – 600 V – 35 kA@480 V – Feed-Thru – K Frame – Series C

The Eaton HMCP400F5X is a 400 Amp, 3-pole, 3-phase motor circuit protector from the Eaton / Cutler-Hammer / Westinghouse Series C, Type HMCP. It features a K-frame configuration and is rated for 600 V with a 35 kA interrupting rating at 480 V. The protector uses magnetic-only protection with instantaneous trip functionality and a magnetic adjustment range of 625–1250 A. It is designed for feed-thru mounting and includes non-aluminum line- and load-side lug terminals.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Motor Circuit Protector (MCP)
• Series: Series C
• Type: HMCP
• Frame: K Frame
• Catalog Number / MPN: HMCP400F5X
• Primary Rating: 400 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 35 kA @ 480 V
• Trip Type: Magnetic Only
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 625–1250 A
• Connection / Mounting: Feed-Thru
• Terminals: Non-Aluminum Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: HMCP400F5X
• Series: Series C
• Type: HMCP
• Frame: K Frame
• Current Rating: 400 A
• Pole Count: 3 Pole
• Product Type: Magnetic-Only Motor Circuit Protector
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 625–1250 A
• Connection: Feed-Thru
• Terminals: Non-Aluminum Line & Load-Side Lug Terminals
• UPC:786679342329

Compatibility

The Eaton HMCP400F5X is intended for compatible Eaton / Cutler-Hammer Series C Type HMCP motor control and motor protection applications.
