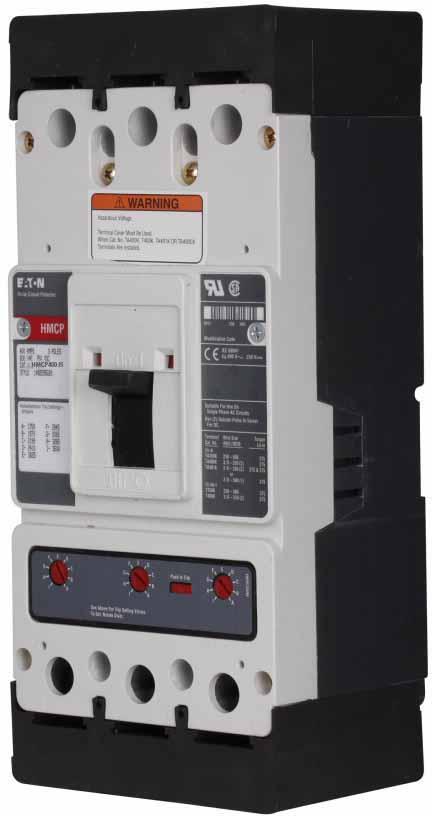

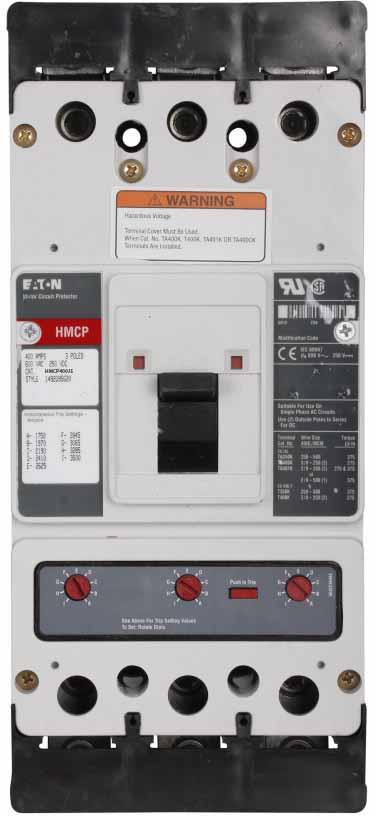

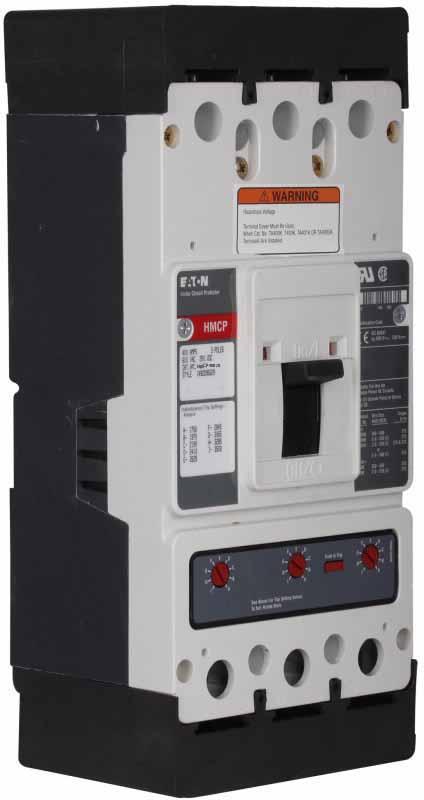

Eaton HMCP400J5 400 Amp Motor Circuit Protector – 3 Pole – 600V AC – J-K Frame – Series C

The Eaton HMCP400J5 is a Series C motor circuit protector designed to provide magnetic short-circuit protection for motor circuits. It features an adjustable instantaneous trip range for motor protection applications.

Specifications

• Brand: Eaton
• Series: Series C
• MPN: HMCP400J5
• Product Type: Motor Circuit Protector
• Amperage Rating: 400A
• Poles: 3
• Frame Compatibility: J and K
• Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Instantaneous Trip Range: 875–1,750A
• Protection Type: Magnetic
• Terminals: Line-side and load-side

Part Numbers & Identification

• Manufacturer Part Number: HMCP400J5
• UPC:786679342367

Compatibility

Designed for compatible Eaton Series C J- and K-frame motor circuit breaker installations requiring a 400A motor circuit protector with an 875–1,750A instantaneous trip range.
