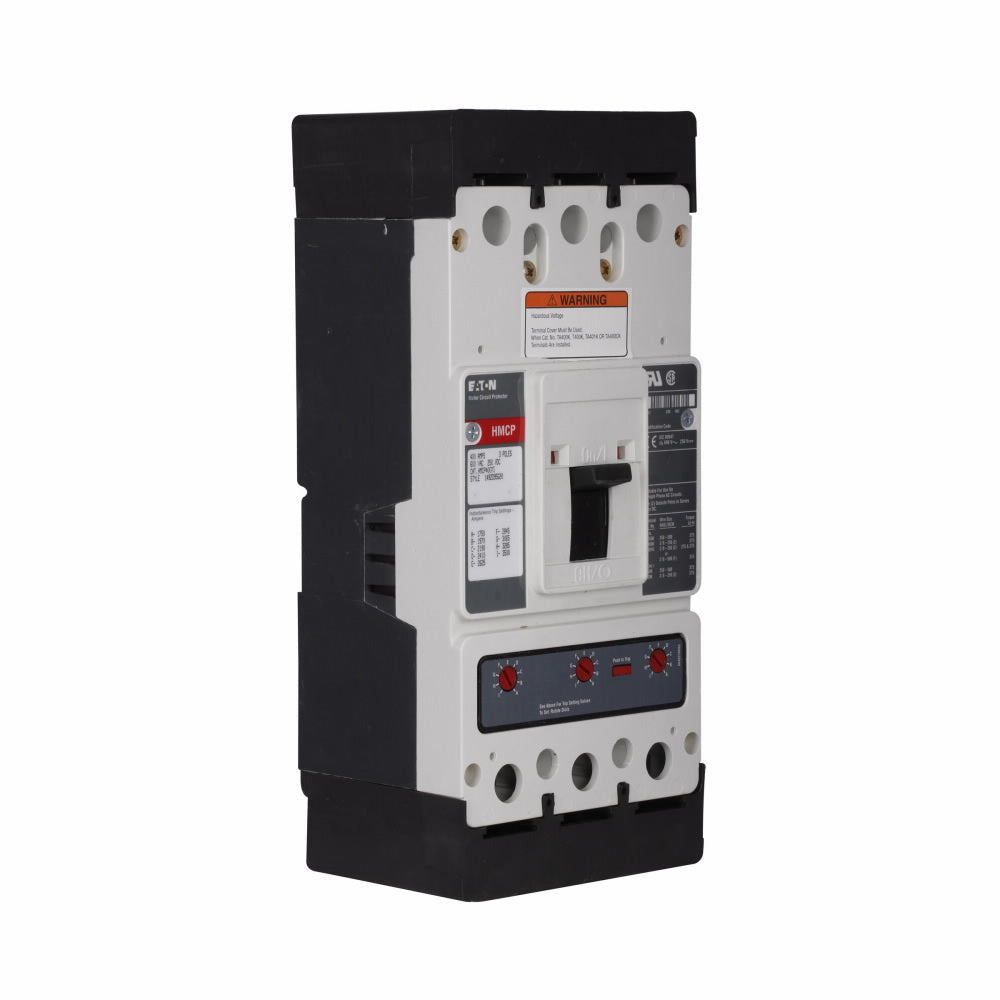

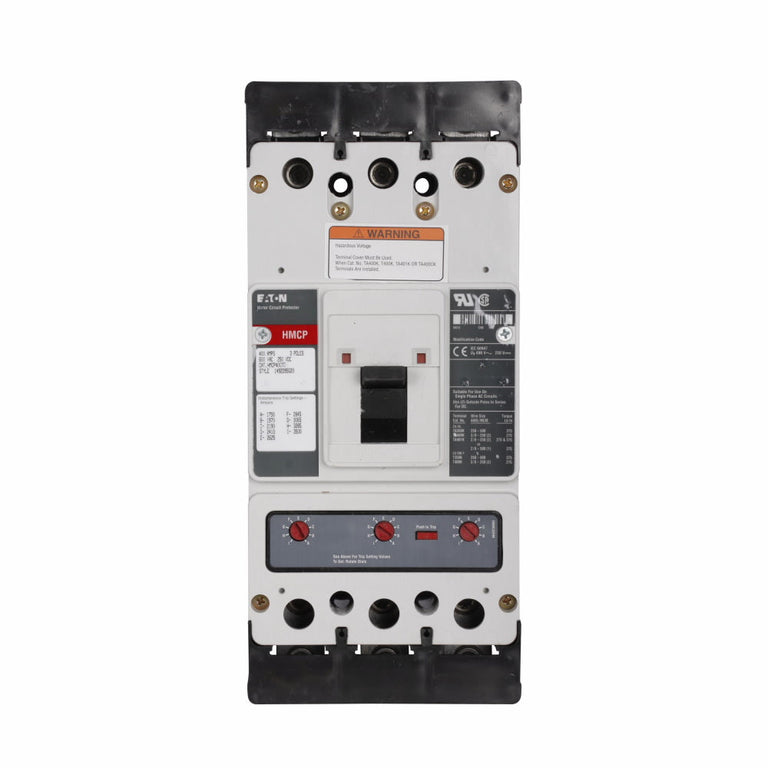

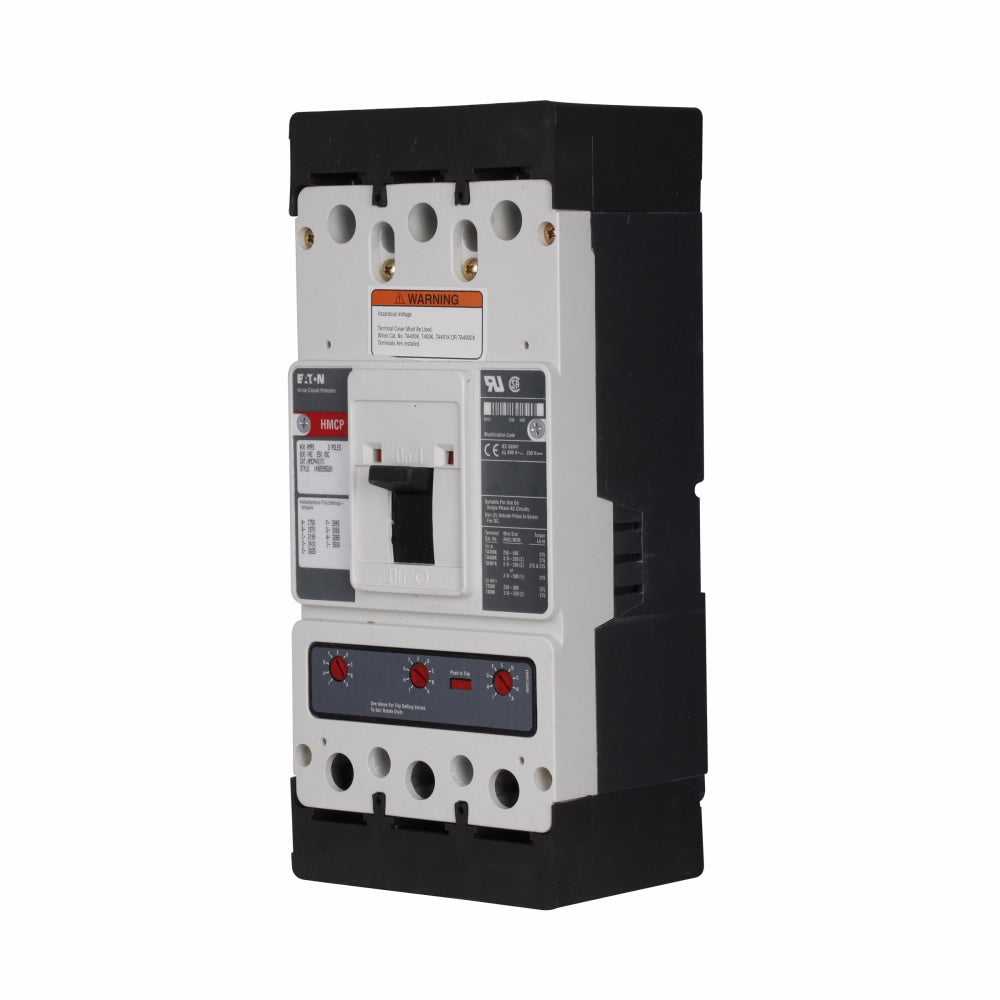

Eaton HMCP400K5 400 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 35 kA@480 V – Feed-Thru – Series C

The Eaton Cutler-Hammer / Eaton / Westinghouse HMCP400K5 is a 400 Amp, 3-pole, 3-phase molded case circuit breaker from the Series C Type HMCP family. It is rated for 600 V with a 35 kA interrupting capacity at 480 V. The breaker provides instantaneous protection only, with a magnetic operating range of 1000–2000 A. It features magnetic-only protection, feed-thru mounting, and standard line and load-side lug terminals.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer / Eaton / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: HMCP
• Frame: K-Frame
• Catalog Number / MPN: HMCP400K5
• Primary Rating: 400 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 35 kA @ 480 V
• Trip Type: Magnetic-Only
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 1000–2000 A
• Connection / Mounting: Feed-Thru
• Terminals: Standard Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer / Eaton / Westinghouse
• Catalog Number: HMCP400K5
• Series: Series C
• Type: HMCP
• Frame: K-Frame
• Current Rating: 400 A
• Pole Count: 3 Pole
• Product Type: Magnetic-Only Molded Case Circuit Breaker
• Trip Function: I – Instantaneous Protection Only
• Magnetic Range: 1000–2000 A
• Terminals: Standard Line & Load-Side Lug Terminals
• UPC: 786679342381

Compatibility

The Eaton HMCP400K5 is designed for compatible Eaton / Cutler-Hammer / Westinghouse Series C Type HMCP K-Frame applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
