Eaton HMCP400L5C Molded Case Circuit Breaker – 400A – 3-Pole / 3-Phase – 600V AC – 1125–2250A Magnetic Range – Line & Load – Series C HMCP

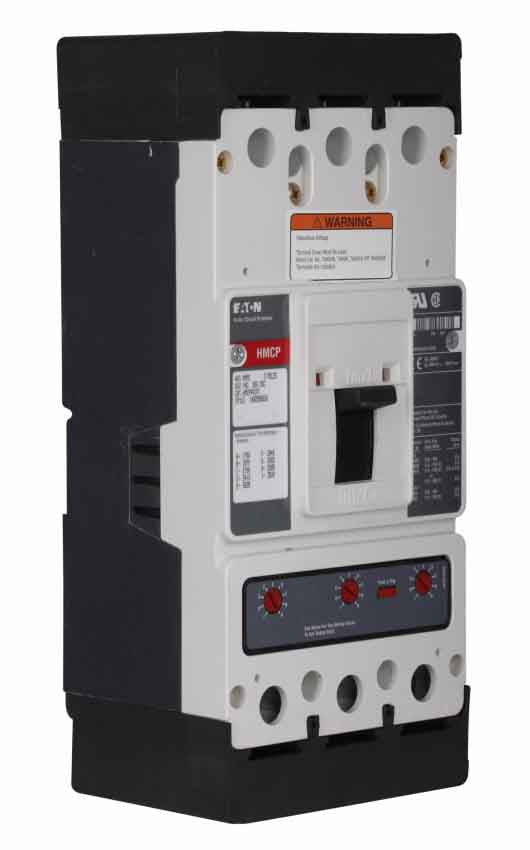

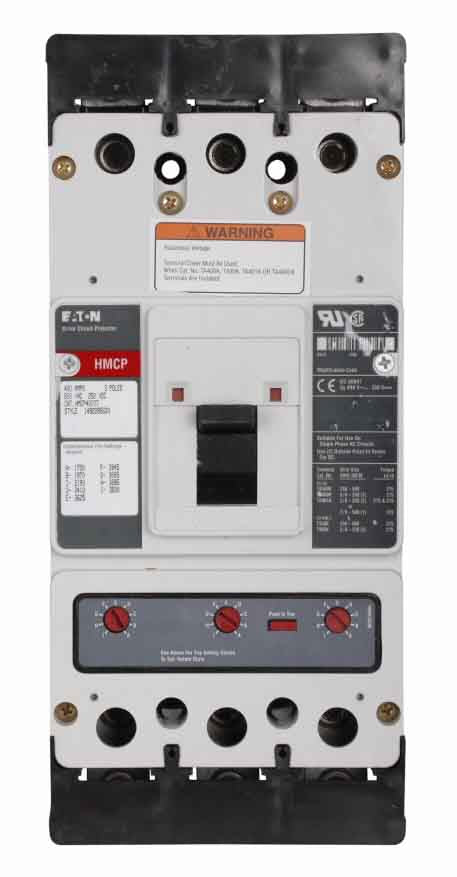

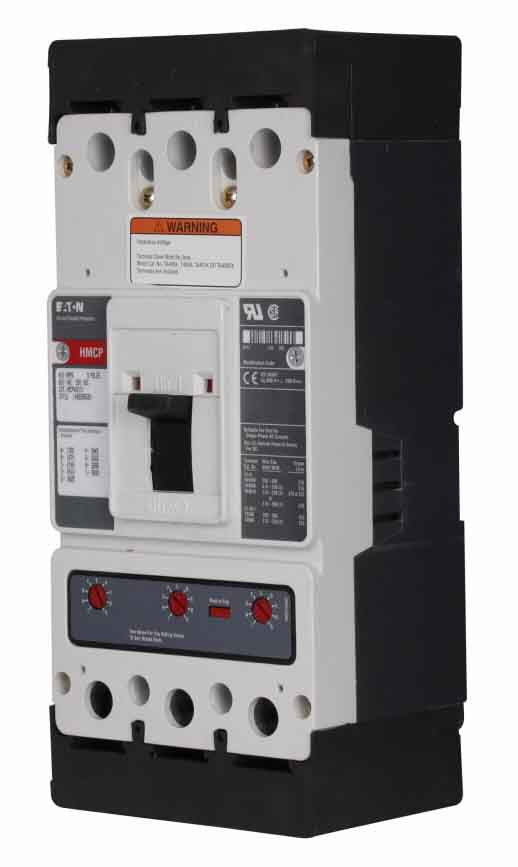

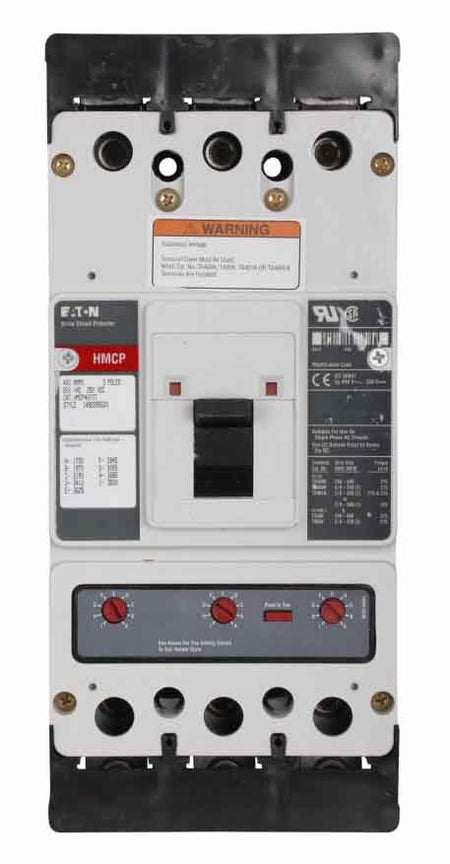

The Eaton HMCP400L5C is a 400A, 3-pole molded case motor circuit protector (MCP) from the Eaton Series C HMCP family. It is designed for motor protection applications and provides magnetic-only protection for compatible motor circuits.

The HMCP400L5C is rated for 600V AC and 250V DC and features a 1125–2250A magnetic trip range. It has line- and load-side connections with non-aluminum terminals and is designed for compatible J- and K-frame applications.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Accessory
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series C
• Series: Series C
• Type: HMCP
• Current Rating: 400A
• Number of Poles: 3-Pole
• Frame: J-Frame / K-Frame
• AC Voltage Rating: 600V
• DC Voltage Rating: 250V DC
• Magnetic Trip Range: 1125–2250A
• Connection: Line and Load
• Terminal Material: Non-Aluminum
• Application: Motor Circuit Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCP400L5C
• Catalog Number: HMCP400L5C
• Model: HMCP400L5C
• Product Family: Eaton Series C HMCP Motor Circuit Protectors
• Series: Series C
• Type: HMCP
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Motor Circuit Protector
• Configuration: 3-Pole, 400A
• Frame Compatibility: J-Frame / K-Frame
• UPC:786679342565

Compatibility:

Designed for use with compatible Eaton Series C HMCP motor circuit protection equipment supporting the specified J- and K-frame configuration. The HMCP400L5C provides 400A motor circuit protection with a 1125–2250A magnetic trip range for compatible 600V AC / 250V DC applications.

The device uses line- and load-side non-aluminum connections. Always verify the specific breaker frame, motor application, system voltage, magnetic trip requirements, terminal configuration, and installation requirements before installation.
