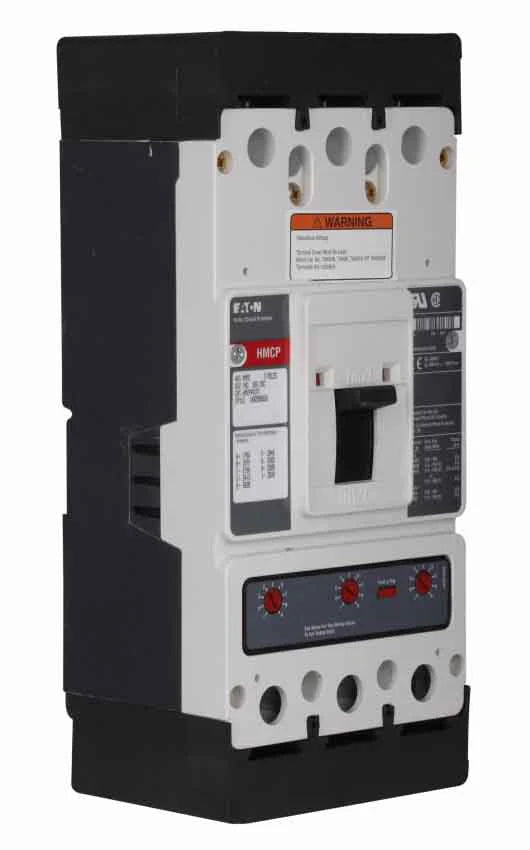

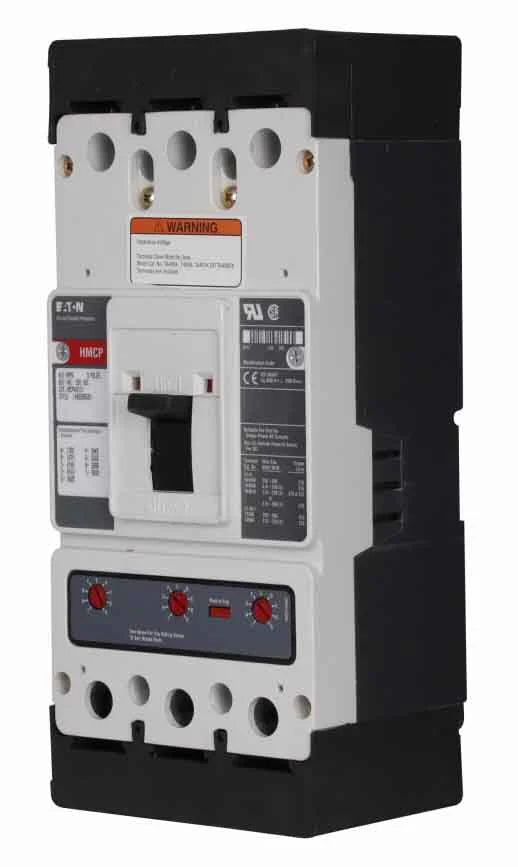

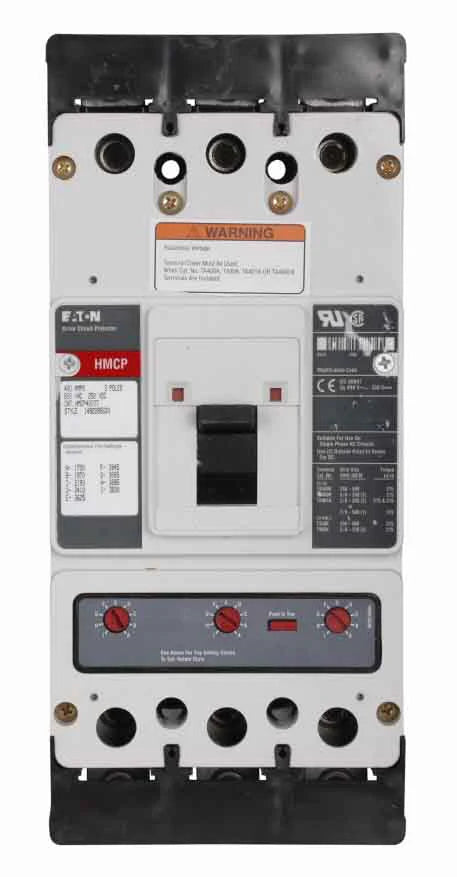

Eaton Cutler-Hammer HMCP400L5X 400 Amp Motor Circuit Protector – 3 Pole – 600V – Series C

The Eaton Cutler-Hammer HMCP400L5X is a Series C motor circuit protector rated at 400 A. It features a three-pole configuration, a J-K frame designation, and a magnetic trip range of 1,125–2,250 A. The unit is rated for 600 V AC and 250 V DC, with line- and load-side connections and non-aluminum construction.

Specifications

• Brand: Eaton / Cutler-Hammer
• MPN: HMCP400L5X
• Product Type: Motor Circuit Protector (MCP)
• Series: Series C
• Frame: J-K
• Rated Current: 400 A
• Number of Poles: 3
• Rated AC Voltage: 600 V
• Rated DC Voltage: 250 V
• Magnetic Trip Range: 1,125–2,250 A
• Protection Type: Magnetic motor protection
• Connections: Line and load
• Terminal Material: Non-aluminum

Part Numbers & Identification

• Manufacturer: Eaton
• Catalog Number: HMCP400L5X
• Product Family: Series C
• Circuit Protector Type: Motor Circuit Protector
• Frame Designation: J-K
• Identification: Three-pole, 400 A motor circuit protector


Compatibility

Suitable for Eaton Series C motor control applications designed for a three-pole, 400 A motor circuit protector with a magnetic trip range of 1,125–2,250 A and line- and load-side connections.
