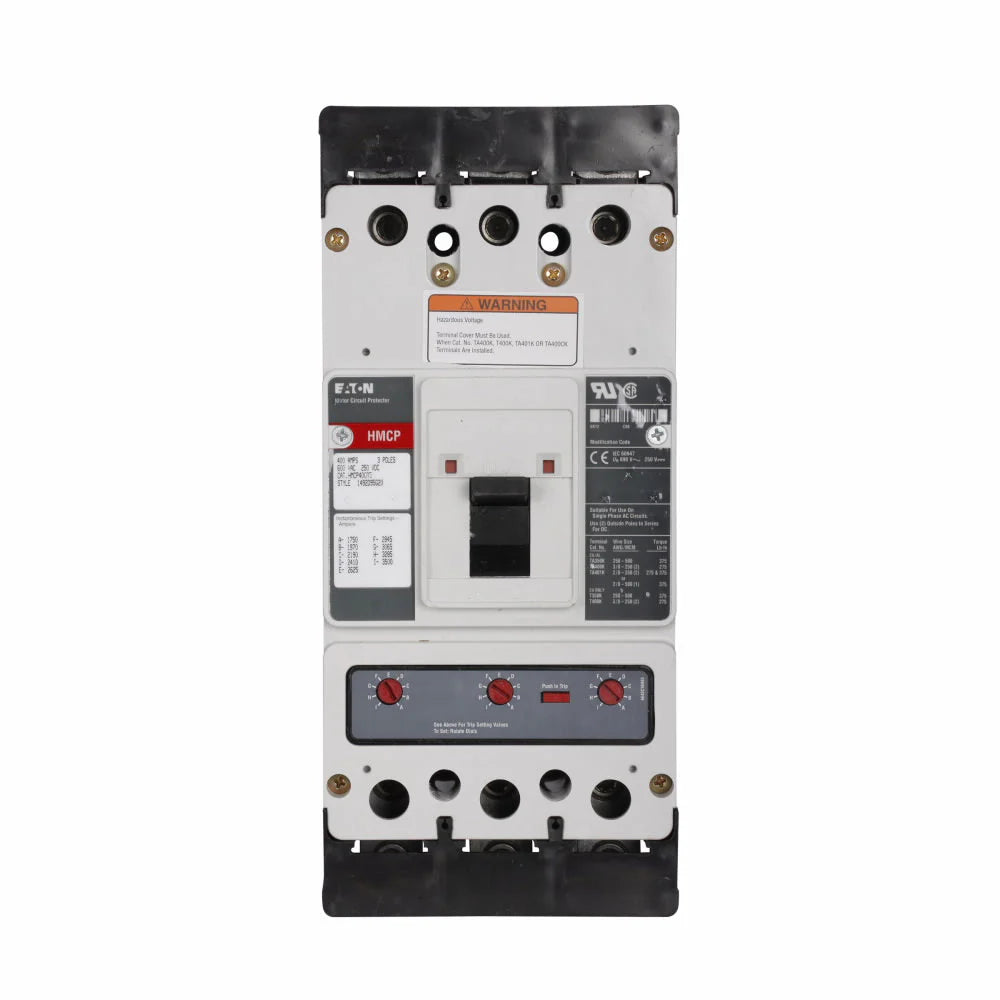

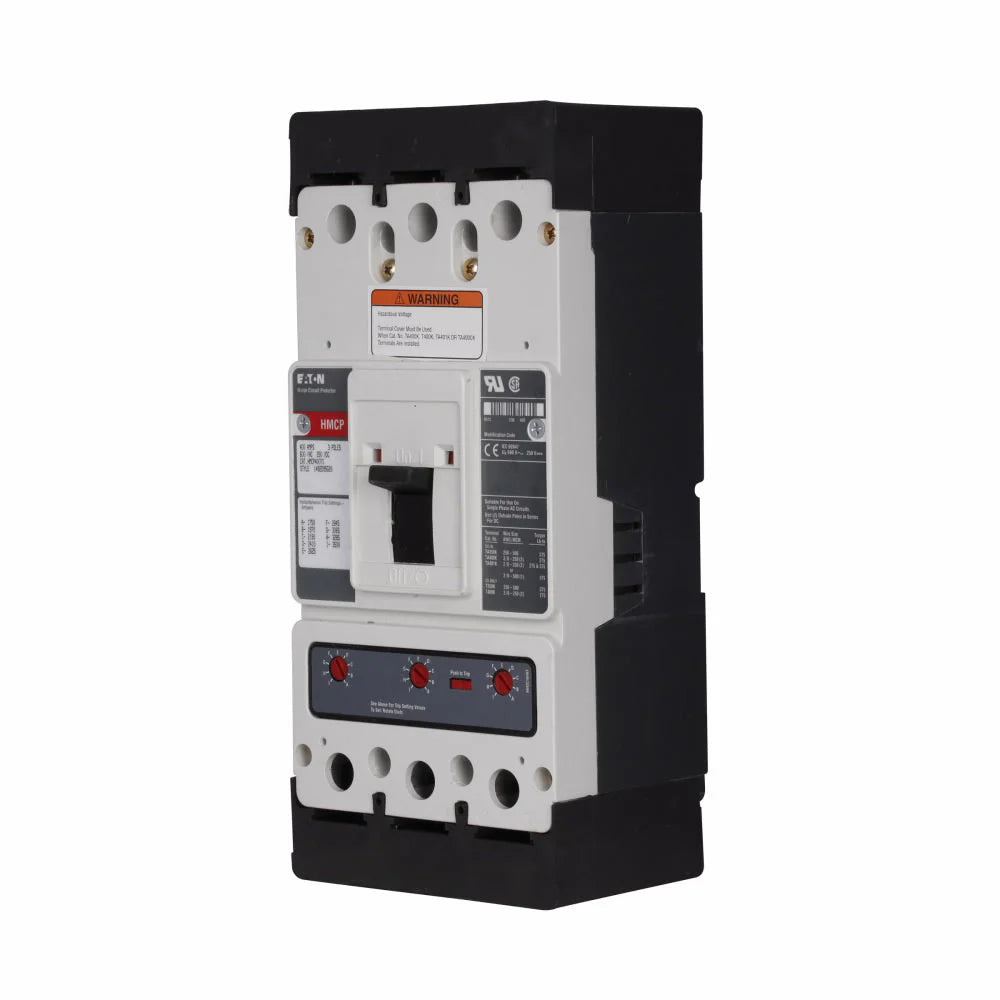

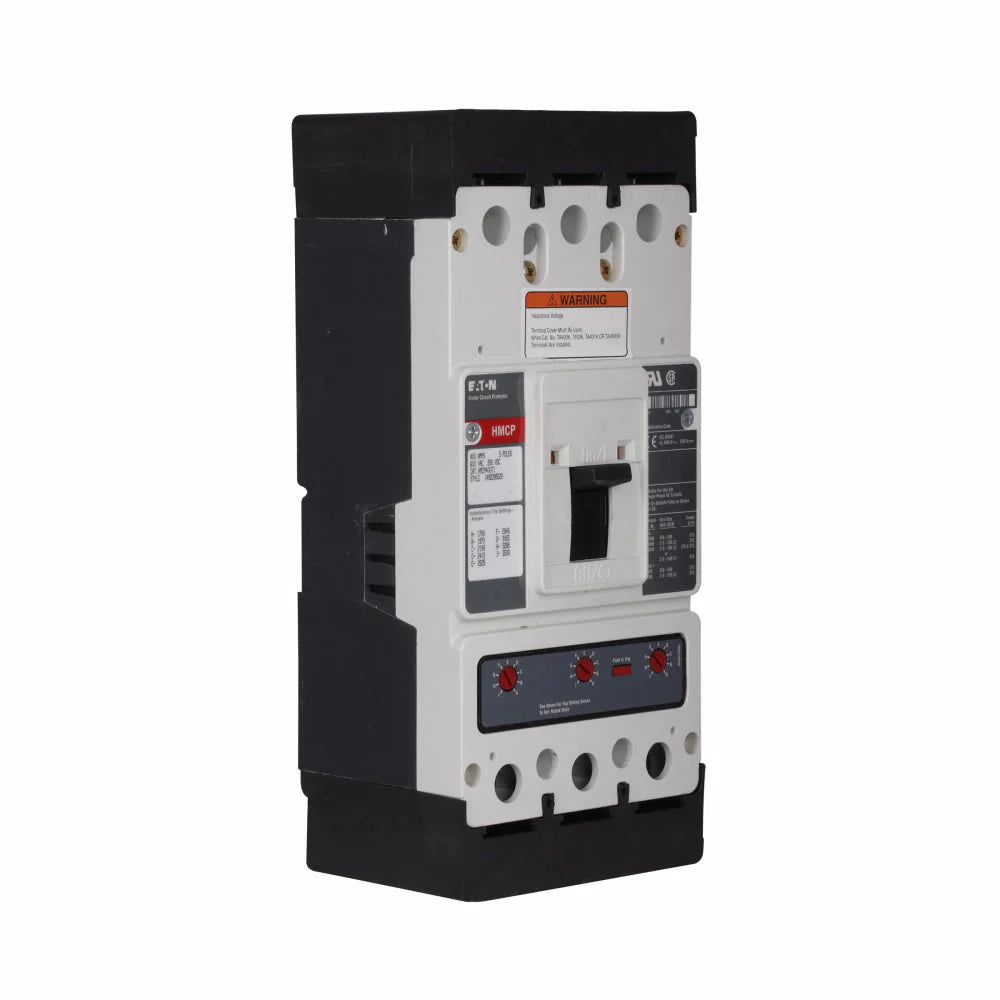

Eaton Cutler-Hammer HMCP400N5X 400 Amp Motor Circuit Protector – 3 Pole – 600V – Series C

The Eaton Cutler-Hammer HMCP400N5X is a Series C, Type HMCP motor circuit protector featuring a K-frame, three-pole configuration and a 400 A rating. It provides magnetic-only instantaneous protection with a magnetic trip range of 1,500–3,000 A. The unit is designed for feed-through connections and includes non-aluminum line- and load-side lug terminals.

Specifications

• Brand: Eaton / Cutler-Hammer / Westinghouse
• MPN: HMCP400N5X
• Product Type: Motor Circuit Protector (MCP)
• Series: Series C
• Frame / Type: K-frame / HMCP
• Rated Current: 400 A
• Number of Poles: 3
• Phases: 3-phase
• Rated Voltage: 600 V
• Interrupting Capacity at 480 V: 35 kA
• Protection Type: Magnetic-only
• Trip Function: Instantaneous protection only
• Magnetic Trip Range: 1,500–3,000 A
• Connection Type: Feed-through
• Terminals: Non-aluminum line- and load-side lug terminal

Part Numbers & Identification

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Catalog Number: HMCP400N5X
• Product Family: Series C
• Circuit Protector Type: HMCP
• Frame: K-frame
• Identification: Three-pole, 400 A magnetic-only motor circuit protector
• UPC:786679342428

Compatibility

Suitable for Eaton Series C K-frame motor control applications requiring a 400 A motor circuit protector with instantaneous magnetic protection and a magnetic trip range of 1,500–3,000 A.
