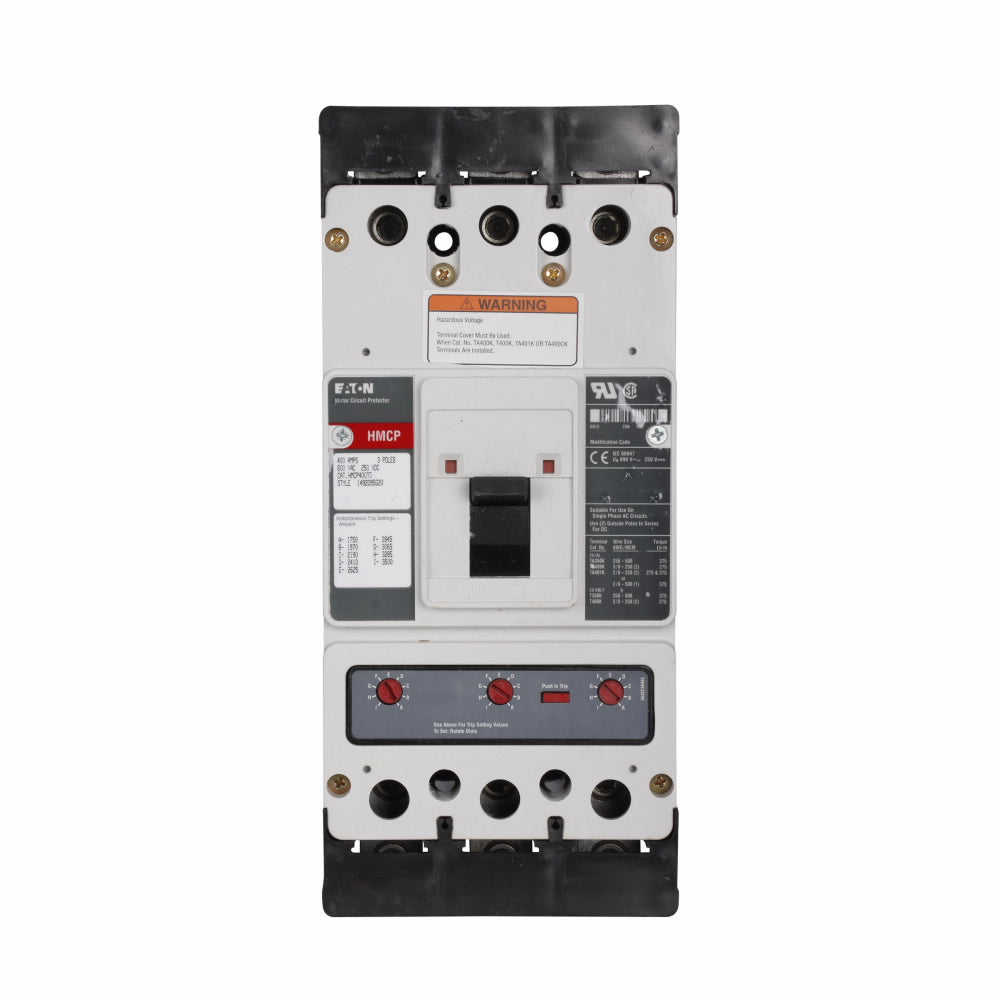

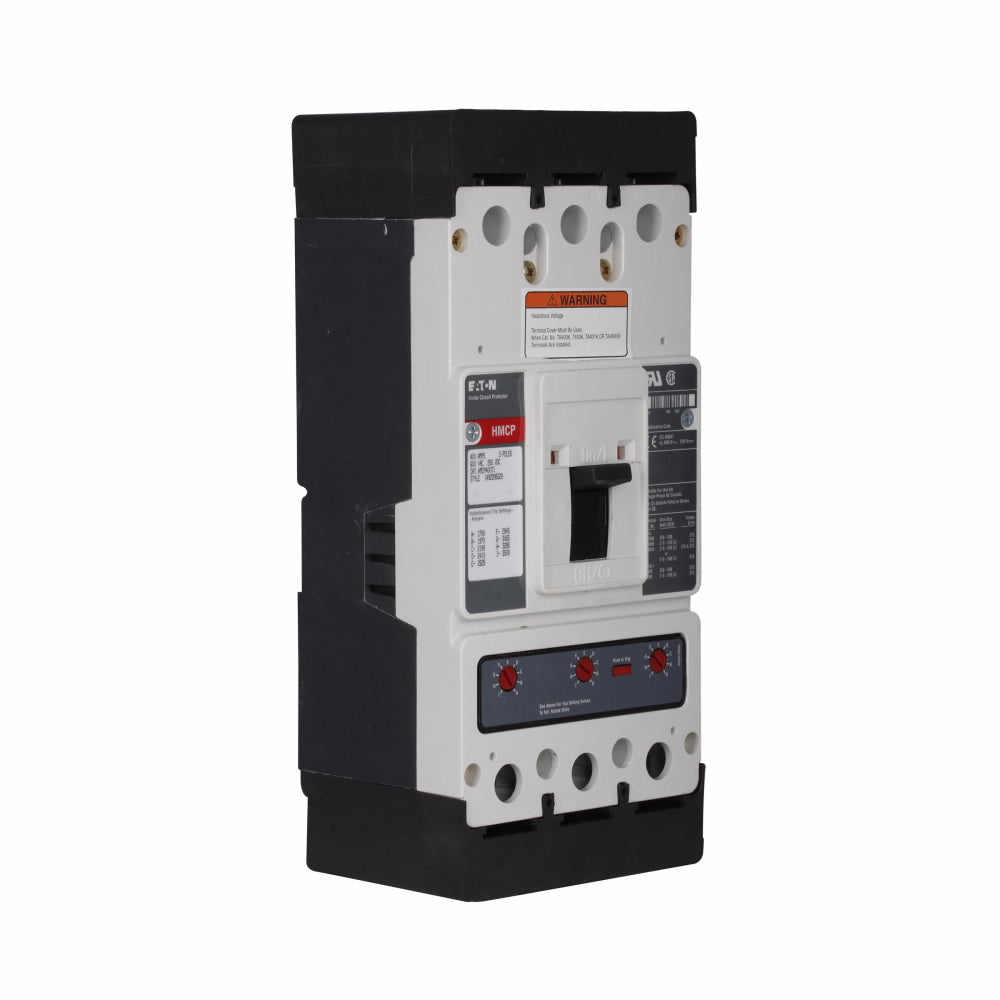

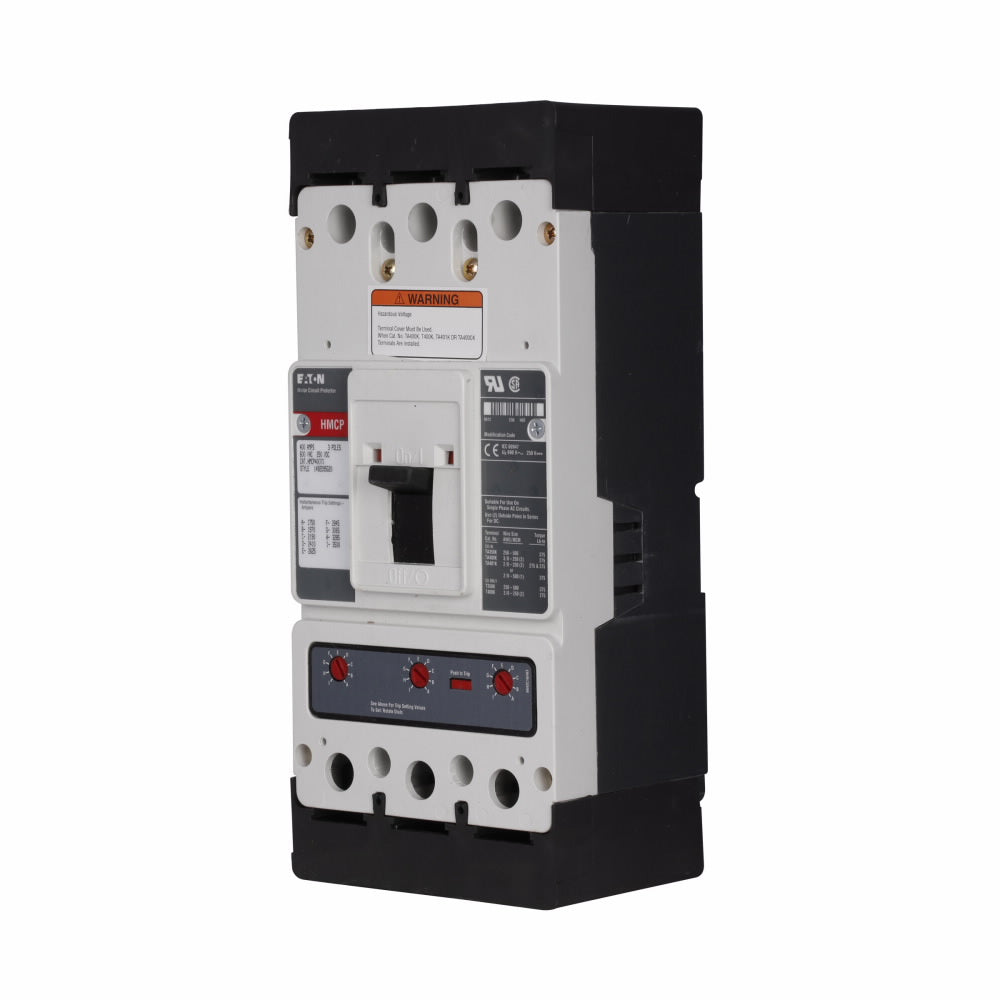

Eaton HMCP400R5C Molded Case Circuit Breaker – 400A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – Series C HMCP K-Frame

The Eaton HMCP400R5C is a 400A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Eaton / Cutler-Hammer / Westinghouse Series C Type HMCP K-Frame. It provides magnetic-only instantaneous protection rather than thermal-magnetic protection.

The HMCP400R5C is rated for 600V and provides a 35kA interrupting rating at 480V. It features a 1750–3500A magnetic range, a feed-thru configuration, and non-aluminum line-side and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series C
• Series: Series C
• Type: HMCP
• Frame: K-Frame
• Catalog No.: HMCP400R5C
• Current Rating: 400A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Only
• Connection / Configuration: Feed-Thru
• Terminal Type: Non-Aluminum Line-Side and Load-Side Lug Terminals
• Magnetic Range: 1750–3500A
• Application: Motor Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCP400R5C
• Catalog Number: HMCP400R5C
• Model: HMCP400R5C
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HMCP
• Frame: K-Frame
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 400A
• UPC:786679342602

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type HMCP K-Frame motor circuit protection applications. The HMCP400R5C provides magnetic-only instantaneous protection with a 1750–3500A magnetic range.

The breaker features a feed-thru configuration with non-aluminum line-side and load-side lug terminals. Always verify the specific motor application, panelboard or electrical equipment model, approved MCP type, system voltage, available fault current, pole configuration, magnetic trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
