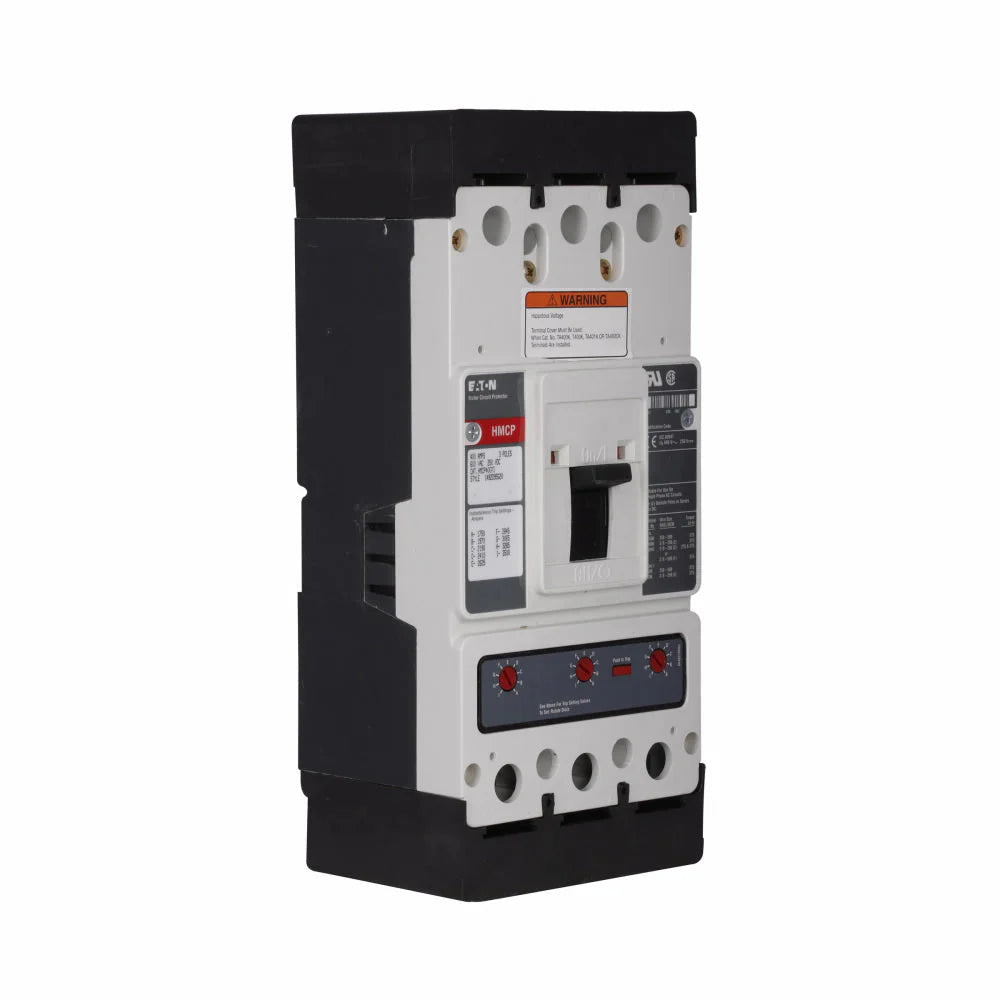

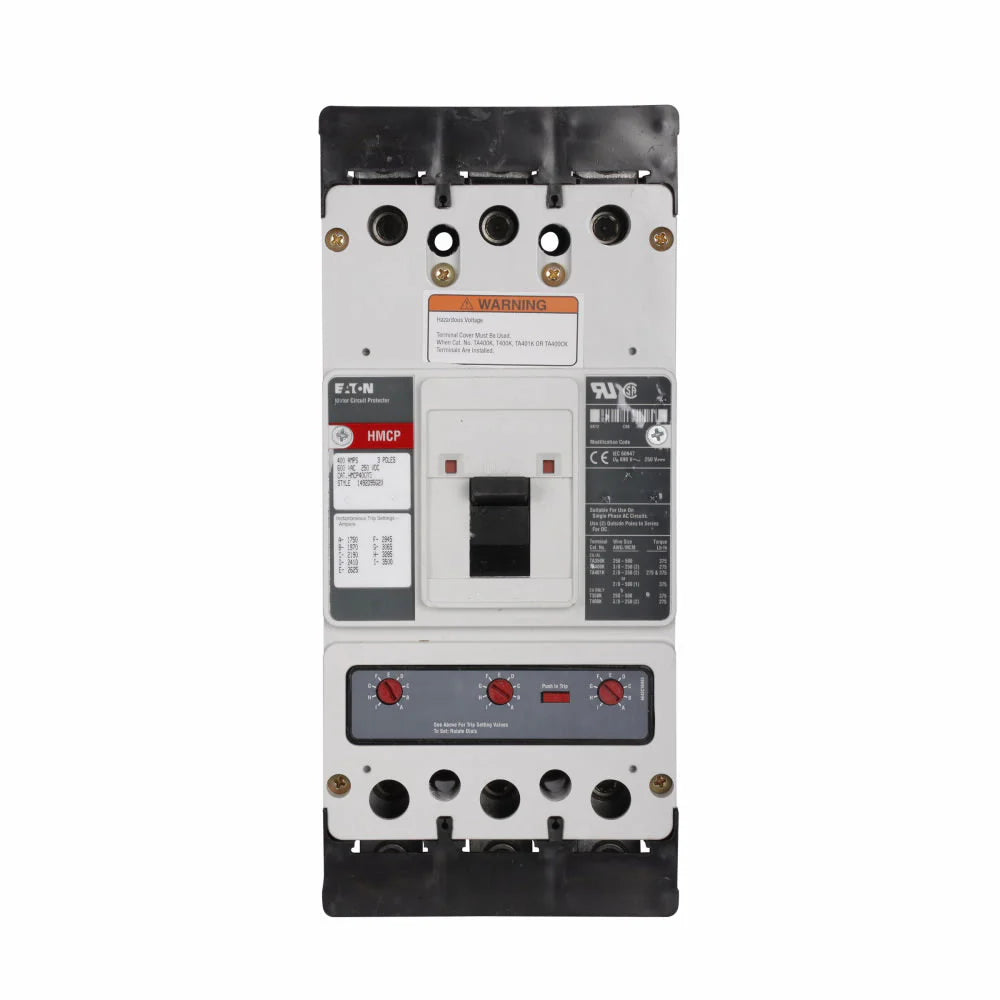

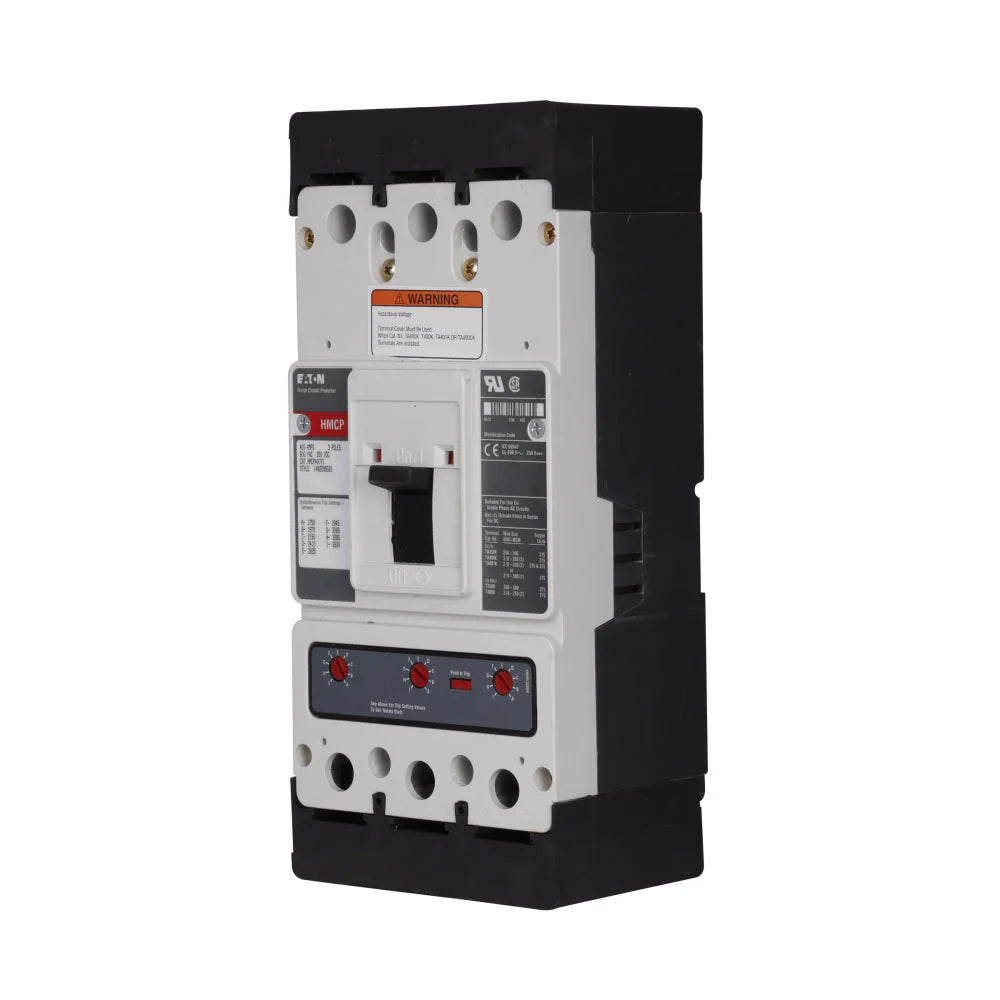

Eaton HMCP400W5C Molded Case Circuit Breaker – 400A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – Series C HMCP K-Frame

The Eaton HMCP400W5C is a 400A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Eaton / Cutler-Hammer / Westinghouse Series C Type HMCP K-Frame. It provides magnetic-only instantaneous protection rather than thermal-magnetic protection.

The HMCP400W5C is rated for 600V and provides a 35kA interrupting rating at 480V. It features an Instantaneous (I) protection-only trip, a 1250–2500A magnetic range, and a feed-thru configuration with non-aluminum line- and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series C
• Series: Series C
• Type: HMCP
• Frame: K-Frame
• Catalog No.: HMCP400W5C
• Current Rating: 400A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Protection Only
• Mounting / Configuration: Feed-Thru
• Terminal Configuration: Non-Aluminum Line- and Load-Side Lug Terminals
• Magnetic Range: 1250–2500A
• Application: Motor Circuit Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCP400W5C
• Catalog Number: HMCP400W5C
• Model: HMCP400W5C
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HMCP
• Frame: K-Frame
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 400A
• Trip Configuration: Instantaneous Protection Only
• UPC:786679150962

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer / Westinghouse Series C Type HMCP K-Frame motor circuit protection applications. The HMCP400W5C is a 3-pole, 400A MCP with magnetic-only instantaneous protection and a 1250–2500A magnetic range.

The breaker features a feed-thru configuration with non-aluminum line- and load-side lug terminals.
