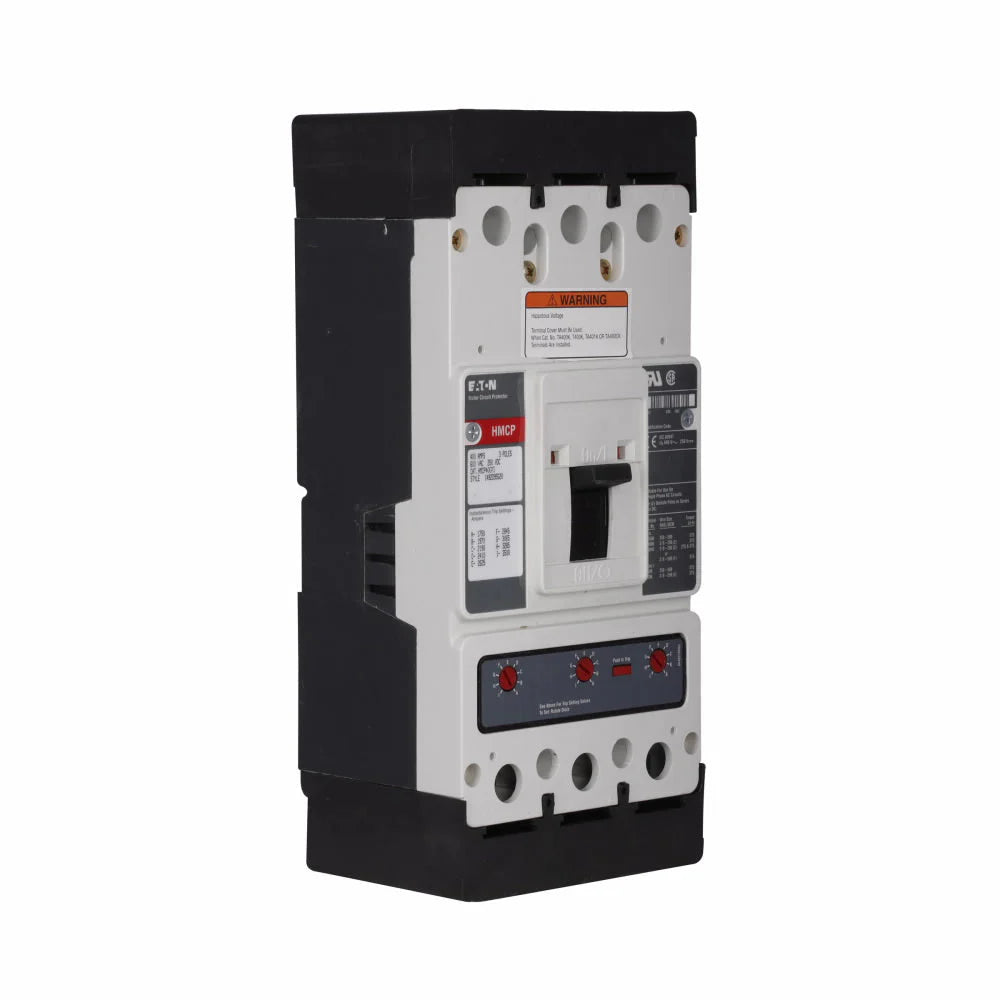

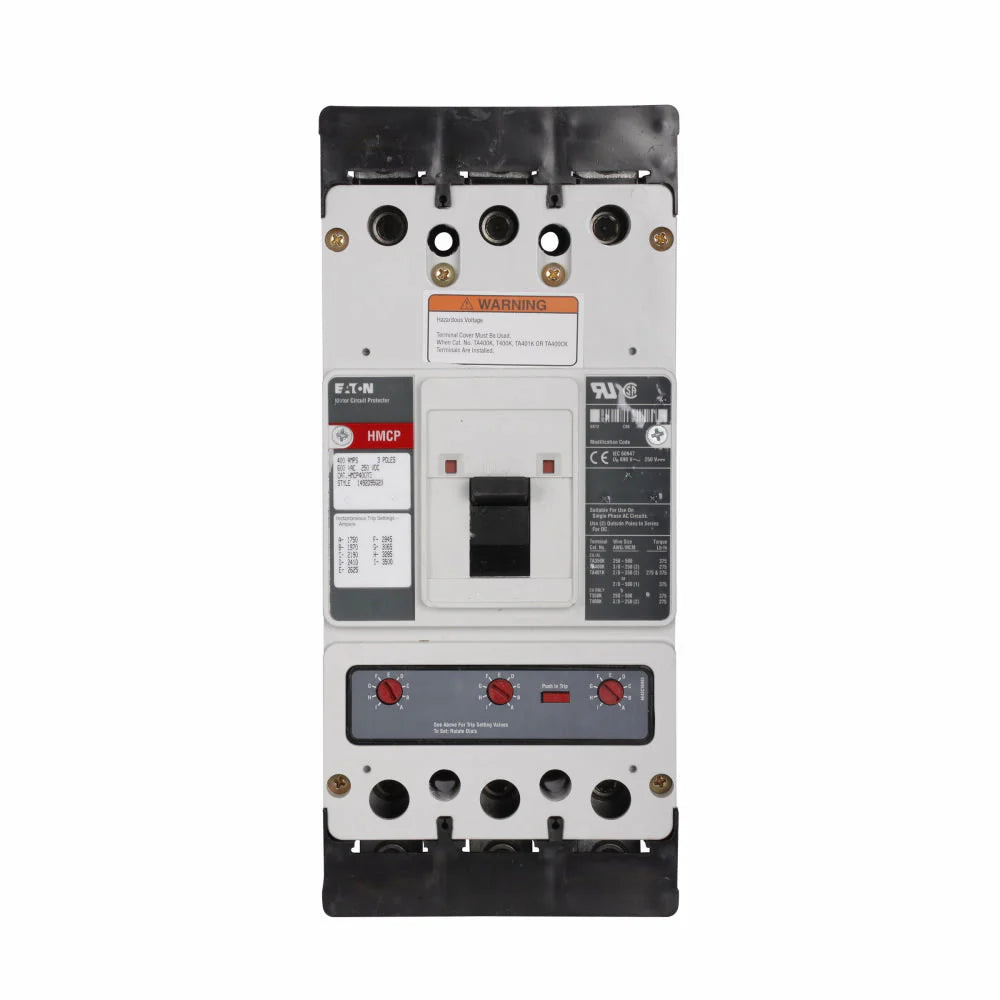

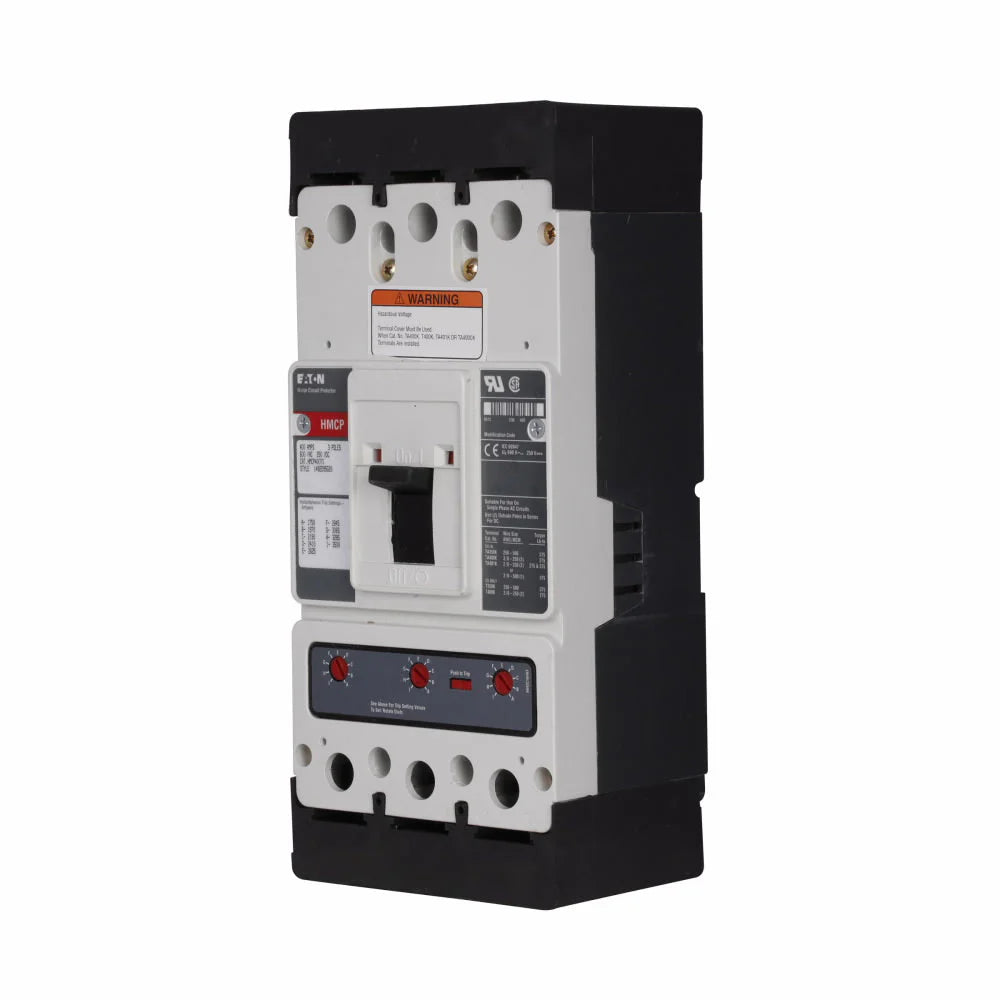

Eaton Cutler-Hammer HMCP400W5Y 400 Amp Motor Circuit Protector – 3 Pole – 600V – Series C

The Eaton Cutler-Hammer HMCP400W5Y is a Series C, K-frame motor circuit protector (MCP) rated at 400 A. It features three-pole construction with instantaneous magnetic protection only and a magnetic trip range of 1,250–2,500 A. The device has feed-through connections and non-aluminum line- and load-side lug terminals, with a specified interrupting capacity of 35 kA at 480 V.

Specifications

• Brand: Eaton / Cutler-Hammer / Westinghouse
• MPN: HMCP400W5Y
• Product Type: Motor Circuit Protector (MCP)
• Series: Series C
• Type: HMCP
• Frame: K frame
• Rated Current: 400 A
• Number of Poles: 3
• Phases: 3-phase
• Rated Voltage: 600 V
• Interrupting Capacity at 480 V: 35 kA
• Connection Type: Feed-through
• Protection Type: Instantaneous magnetic protection only
• Magnetic Trip Range: 1,250–2,500 A
• Line-Side Terminals: Non-aluminum lug terminals
• Load-Side Terminals: Non-aluminum lug terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand Families: Cutler-Hammer / Westinghouse
• Catalog Number: HMCP400W5Y
• Series Designation: Series C
• Device Type: HMCP motor circuit protector
• Frame Designation: K frame
• Current Rating: 400 A
• UPC:786679151167

Compatibility

Suitable for Eaton Series C K-frame motor control applications requiring a 400 A, three-pole motor circuit protector with instantaneous magnetic protection and a magnetic trip range of 1,250–2,500 A.
