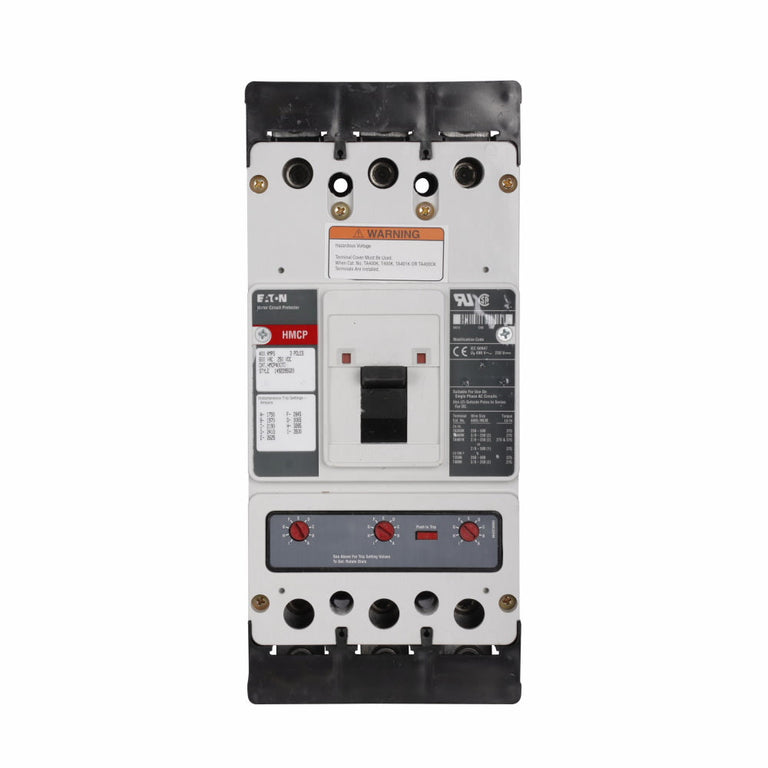

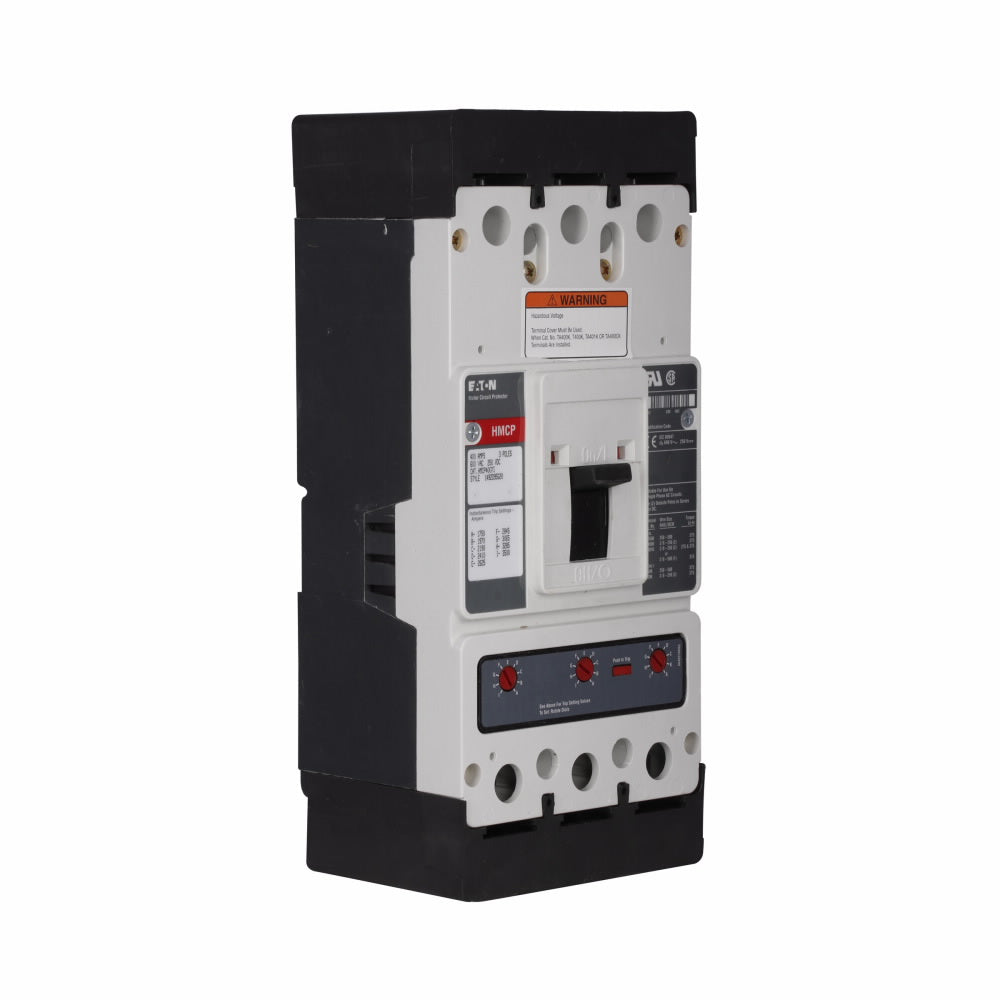

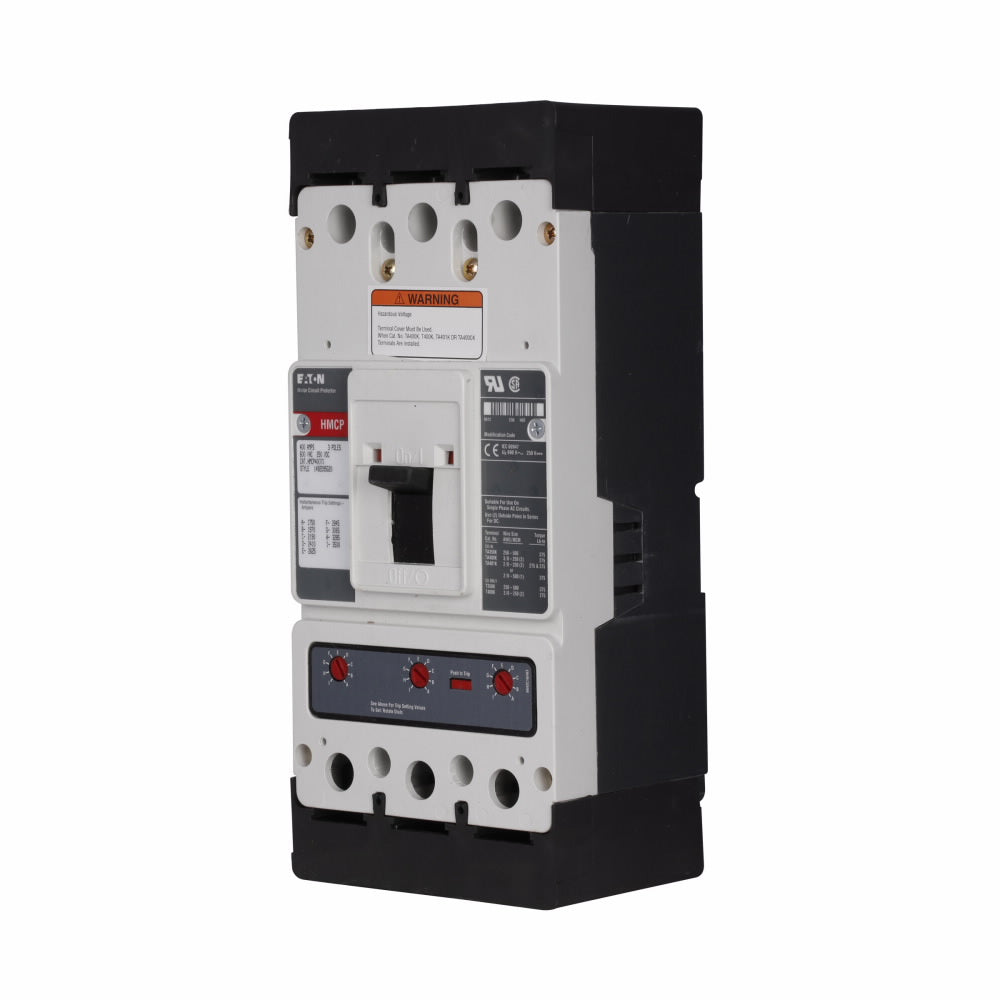

Eaton HMCP400Y5C Molded Case Circuit Breaker – 400A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – Series C HMCP K-Frame

The Eaton HMCP400Y5C is a 400A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Eaton / Cutler-Hammer / Westinghouse Series C Type HMCP K-Frame. It provides magnetic-only protection with an Instantaneous (I) trip function.

The HMCP400Y5C is rated for 600V and provides a 35kA interrupting rating at 480V. It features a feed-thru configuration, non-aluminum line- and load-side lug terminals, and a 2250–4500A magnetic trip range.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series C
• Series: Series C
• Type: HMCP
• Frame: K-Frame
• Catalog No.: HMCP400Y5C
• Current Rating: 400A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Protection Only
• Mounting / Configuration: Feed-Thru
• Terminal Type: Non-Aluminum Line- and Load-Side Lug Terminals
• Magnetic Trip Range: 2250–4500A
• Application: Motor Circuit Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCP400Y5C
• Catalog Number: HMCP400Y5C
• Model: HMCP400Y5C
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HMCP
• Frame: K-Frame
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 400A
• Trip Configuration: Instantaneous Only
• UPC:786679108345

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type HMCP K-Frame electrical distribution equipment that accepts HMCP motor circuit protectors. The HMCP400Y5C provides 400A, 3-pole magnetic-only motor circuit protection for compatible 600V electrical applications.

The breaker features a 2250–4500A magnetic trip range, feed-thru configuration, and non-aluminum line- and load-side lug terminals.
