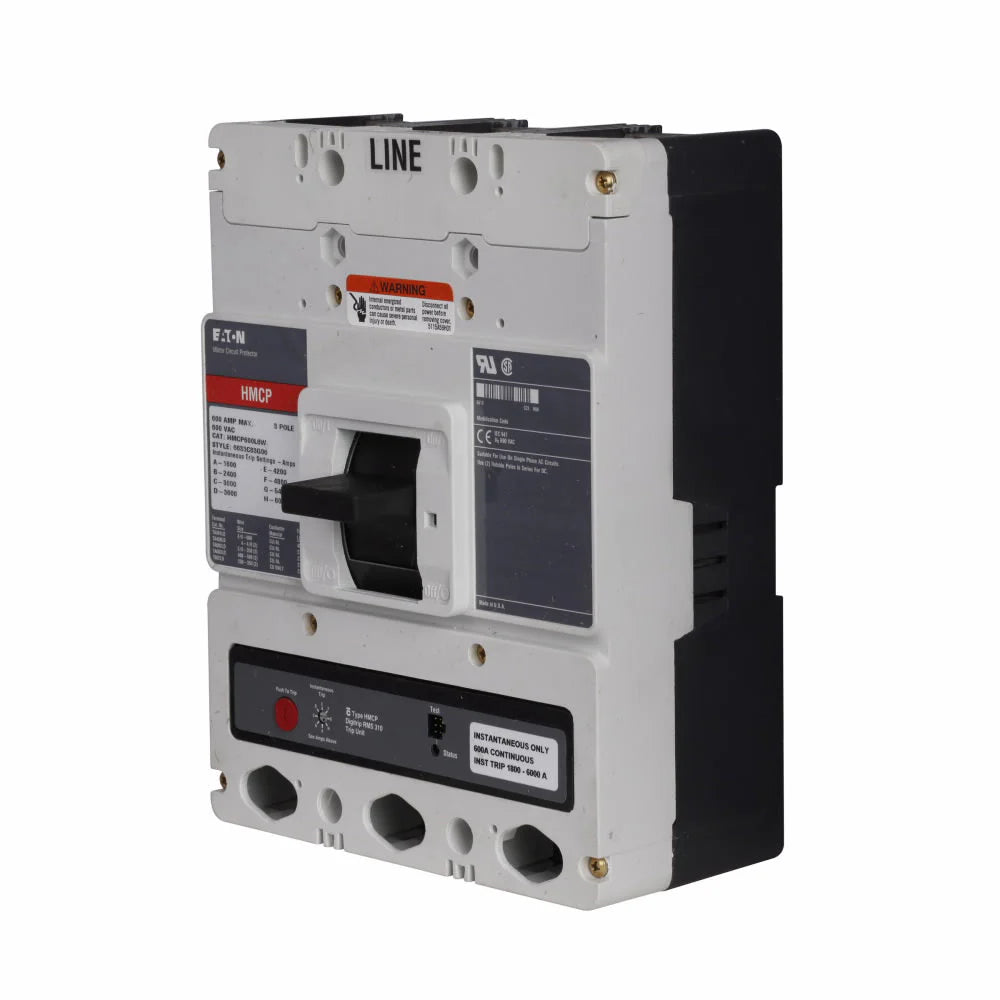

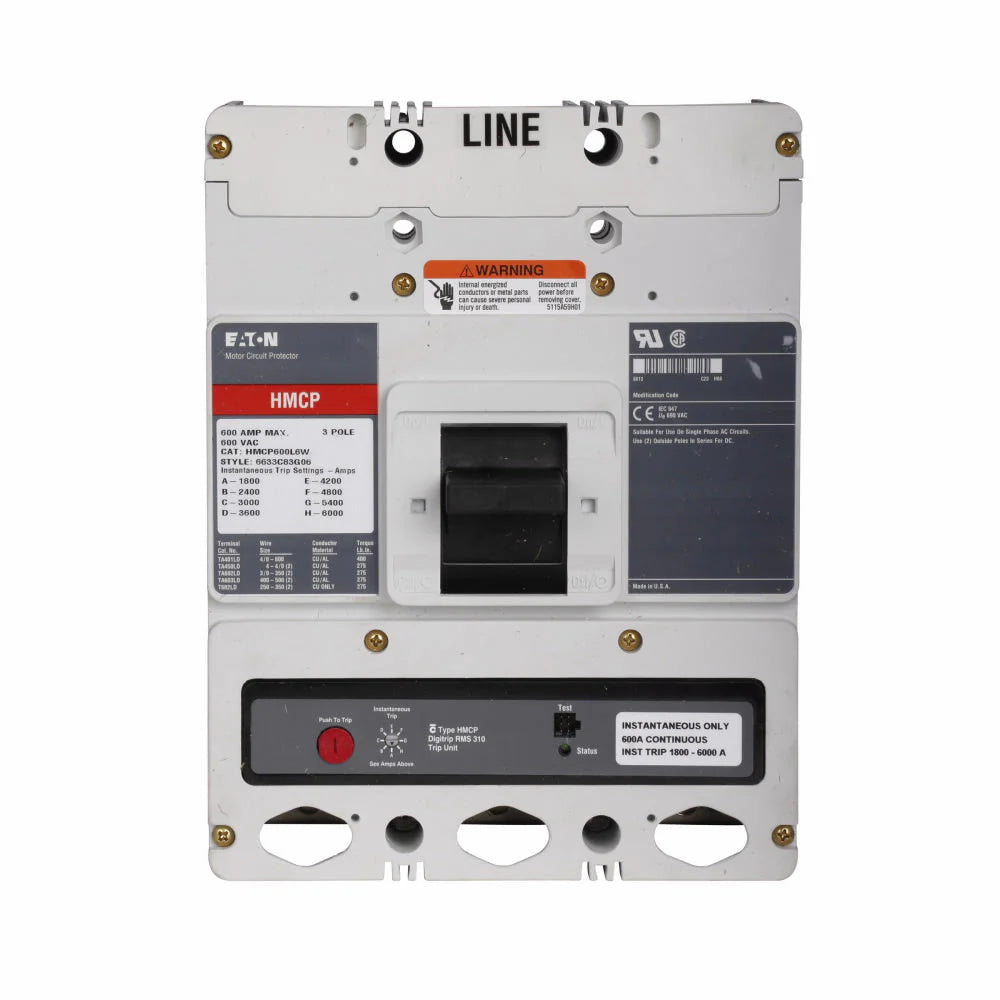

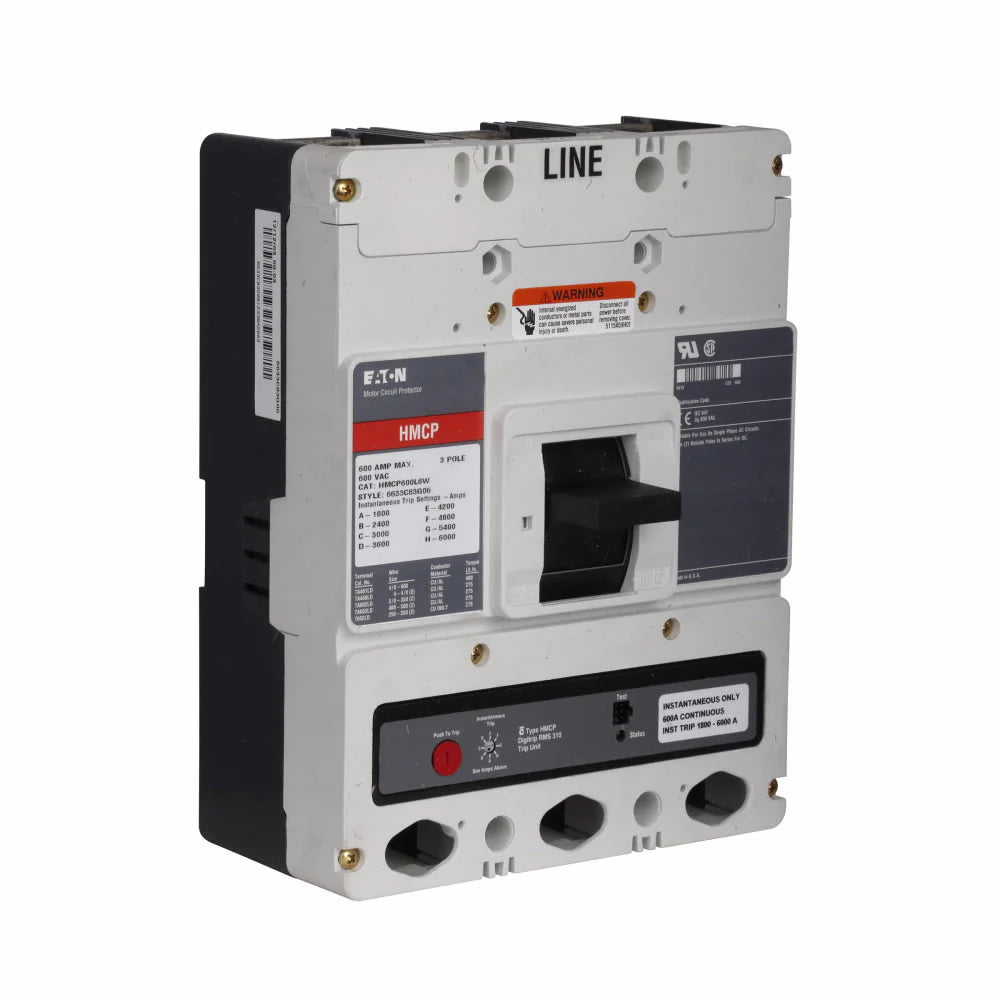

Eaton Cutler-Hammer HMCP600L6 600 Amp Motor Circuit Protector – 3 Pole – 600V – Series C

The Eaton Cutler-Hammer HMCP600L6 is a Series C, L-frame motor circuit protector (MCP) rated at 600 A. It features three-pole construction and instantaneous magnetic protection only, with a magnetic trip range of 1,800–6,000 A. This bolt-on device has a specified interrupting capacity of 35 kA at 480 V.

Specifications

• Brand: Eaton / Cutler-Hammer / Westinghouse
• MPN: HMCP600L6
• Product Type: Motor Circuit Protector (MCP)
• Series: Series C
• Type: HMCP
• Frame: L frame
• Rated Current: 600 A
• Number of Poles: 3
• Phases: 3-phase
• Rated Voltage: 600 V
• Interrupting Capacity at 480 V: 35 kA
• Mounting Type: Bolt-on
• Protection Type: Instantaneous magnetic protection only
• Magnetic Trip Range: 1,800–6,000 A

Part Numbers & Identification

• Manufacturer: Eaton
• Brand Families: Cutler-Hammer / Westinghouse
• Catalog Number: HMCP600L6
• Series Designation: Series C
• Device Type: HMCP motor circuit protector
• Frame Designation: L frame
• Current Rating: 600 A
• UPC:782114345498

Compatibility

Suitable for Eaton Series C L-frame motor control applications requiring a 600 A, three-pole motor circuit protector with instantaneous magnetic protection and a magnetic trip range of 1,800–6,000 A.
