Eaton HMCP600L6W Molded Case Circuit Breaker – 600A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Bolt-On – Series C HMCP L-Frame

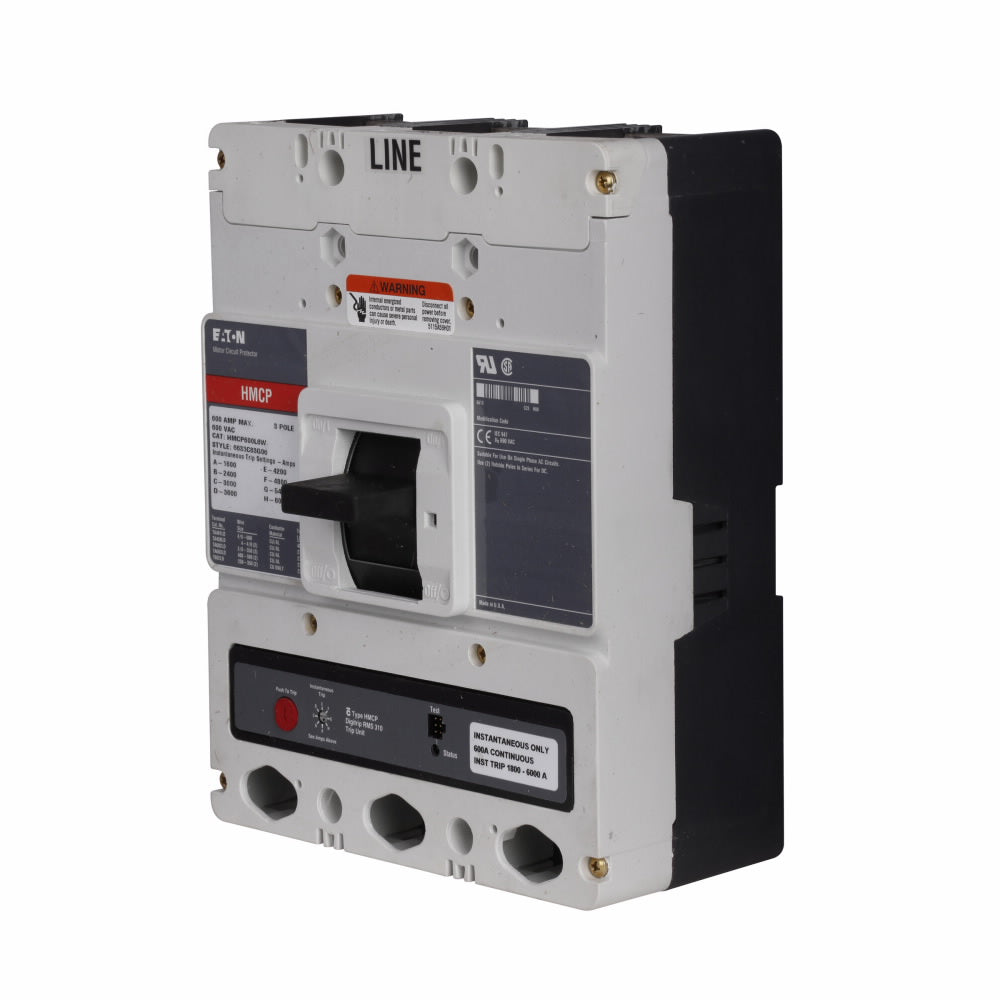

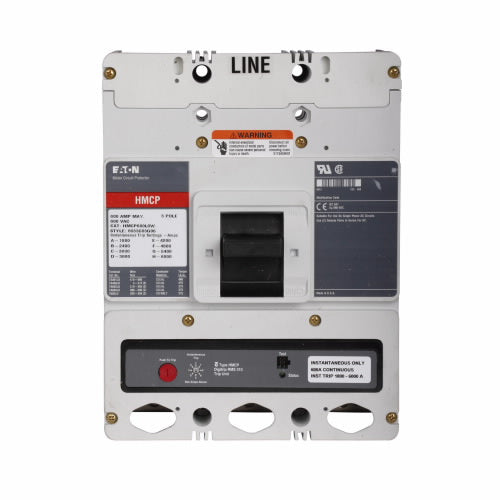

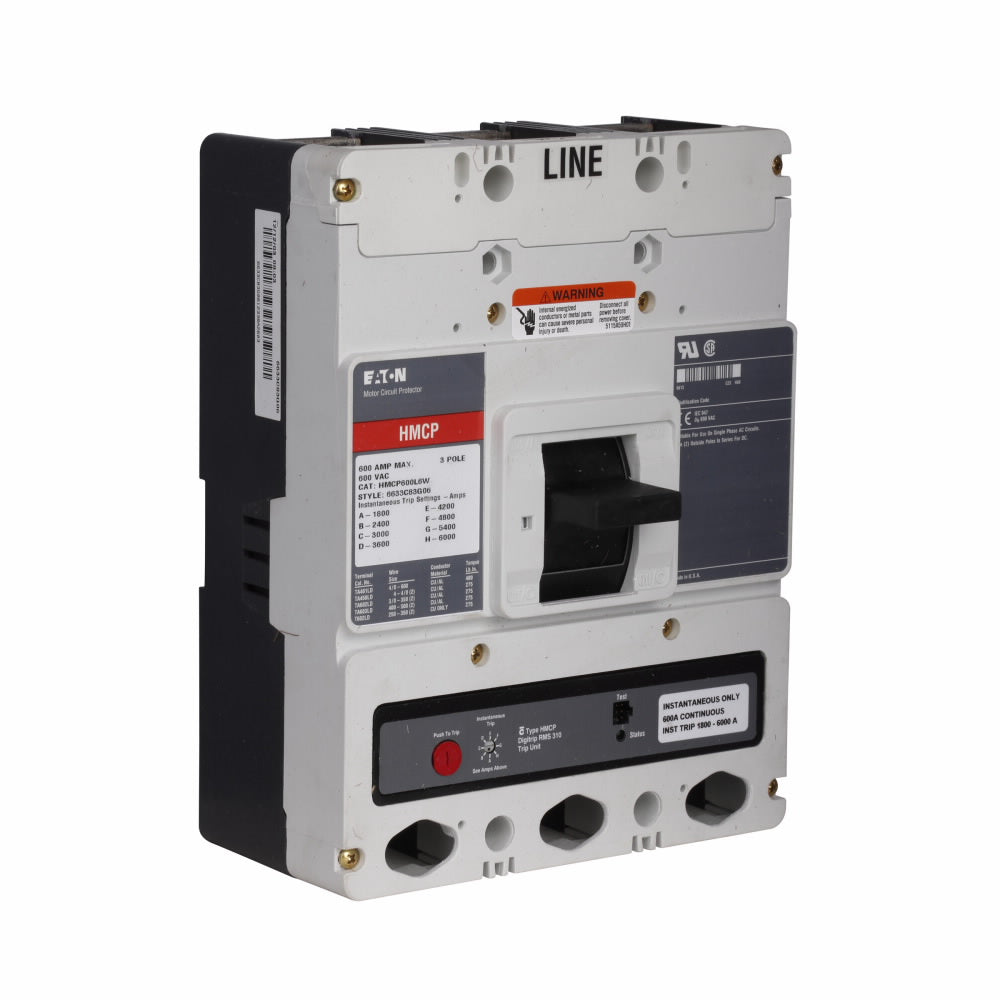

The Eaton HMCP600L6W is a 600A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Eaton / Cutler-Hammer / Westinghouse Series C Type HMCP L-Frame. It provides magnetic-only protection with an Instantaneous (I) trip function.

The HMCP600L6W is rated for 600V and provides a 35kA interrupting rating at 480V. It features a bolt-on configuration, a 1800–6000A magnetic trip range, and is supplied without lugs.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Series C
• Series: Series C
• Type: HMCP
• Frame: L-Frame
• Catalog No.: HMCP600L6W
• Current Rating: 600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Protection Only
• Mounting / Configuration: Bolt-On
• Magnetic Trip Range: 1800–6000A
• Lugs: Not Included
• Application: Motor Circuit Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HMCP600L6W
• Catalog Number: HMCP600L6W
• Model: HMCP600L6W
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HMCP
• Frame: L-Frame
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 600A
• Trip Configuration: Instantaneous Only
• UPC:786679281369

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type HMCP L-Frame electrical distribution equipment that accepts HMCP motor circuit protectors. The HMCP600L6W provides 600A, 3-pole magnetic-only motor circuit protection for compatible 600V electrical applications.

The breaker has an 1800–6000A magnetic trip range and is supplied without lugs.
