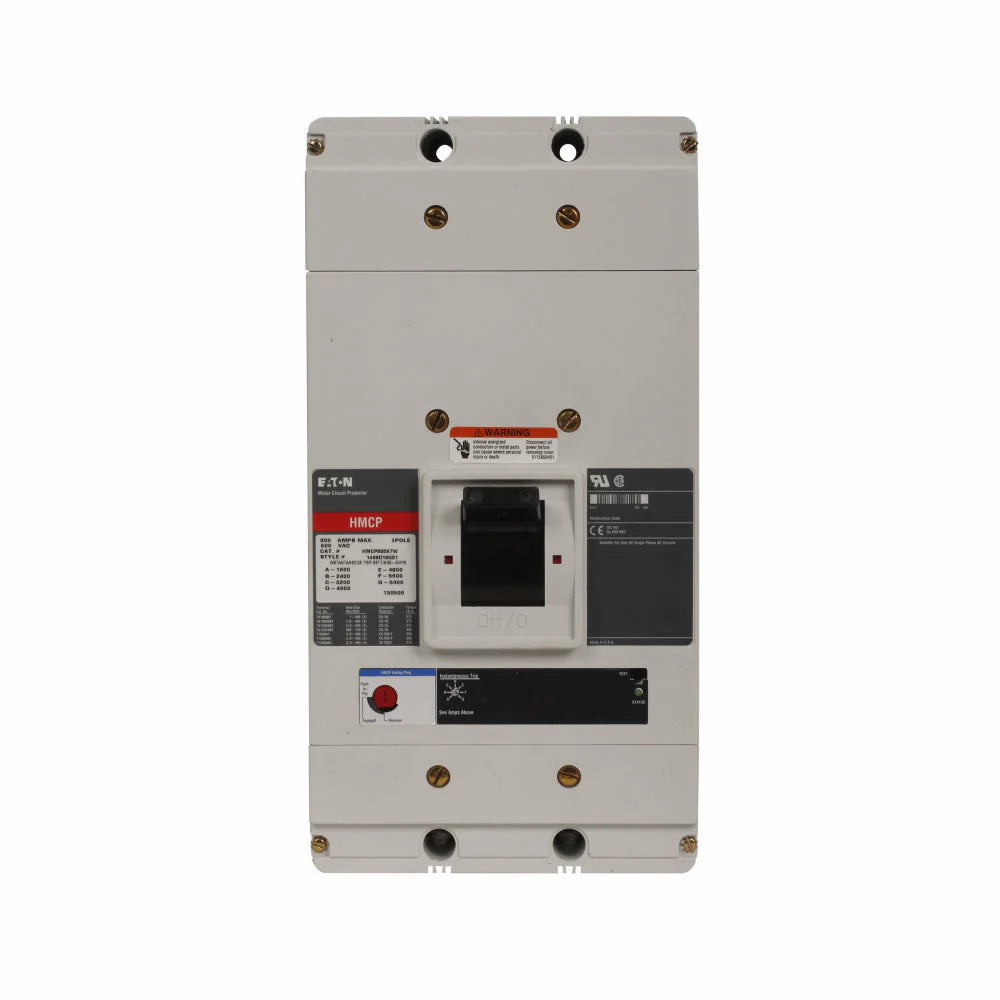

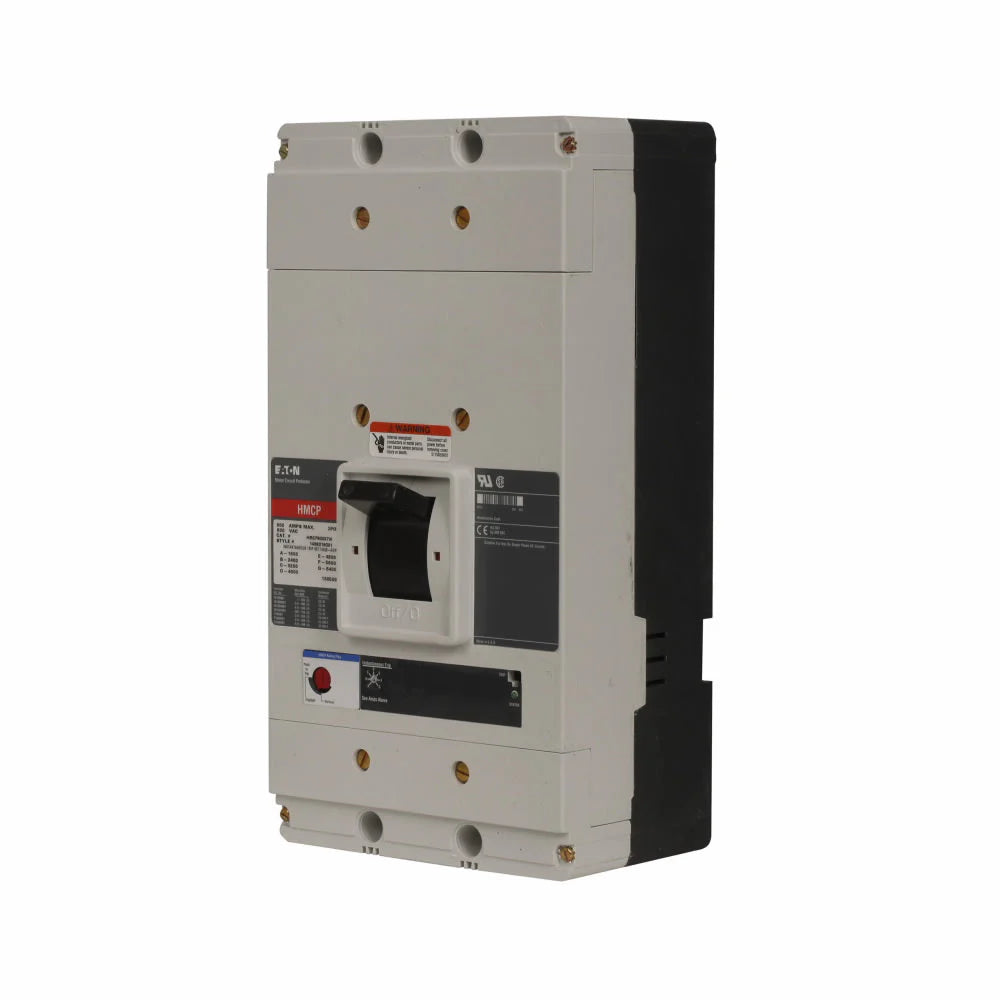

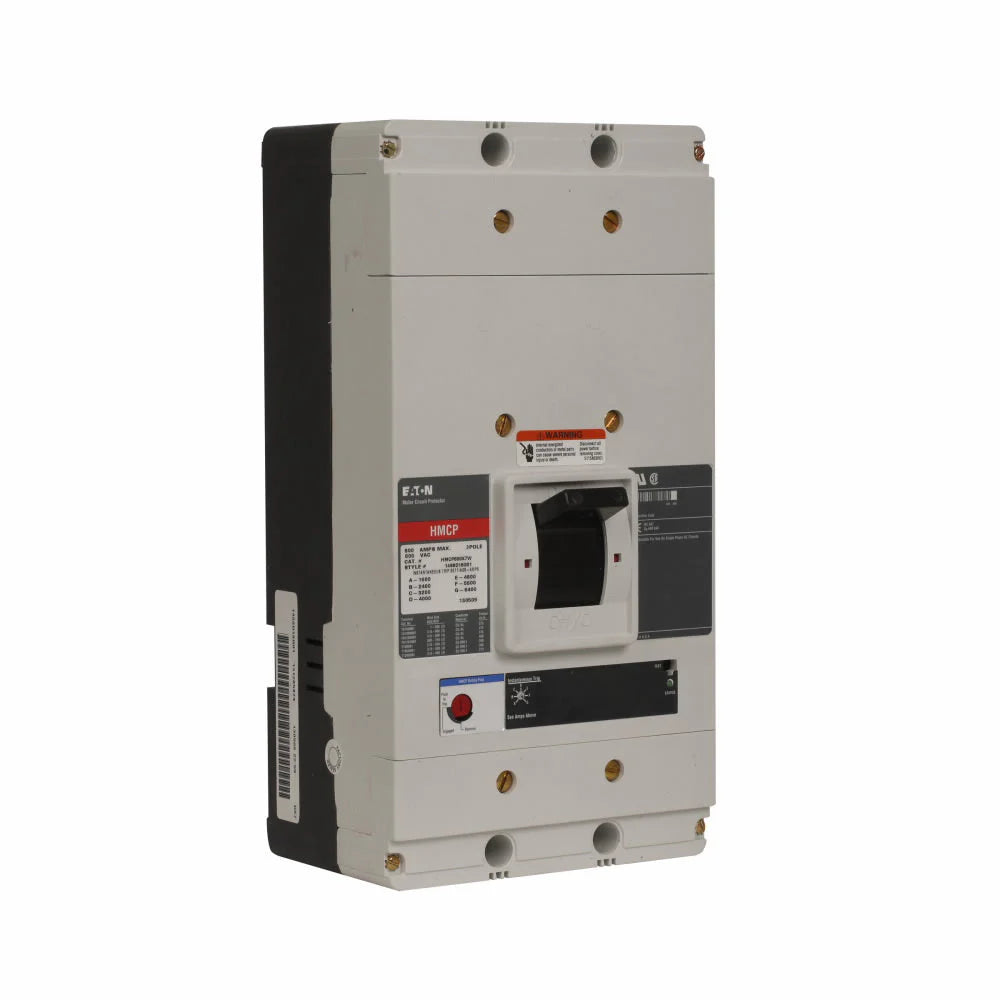

Eaton HMCP800X7 800 Amp Motor Circuit Protector – 3 Pole – 600 V – 50 kAIC@480 V – Magnetic-Only – Bolt-On – Series C

The Eaton HMCP800X7 is an 800 Amp, 3-pole, 3-phase motor circuit protector from the Eaton / Cutler-Hammer / Westinghouse Series C, Type HMCP, N-frame product range. It is rated for 600 V and provides a 50 kA interrupting rating at 480 V. This magnetic-only molded case circuit breaker provides instantaneous protection with a magnetic adjustment range of 1600–6400 A.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer / Eaton / Westinghouse
• Product Type: Motor Circuit Protector (MCP)
• Series: Series C
• Type: HMCP
• Frame: N Frame
• Catalog Number / MPN: HMCP800X7
• Primary Rating: 800 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 50 kAIC @ 480 V
• Trip Type: Magnetic Only
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 1600–6400 A
• Connection / Mounting: Bolt-On

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer / Eaton / Westinghouse
• Catalog Number: HMCP800X7
• Series: Series C
• Type: HMCP
• Frame: N Frame
• Current Rating: 800 A
• Pole Count: 3 Pole
• Product Type: Magnetic-Only Motor Circuit Protector
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 1600–6400 A
• Connection: Bolt-On
• UPC:782114410647

Compatibility

The Eaton HMCP800X7 is intended for compatible Eaton / Cutler-Hammer Series C N-frame motor control and motor starter applications.
