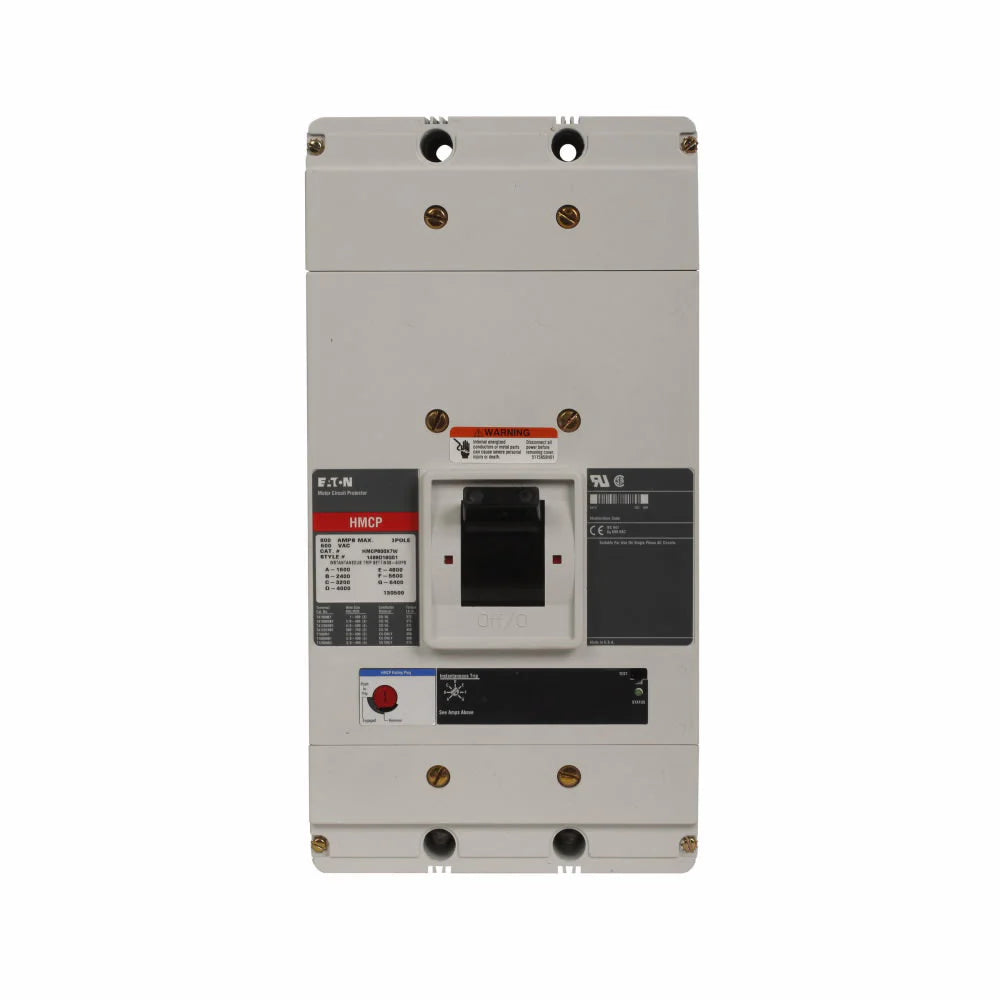

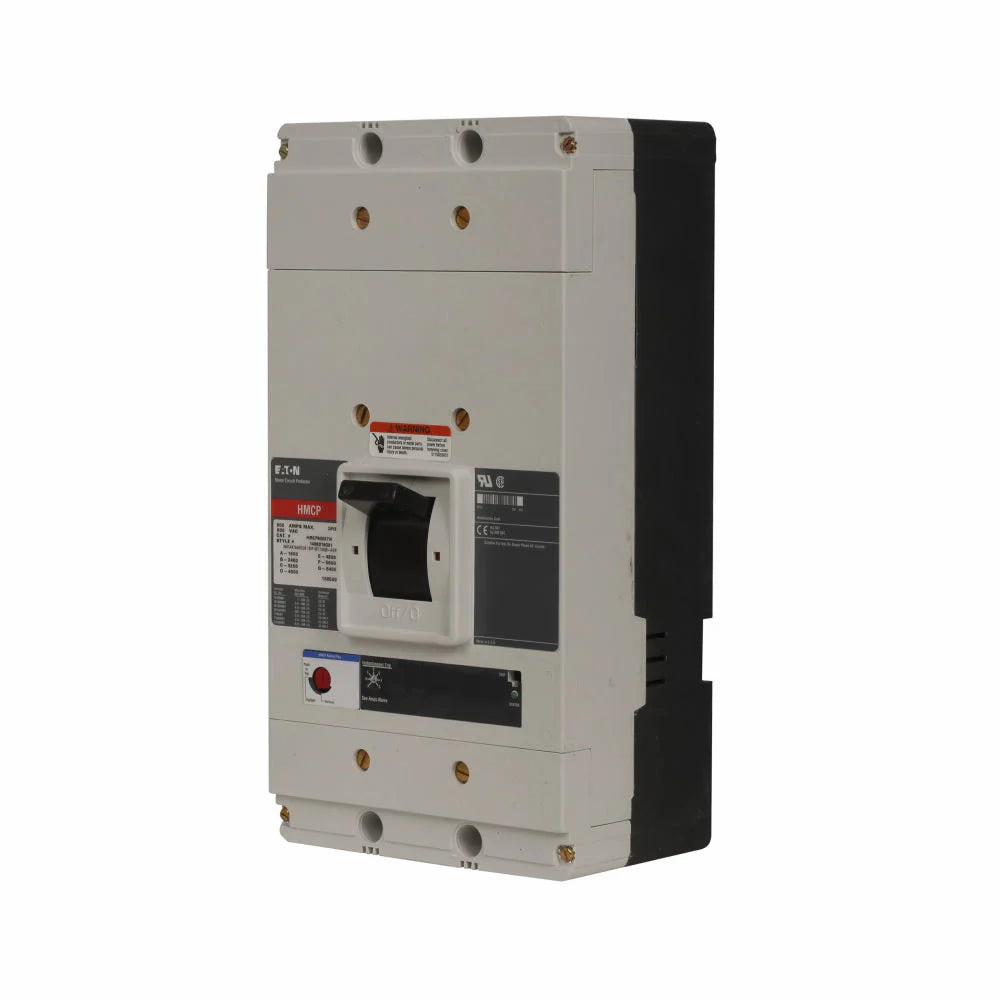

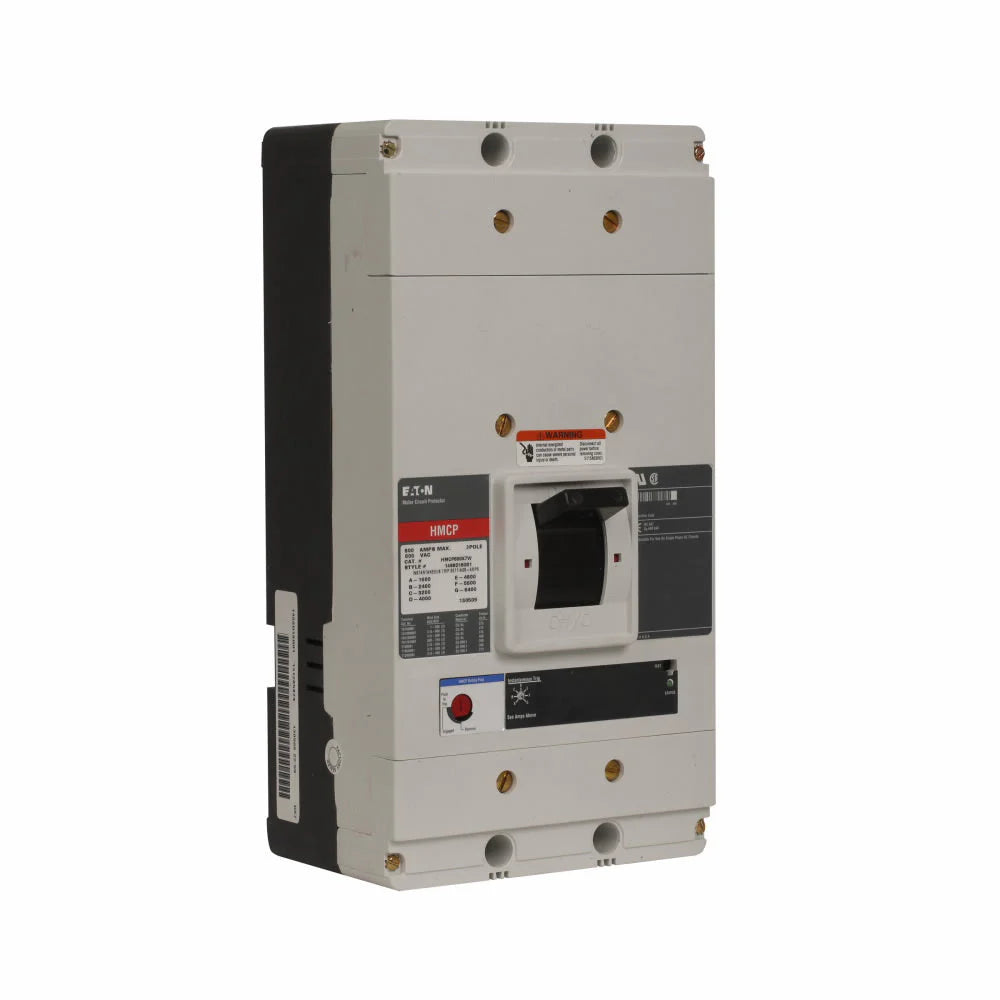

Eaton Cutler-Hammer HMCP800X7Y 800 Amp Motor Circuit Protector – 3 Pole – 600V – 50 kAIC at 480V – Series C

The Eaton Cutler-Hammer HMCP800X7Y is a Series C, Type HMCP magnetic-only motor circuit protector featuring an N-frame configuration and an 800 A rating. This three-pole, three-phase device provides instantaneous protection with a magnetic trip range of 1,600–6,400 A. It features bolt-on mounting.

Specifications

• Brand: Eaton / Cutler-Hammer / Westinghouse
• Catalog Number: HMCP800X7Y
• Product Type: Motor Circuit Protector (MCP)
• Series: Series C
• Type: HMCP
• Frame: N frame
• Rated Current: 800 A
• Poles: 3
• Phases: 3-phase
• Rated Voltage: 600 V
• Interrupting Capacity: 50 kAIC at 480 V
• Trip Type: Magnetic-only
• Protection Function: Instantaneous protection only
• Magnetic Trip Range: 1,600–6,400 A
• Mounting Type: Bolt-on

Part Numbers & Identification

• Manufacturer: Eaton
• Brand Families: Cutler-Hammer / Westinghouse
• Model / MPN: HMCP800X7Y
• Series Identification: Series C, Type HMCP
• Frame Identification: N frame
• Device Classification: Motor Circuit Protector (MCP)
• UPC:782114410646

Compatibility

Suitable for Eaton Series C N-frame motor control applications requiring an 800 A motor circuit protector with magnetic-only instantaneous protection and bolt-on mounting.
